WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

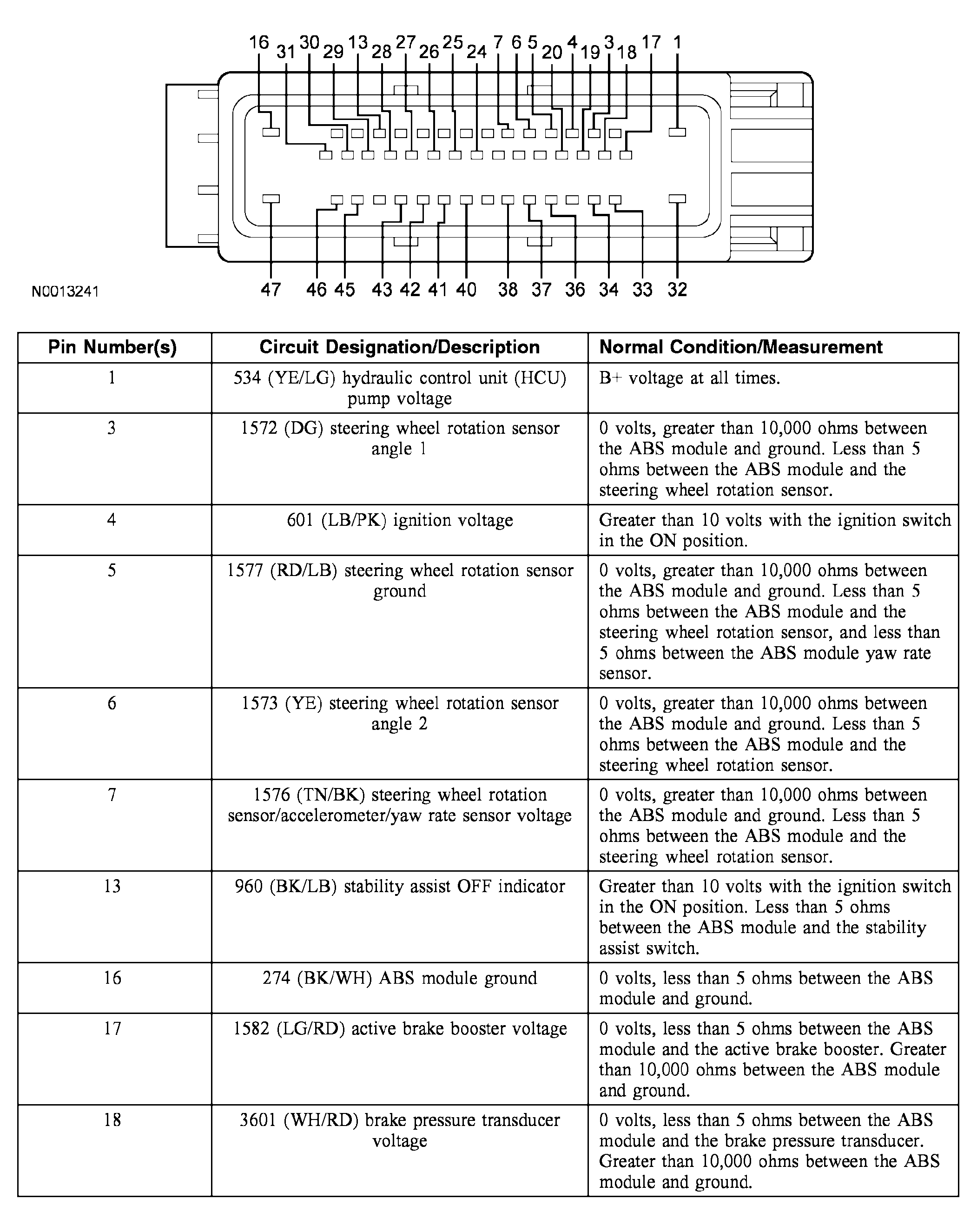

Fig 1: Anti-Lock Brake System (ABS) C155 - Connector Pinout (1 Of 4)
Courtesy of FORD MOTOR CO.

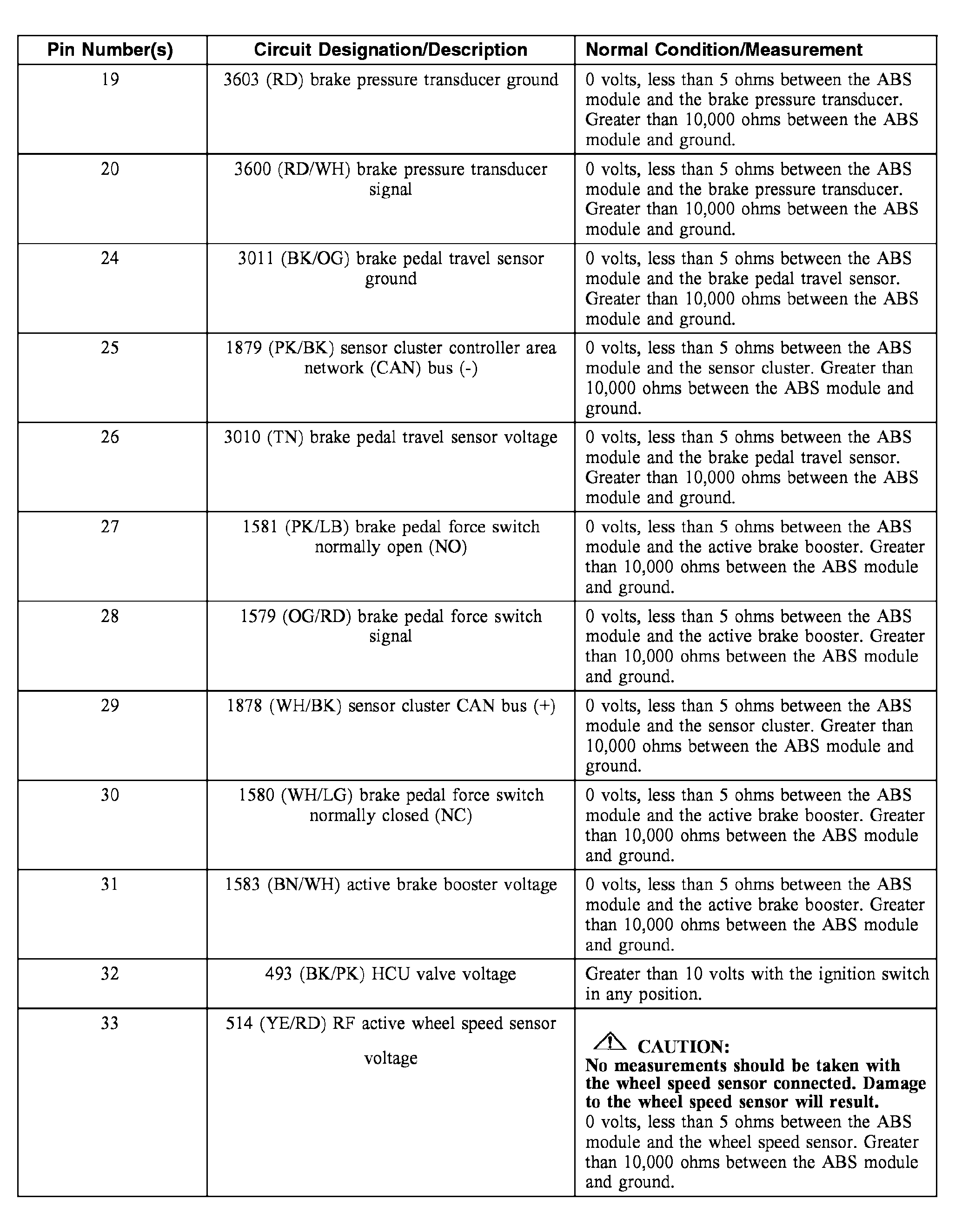

Fig 2: Anti-Lock Brake System (ABS) C155 - Connector Pinout (2 Of 4)
Courtesy of FORD MOTOR CO.

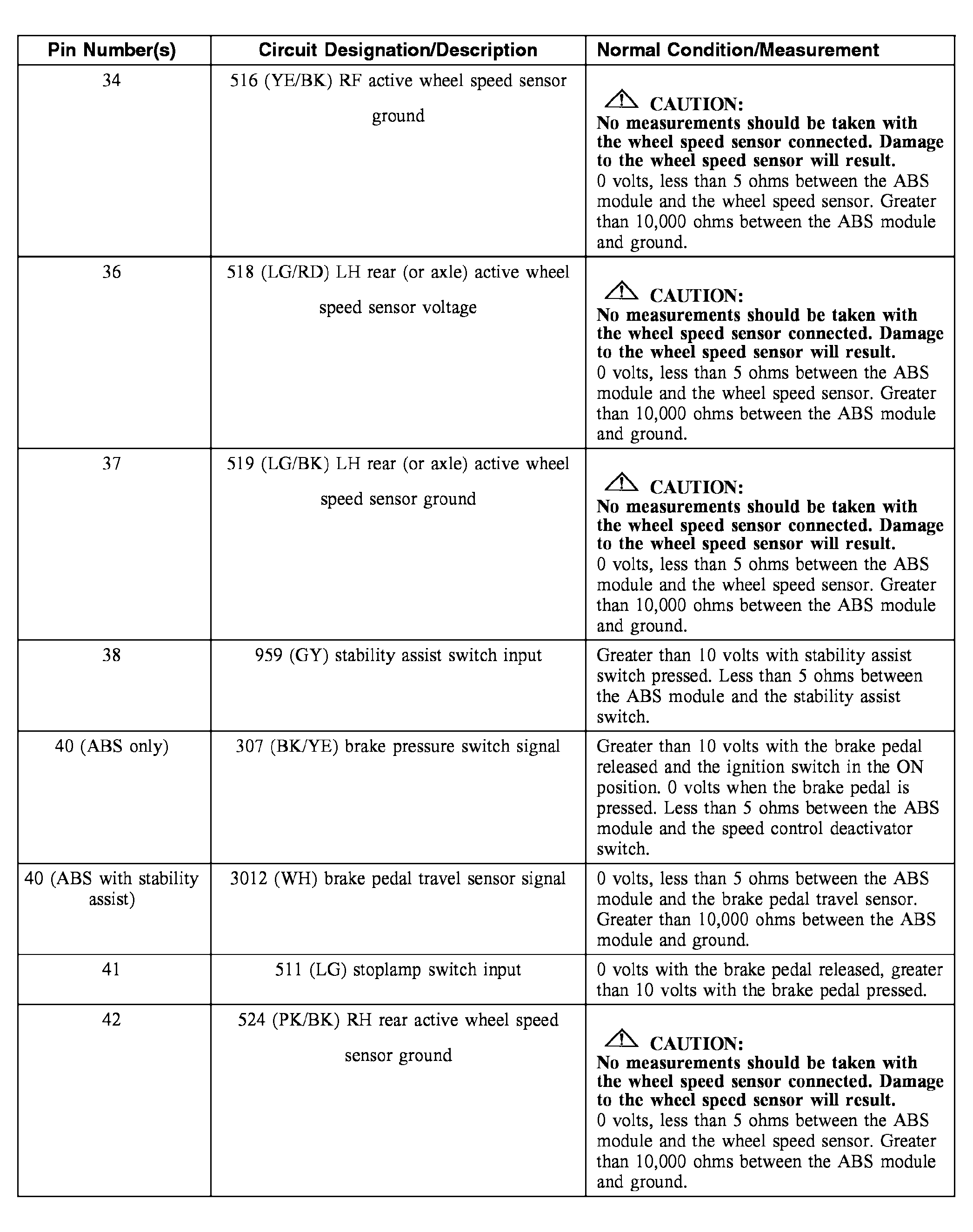

Fig 3: Anti-Lock Brake System (ABS) C155 - Connector Pinout (3 Of 4)
Courtesy of FORD MOTOR CO.

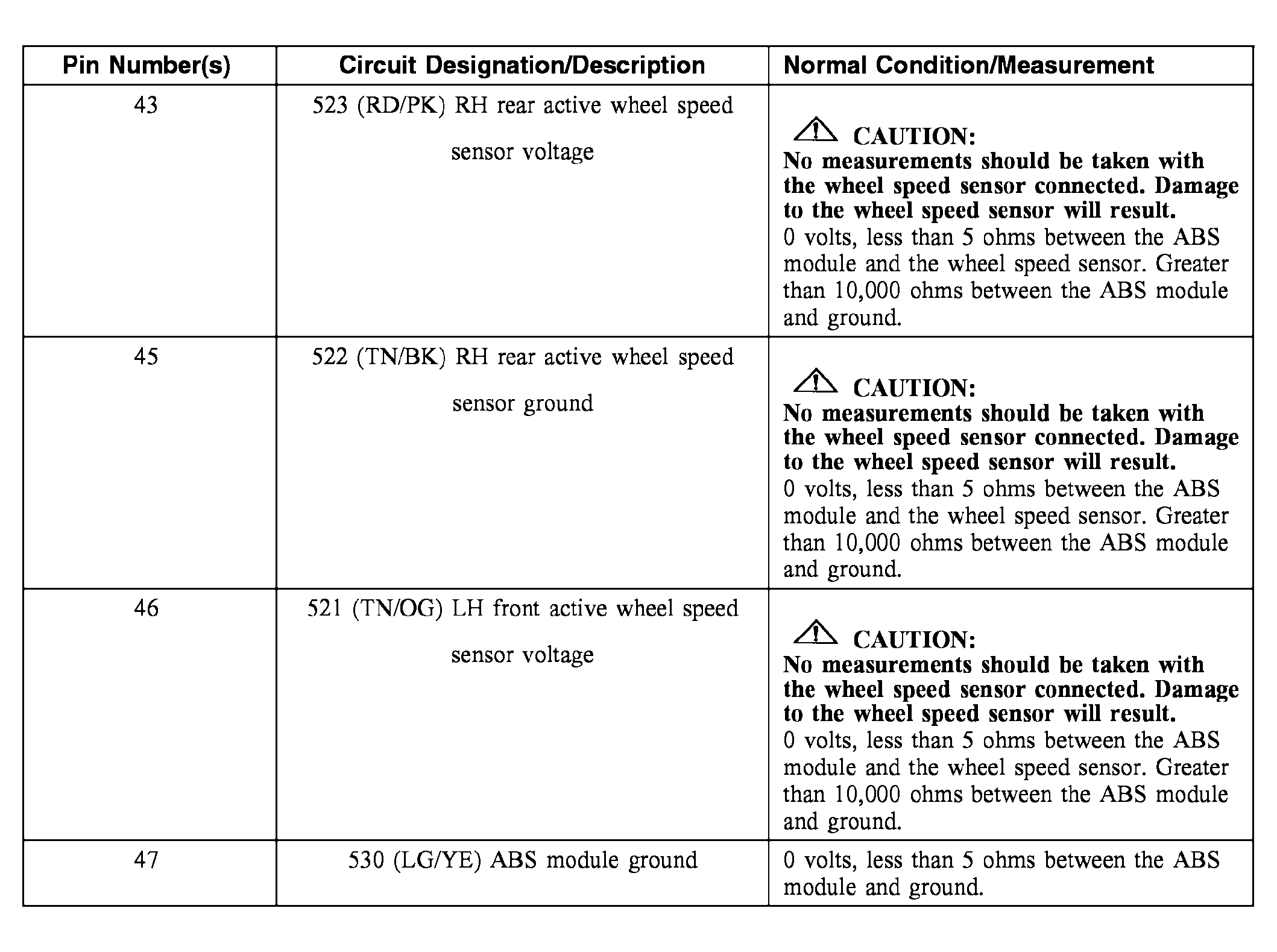

Fig 4: Anti-Lock Brake System (ABS) C155 - Connector Pinout (4 Of 4)
