Pinpoint Test C: The Transmission Control Switch Is Inoperative
WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

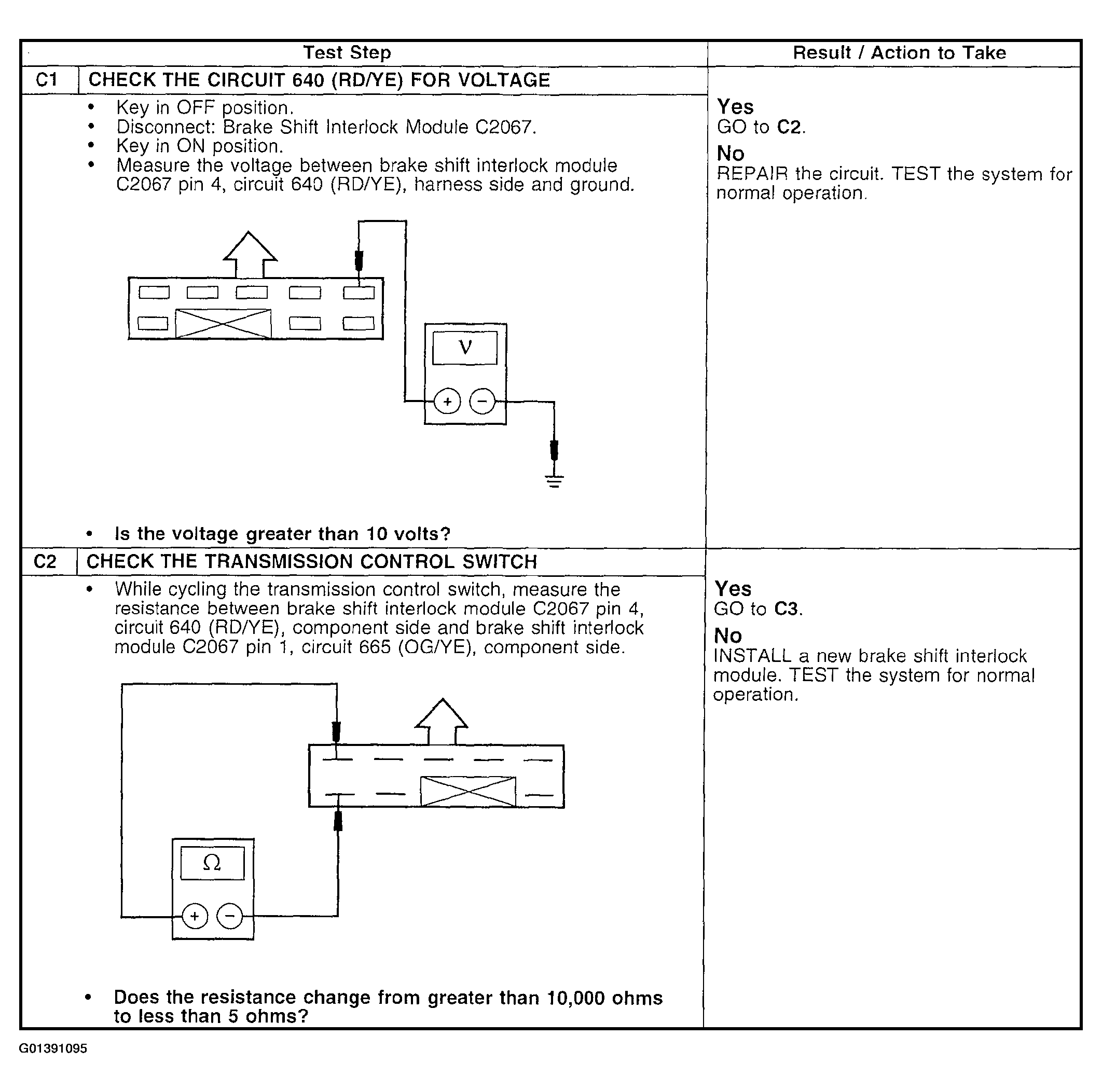

Fig 1: Pinpoint Test C: Transmission Control Switch Is Inoperative (Steps C1-C2)
Courtesy of FORD MOTOR CO.

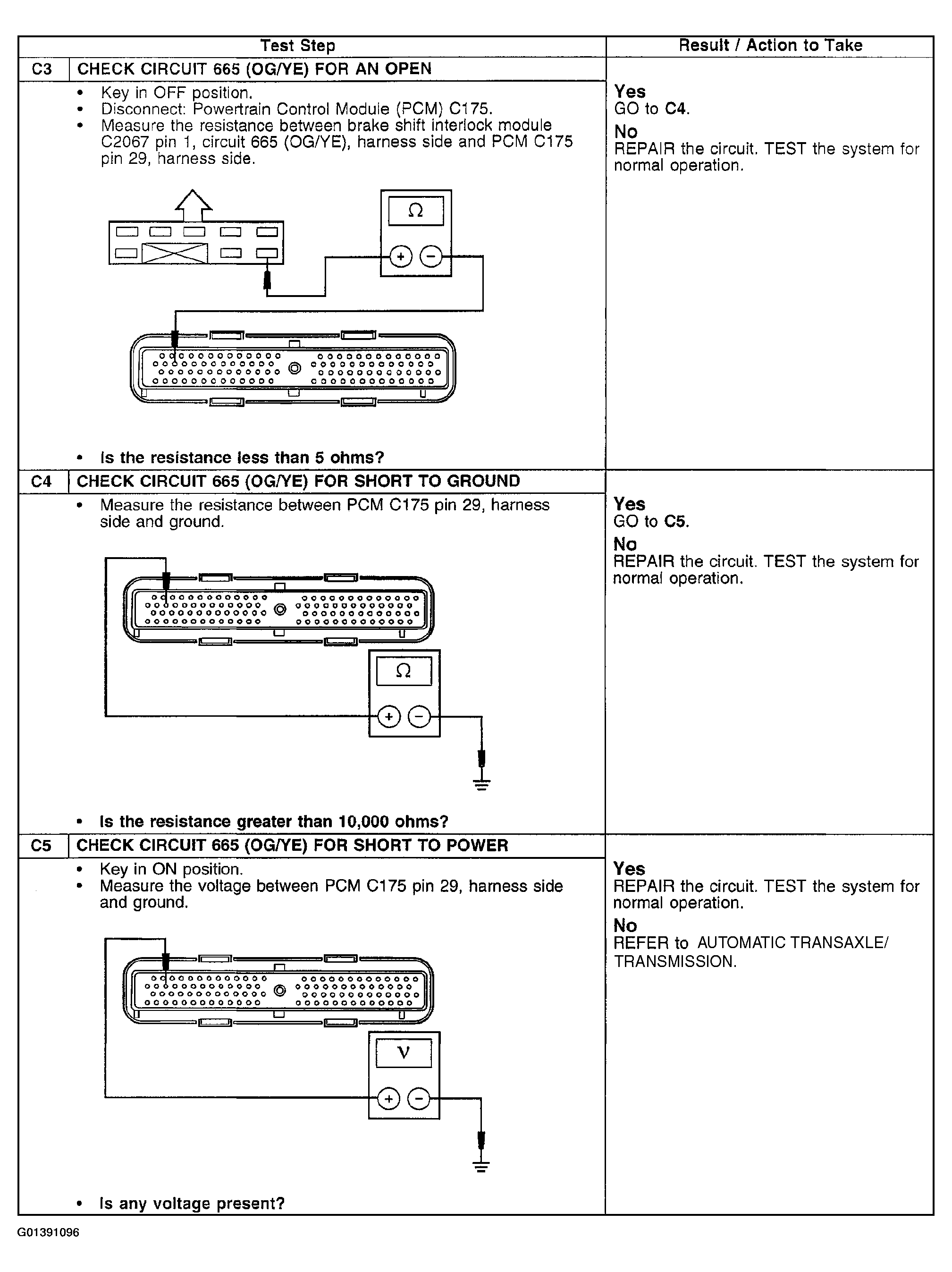

Fig 2: Pinpoint Test C: Transmission Control Switch Is Inoperative (Steps C3-C5)
