Driver Door Module (DDM) C501a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

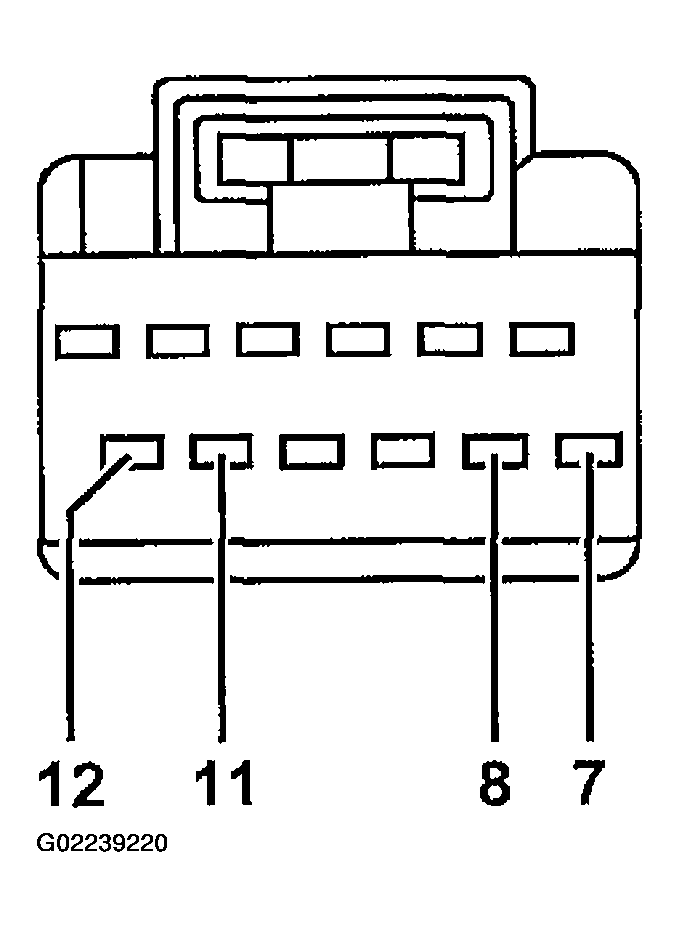

Fig 1: Driver Door Module (DDM) C501a Connector
G02239220Courtesy of FORD MOTOR CO.

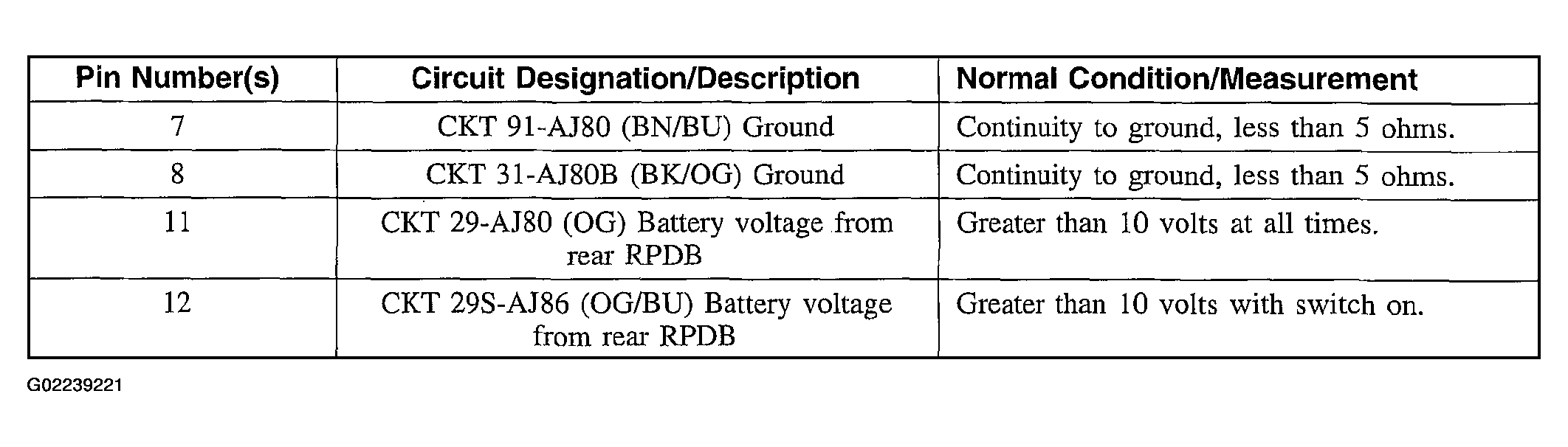

Fig 2: Measurement Specifications
G02239221Courtesy of FORD MOTOR CO.
