Retractor Box C218a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

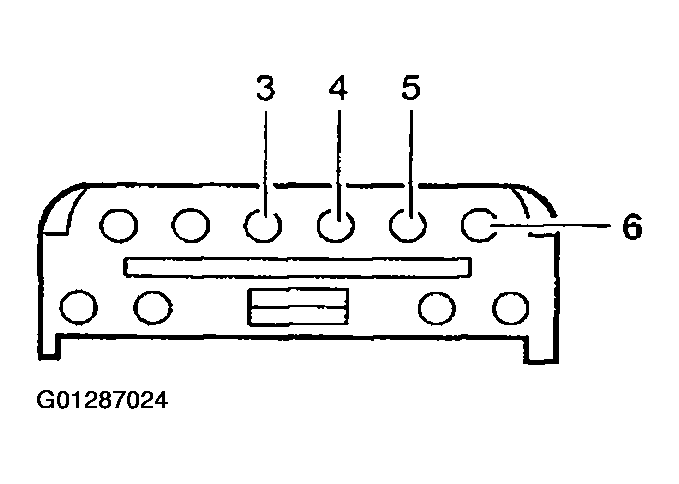

Fig 1: Identifying Retractor Box C218A
G01287024Courtesy of FORD MOTOR CO.

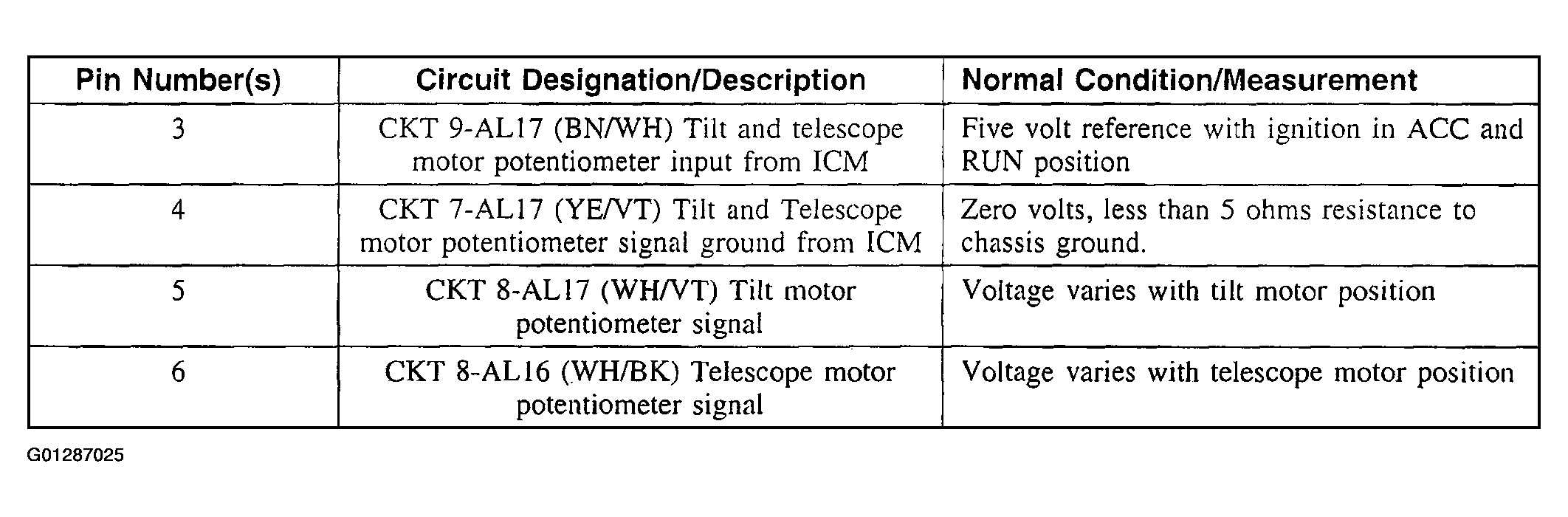

Fig 2: Retractor Box C218A Circuit Description Chart
G01287025Courtesy of FORD MOTOR CO.
