Pinpoint Test I: DTC B2328 - Steering Column Reach (Telescopic) Feedback Potentiometer Circuit Failure

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

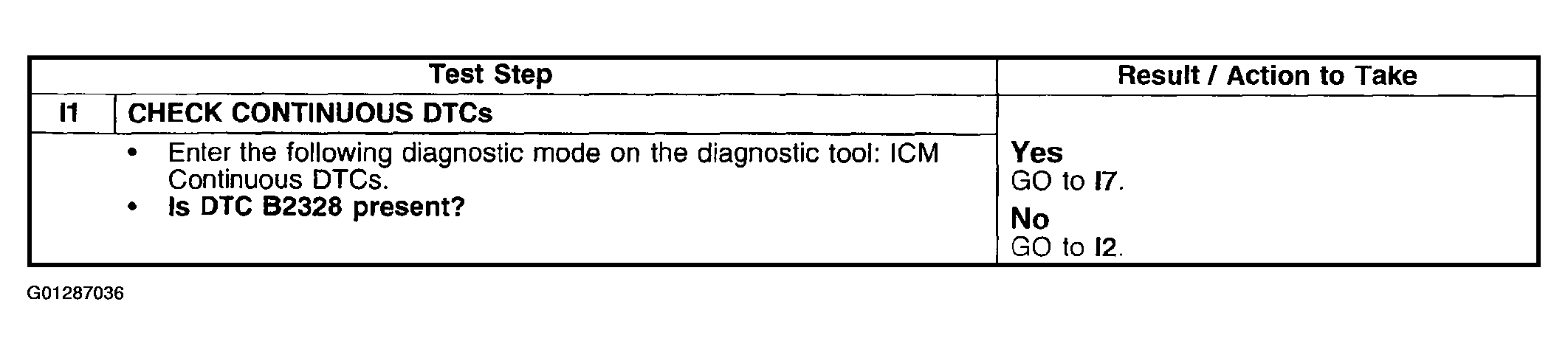

Fig 1: Pinpoint Test I: Steering Column Reach (Telescopic) Feedback Potentiometer Circuit Failure (Steps I1)

Courtesy of FORD MOTOR CO.

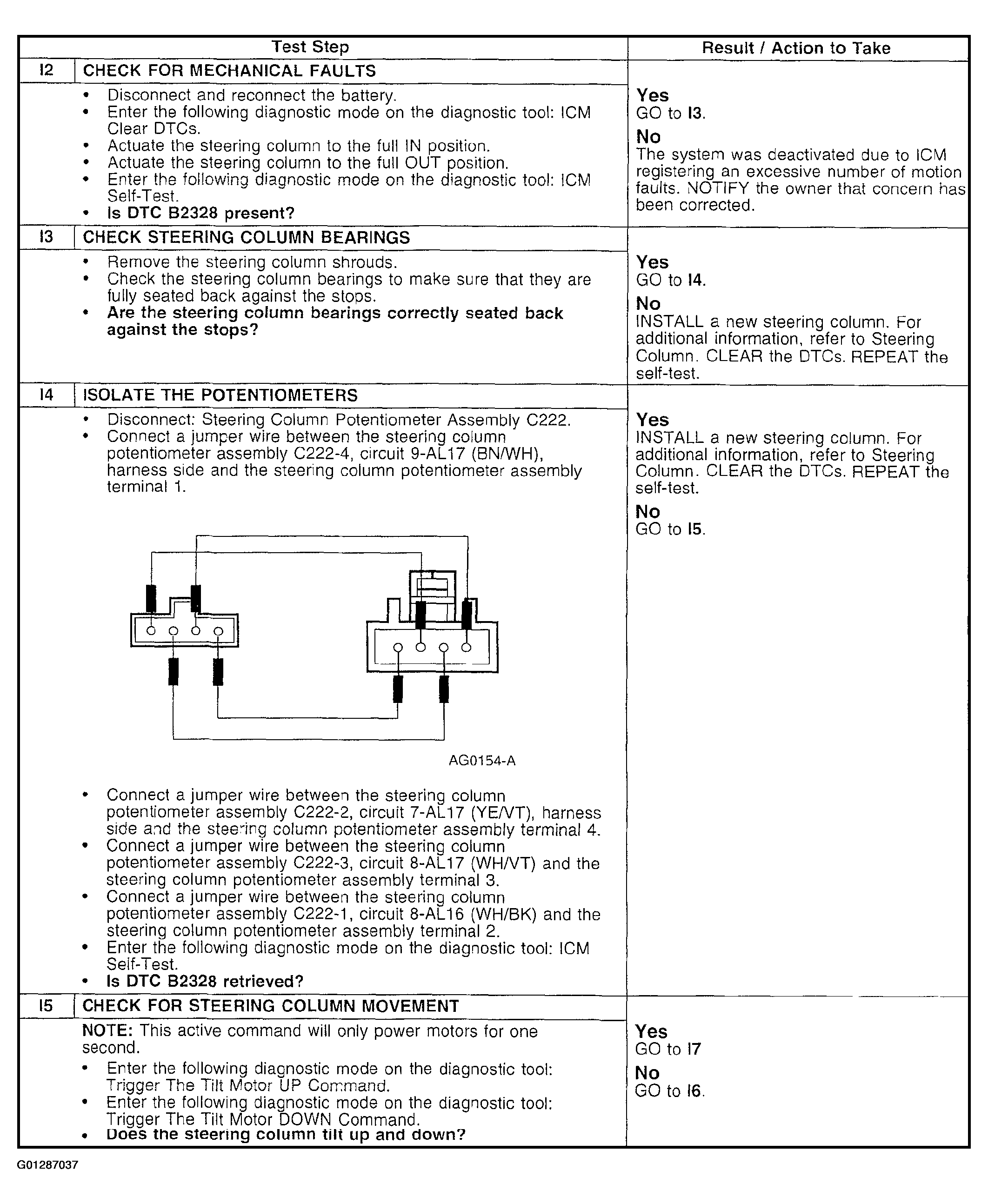

Fig 2: Pinpoint Test I: Steering Column Reach (Telescopic) Feedback Potentiometer Circuit Failure (Steps I2-I5)

Courtesy of FORD MOTOR CO.

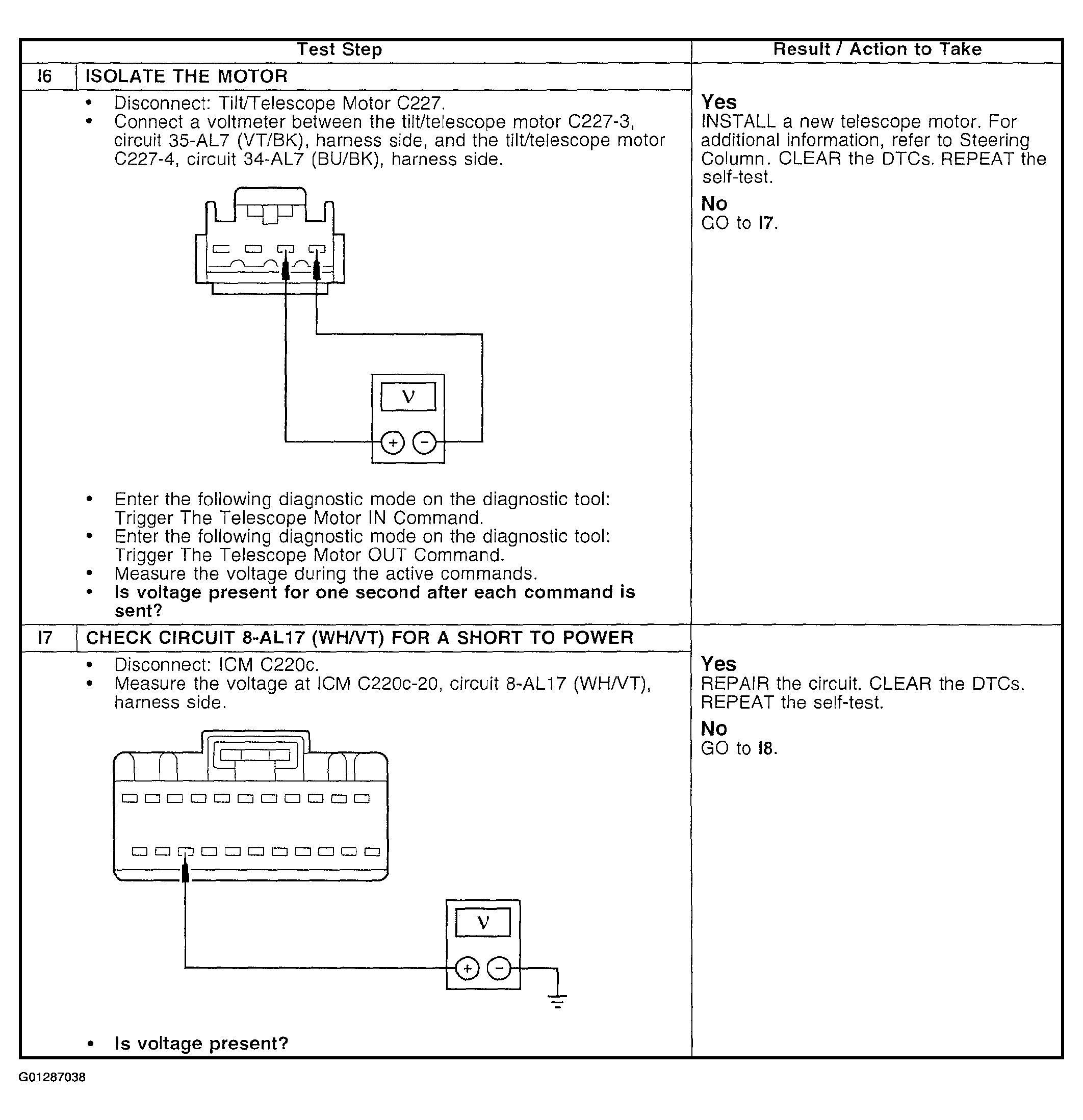

Fig 3: Pinpoint Test I: Steering Column Reach (Telescopic) Feedback Potentiometer Circuit Failure (Steps I6-I7)

Courtesy of FORD MOTOR CO.

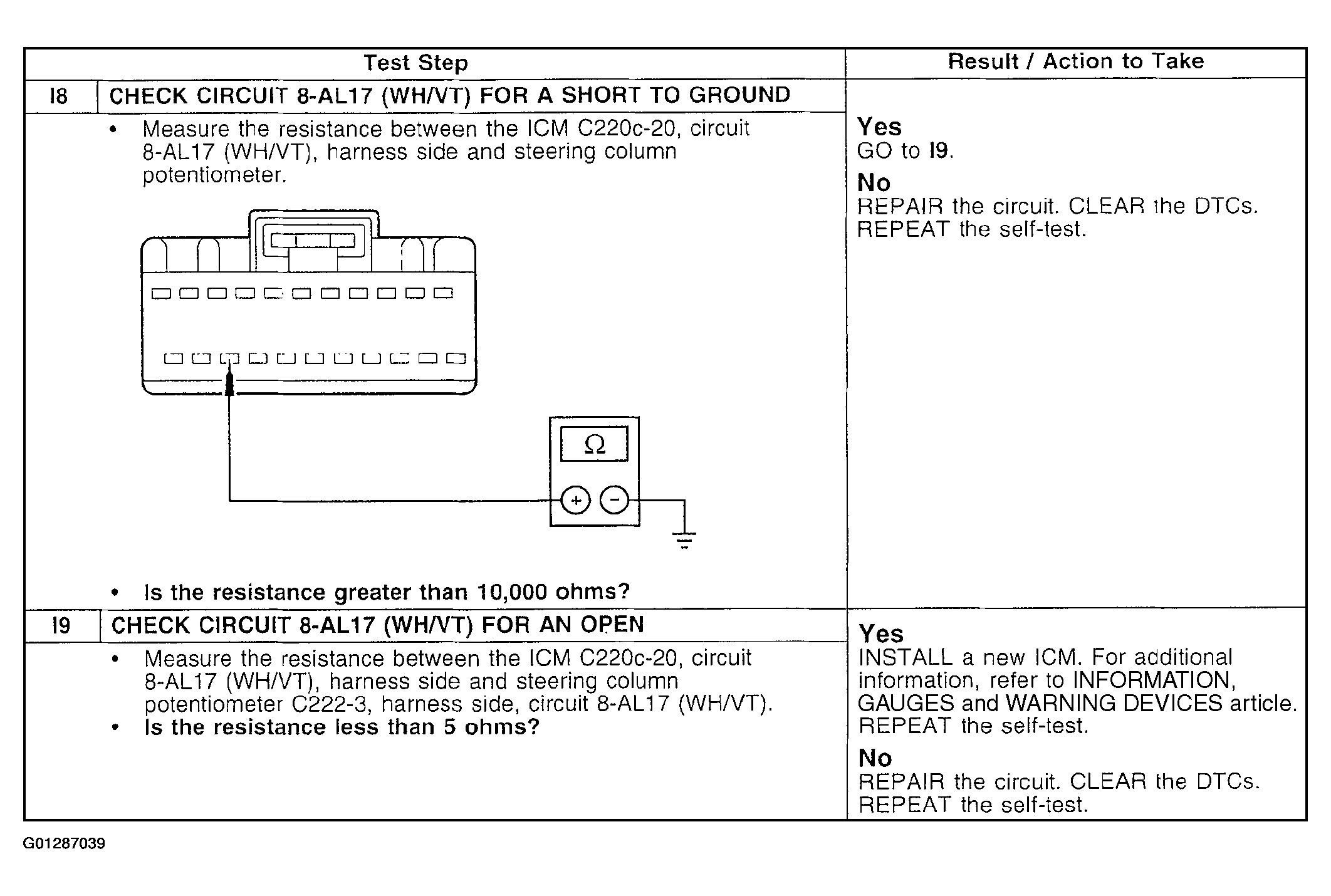

Fig 4: Pinpoint Test I: Steering Column Reach (Telescopic) Feedback Potentiometer Circuit Failure (Steps I8-I9)

Courtesy of FORD MOTOR CO.
