Cooling Fan Relay 1
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

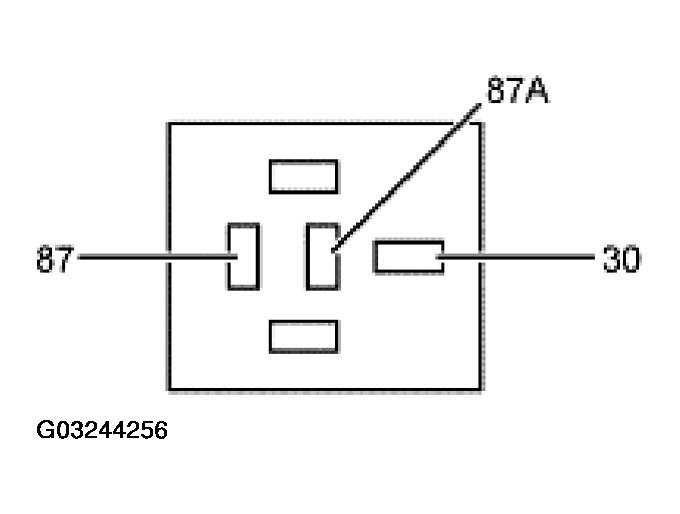

COOLING FAN RELAY 1 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 30 | CKT 1824 (LG/VT) cooling fan relay to fan motor | Less than 100 ohms to chassis ground. |
| 87 | CKT 1822 (LB) cooling fan relay voltage | Greater than 10 volts at all times. |
| 87A | CKT 1826 (YE/RD) cooling fan relay to cooling fan circuit breaker | 0 volts and greater than 10,000 ohms to chassis ground. |
