Cooling Fan Relay 2
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

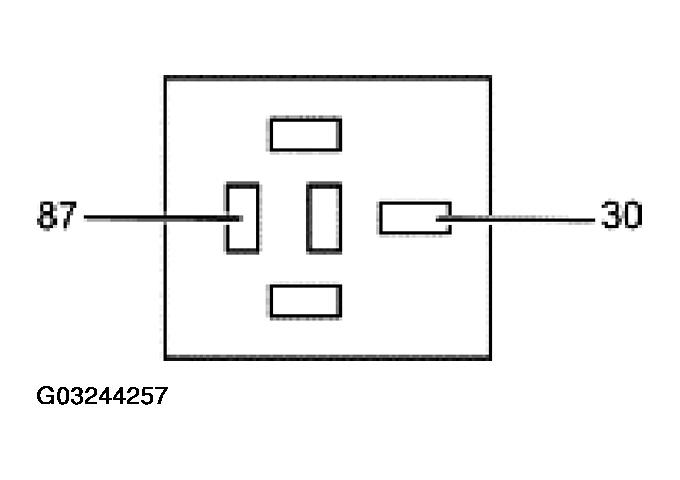

Courtesy of FORD MOTOR CO. COOLING FAN RELAY 2 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 30 |
CKT 1825 (LG/YE) cooling fan motor voltage |
Less than 100 ohms to chassis ground. |
| 87 |
CKT 1823 (YE/BK) cooling fan relay voltage |
Greater than 10 volts at all times. |
