Driver Heated Seat Module C359
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

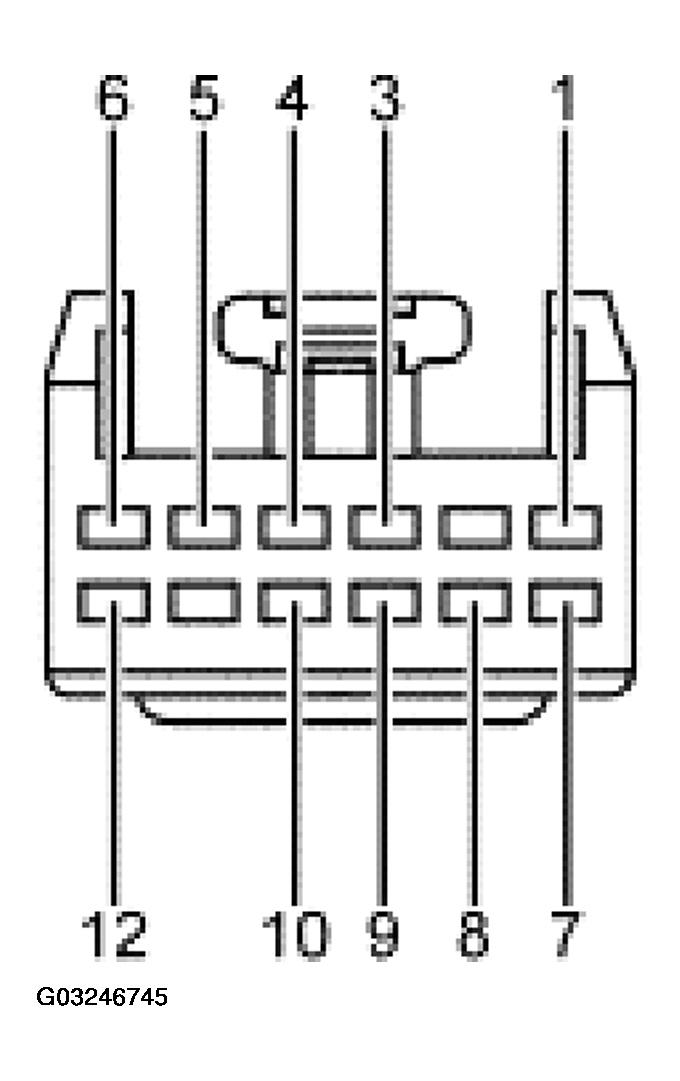

DRIVER HEATED SEAT MODULE C359 PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 1205 (BK) Ground | Continuity to ground, less than 5 ohms. |
| 3 | CKT 1061 (BN/LB) Heated seat cushion temperature sensor return | Continuity to seat cushion heater, less than 5 ohms. |
| 4 | CKT 1060 (BK/LB) Heated seat cushion temperature sensor feed | Continuity to seat cushion heater, less than 5 ohms. |
| 5 | CKT 294 (WH/LB) Ignition voltage from SJB | Greater than 10 volts when ignition is ON. |
| 6 | CKT 1064 (YE/LB) Heated seat cushion element feed | Continuity to seat cushion heater, less than 5 ohms. |
| 7 | CKT 1067 (VT/LB) Heated seat cushion element return | Continuity from backrest element to heated seat module, less than 5 ohms. |
| 8 | CKT 1255 (WH/RD) High low and off circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 9 | CKT 2070 (GY/LB) Low indicator circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 10 | CKT 2069 (VT/LG) High indicator circuit from DATC to heated seat module | Continuity from heated seat switch, less than 5 ohms. |
| 12 | CKT 566 (DG) Battery voltage from BEC | Greater than 10 volts at all times. |
