Rear Auxiliary Climate Control Assembly
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

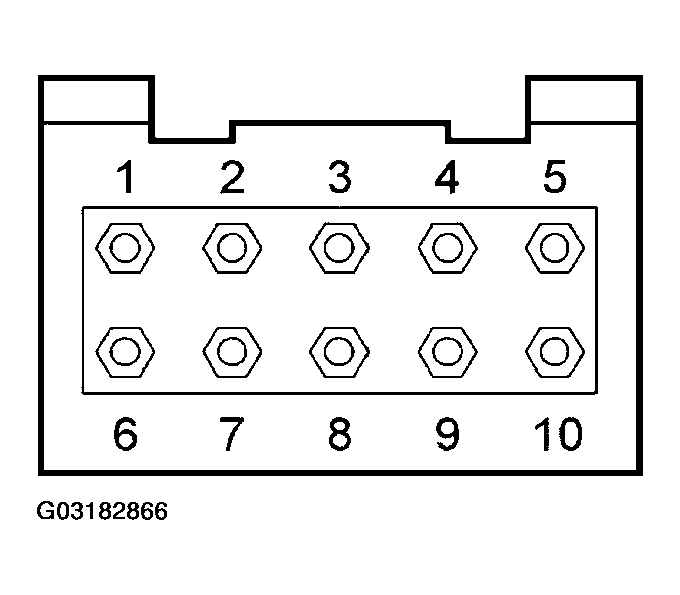

REAR AUXILIARY CLIMATE CONTROL ASSEMBLY CONTINUITY
| Airflow Mode | Continuity between pins |
|---|---|
| FLOOR | 4 and 9, 2 and 10 |
| PANEL | 4 and 10, 2 and 9 |
REAR AUXILIARY CLIMATE CONTROL ASSEMBLY RESISTANCE
| Resistance between pins | Resistance Range (approx.) |
|---|---|
| 3 and 9 | 50 ohms(WARM)-3,000 ohms (COOL) |
| 3 and 10 | 50 ohms(COOL)-3,000 ohms (WARM) |
