Possible Causes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

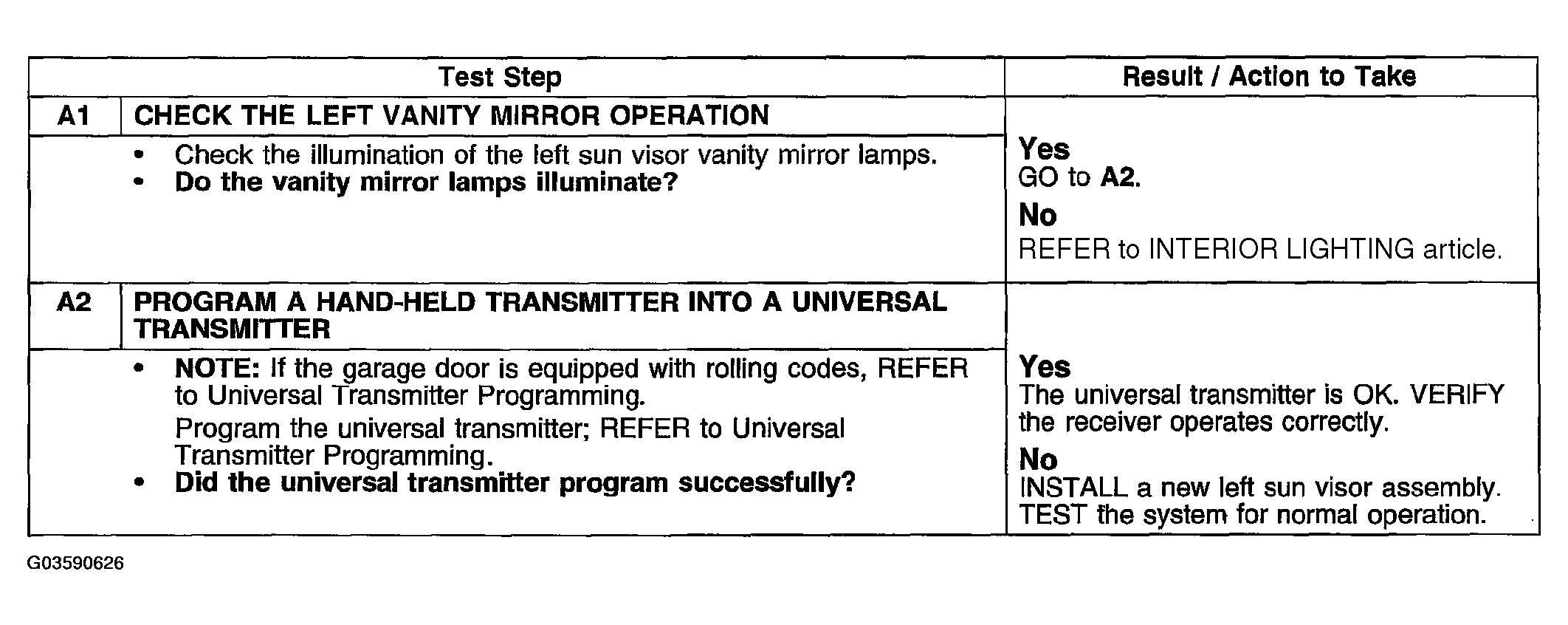

Fig 1: Pinpoint Test A: Universal Transmitter Is Inoperative (Step A1-A2)
G03590626Courtesy of FORD MOTOR CO.
