Pinpoint Test B: The Front Electronic Module (Fem) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

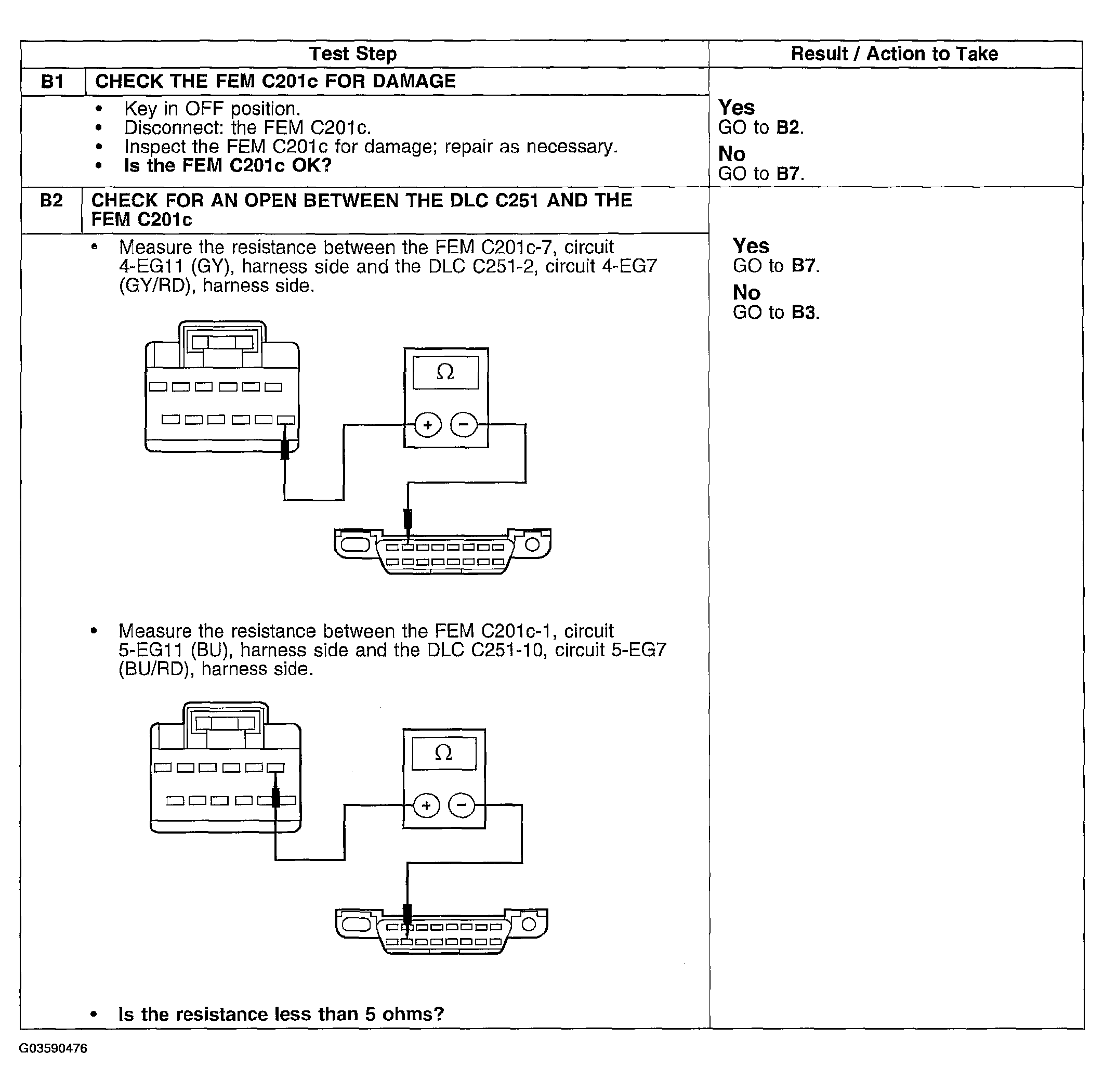

Fig 1: Pinpoint Test B: Front Electronic Module (FEM) Does Not Respond To Diagnostic Tool (Step B1)

Courtesy of FORD MOTOR CO.

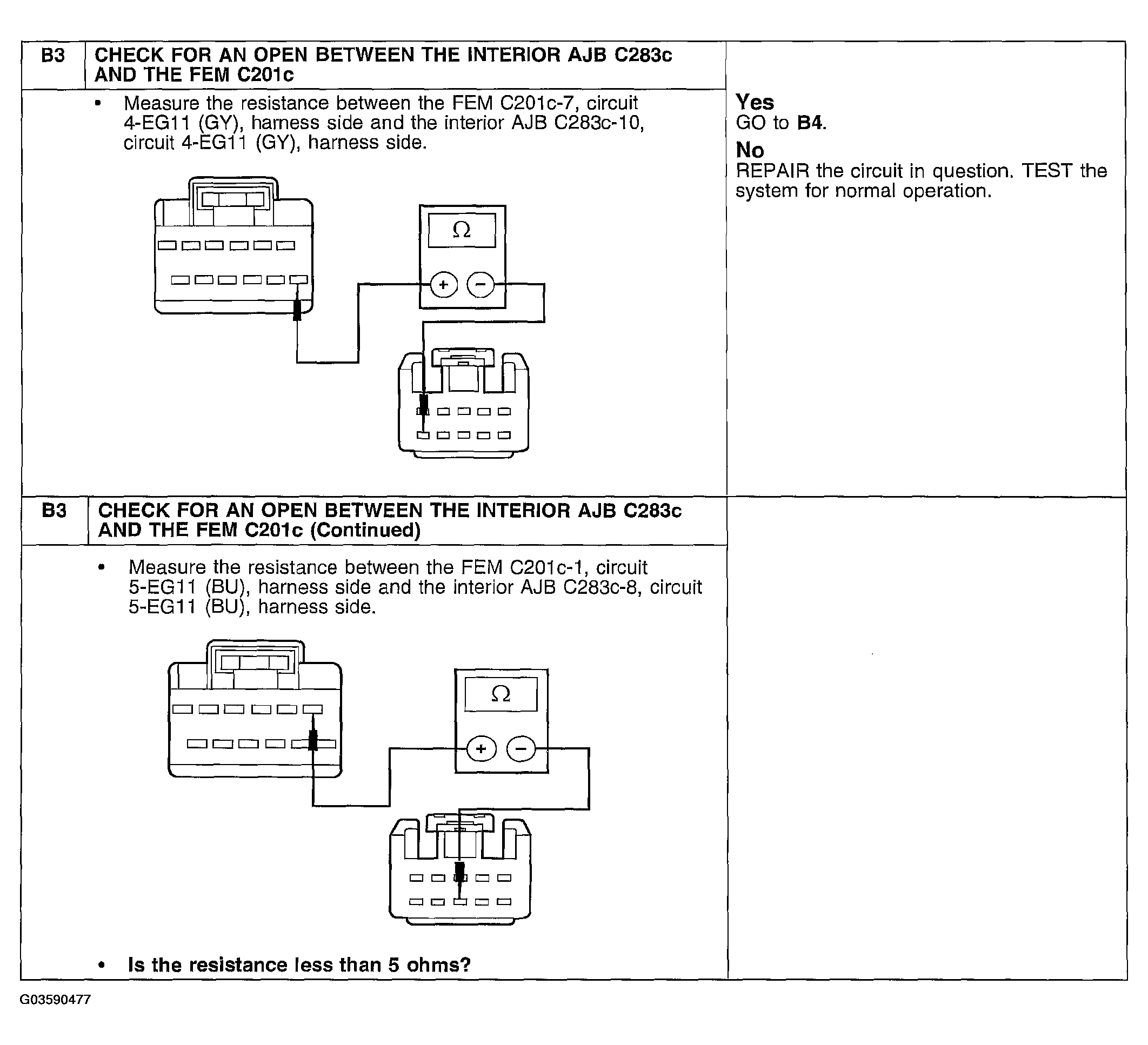

Fig 2: Pinpoint Test B: Front Electronic Module (FEM) Does Not Respond To Diagnostic Tool (Step B2 - B3)

Courtesy of FORD MOTOR CO.

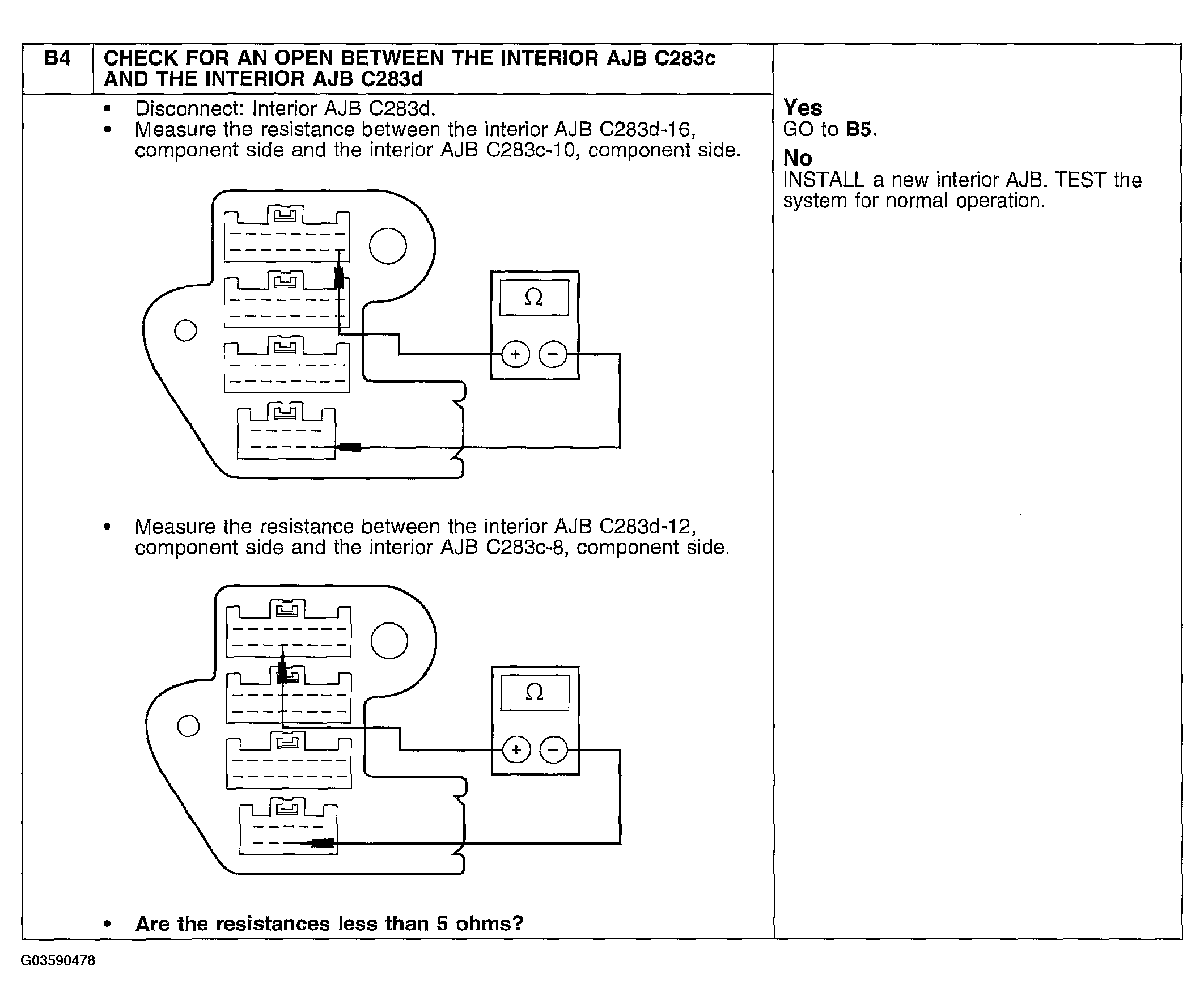

Fig 3: Pinpoint Test B: Front Electronic Module (FEM) Does Not Respond To Diagnostic Tool (Step B3 - B4)

Courtesy of FORD MOTOR CO.

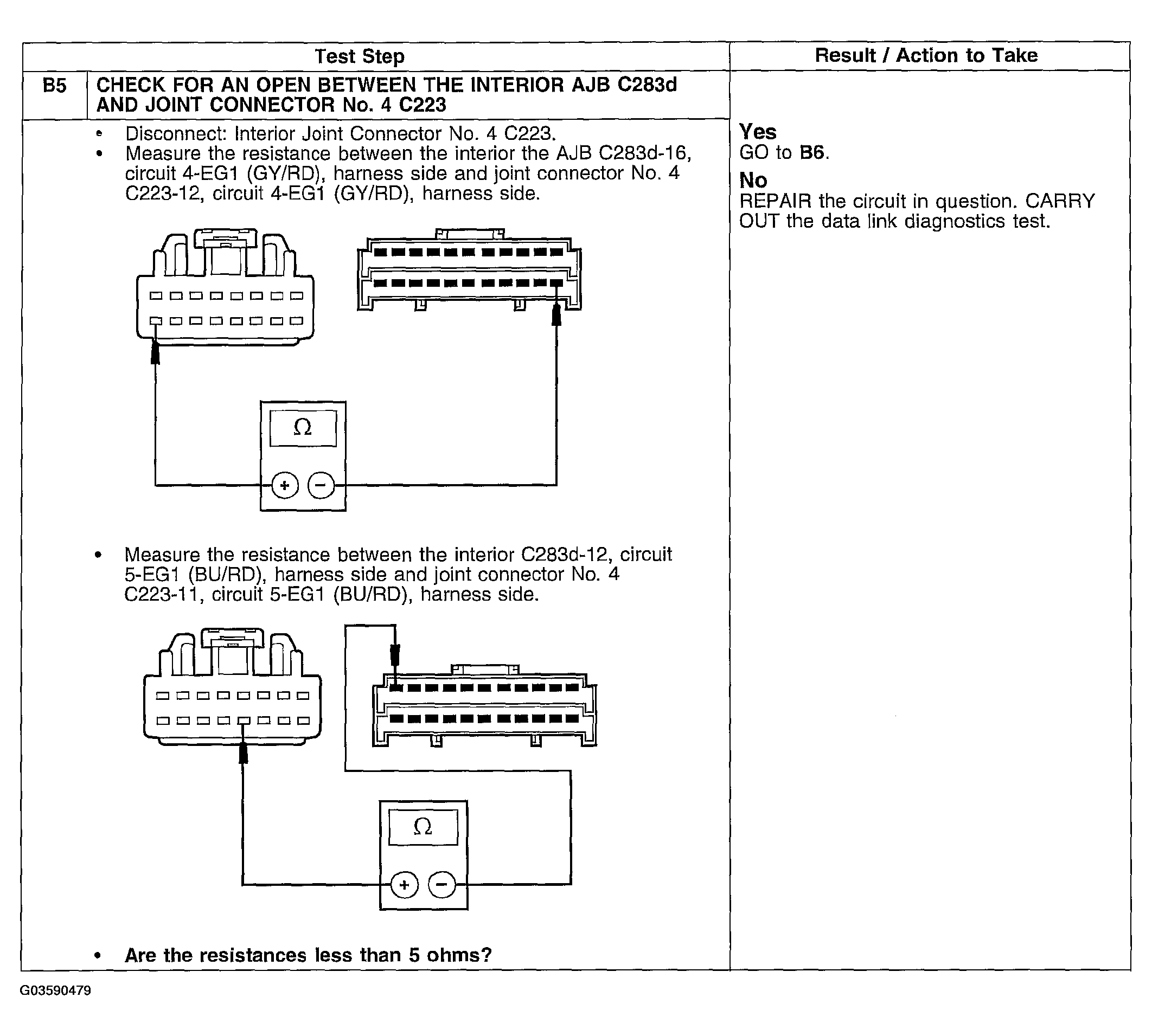

Fig 4: Pinpoint Test B: Front Electronic Module (FEM) Does Not Respond To Diagnostic Tool (Step B5 - B6)

Courtesy of FORD MOTOR CO.

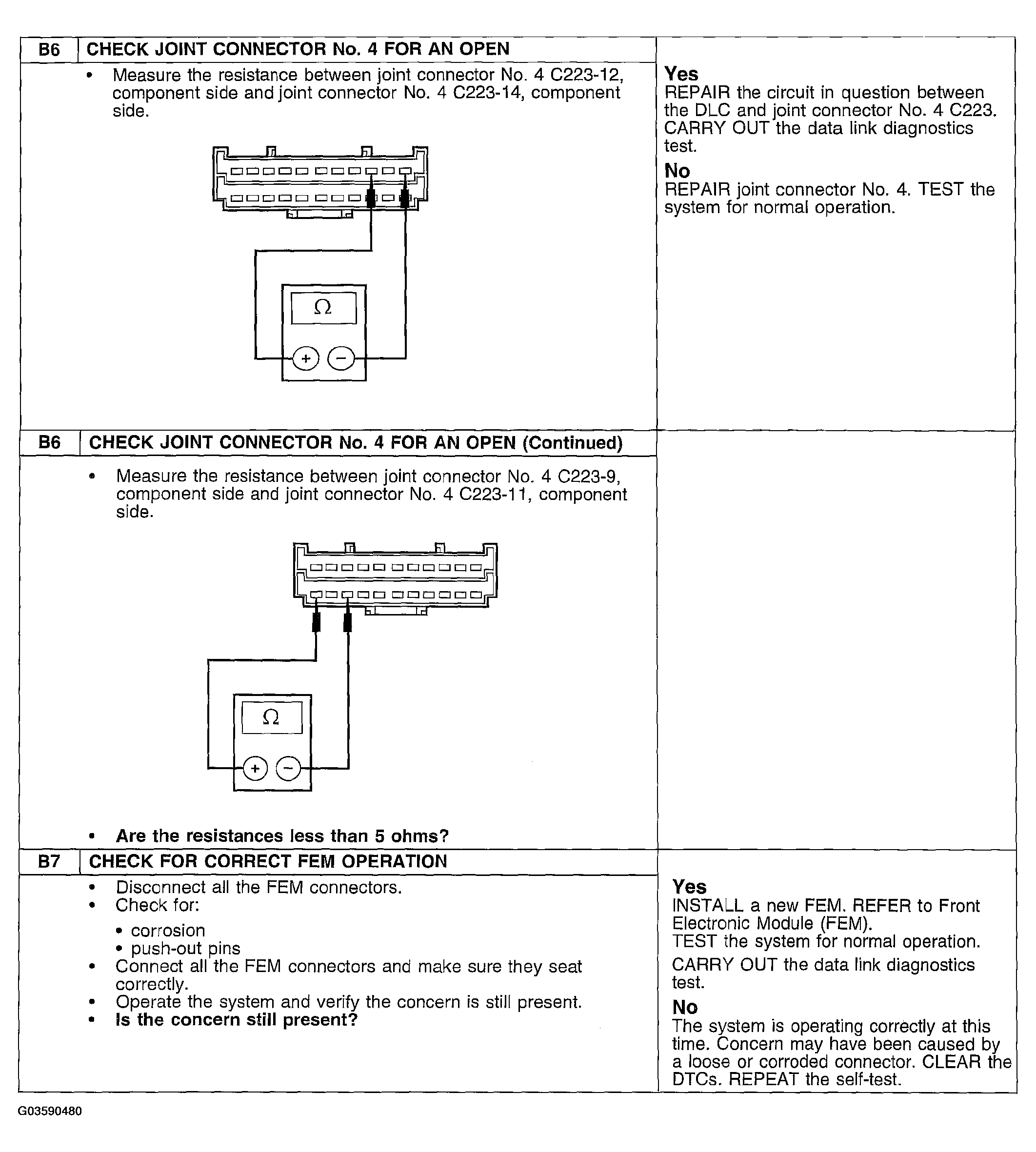

Fig 5: Pinpoint Test B: Front Electronic Module (FEM) Does Not Respond To Diagnostic Tool (Step B6 - B7)

Courtesy of FORD MOTOR CO.
