Pinpoint Test G: The Audio Control Module (ACM) Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

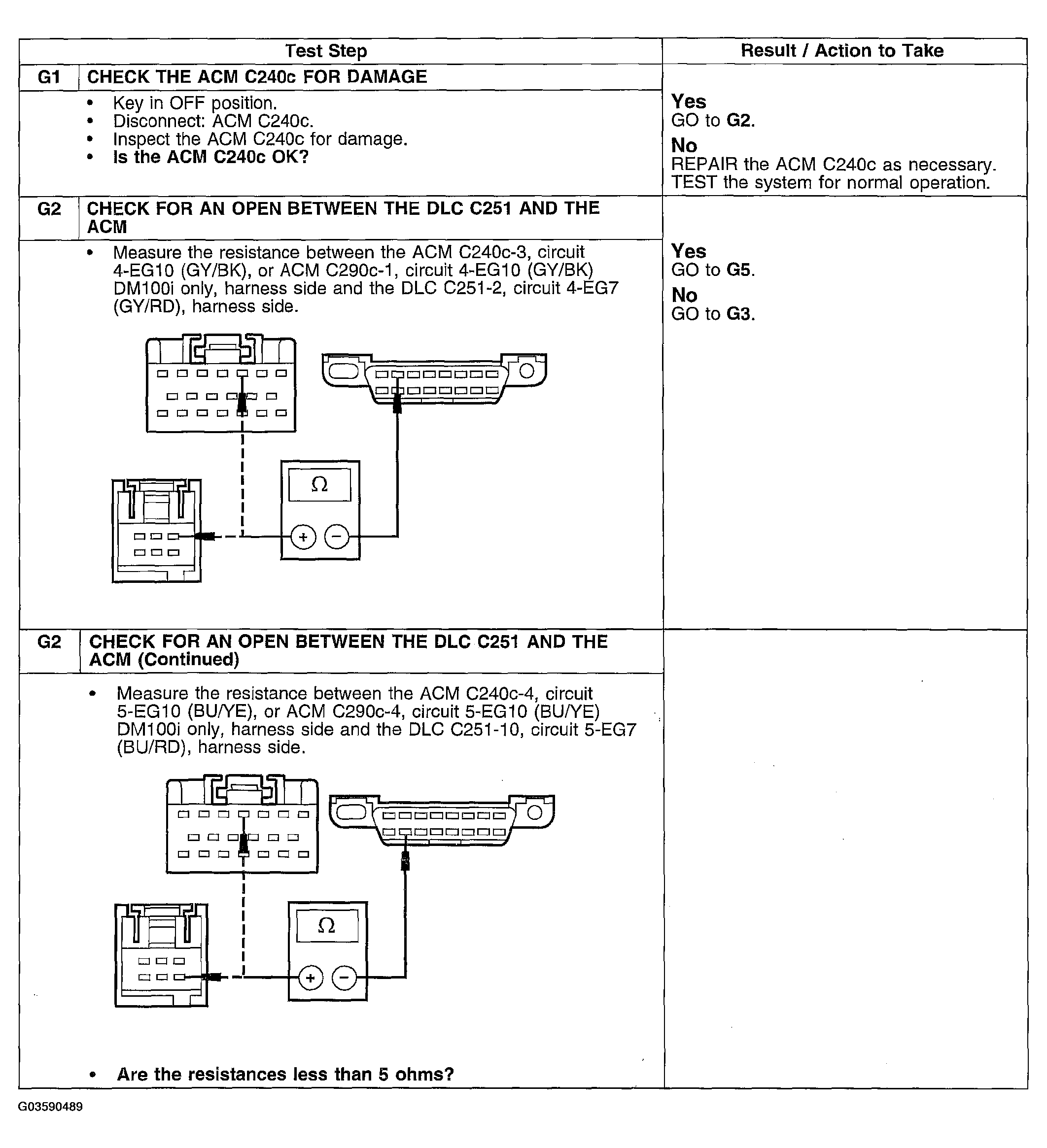

Fig 1: Pinpoint Test G: Audio Control Module (ACM) Does Not Respond To Diagnostic Tool (Step G1 - G2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test G: Audio Control Module (ACM) Does Not Respond To Diagnostic Tool (Step G2 - G3)

Courtesy of FORD MOTOR CO.

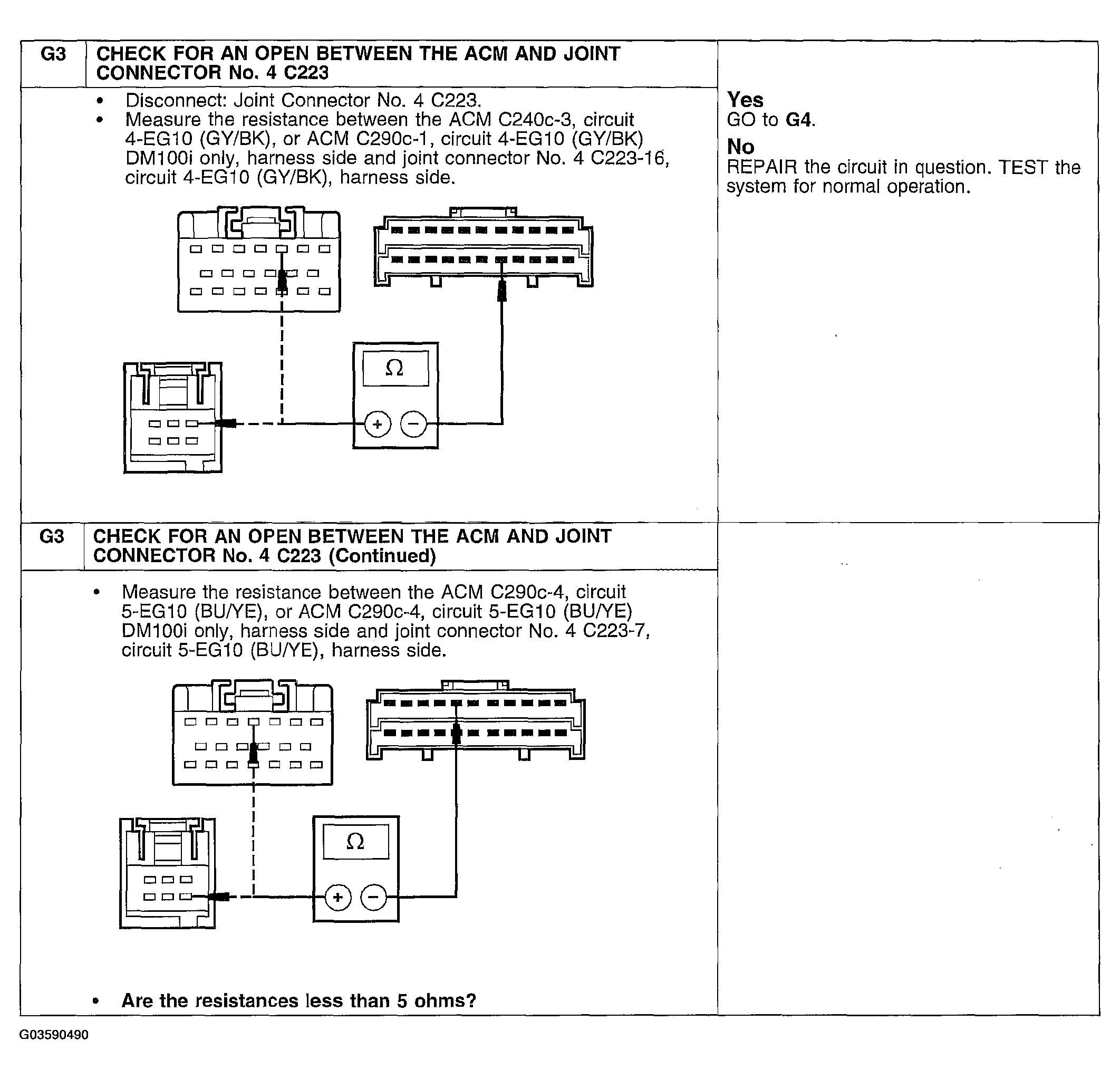

Fig 3: Pinpoint Test G: Audio Control Module (ACM) Does Not Respond To Diagnostic Tool (Step G3 - G4)

Courtesy of FORD MOTOR CO.
