Pinpoint Test R: The Electronic Parking Brake Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

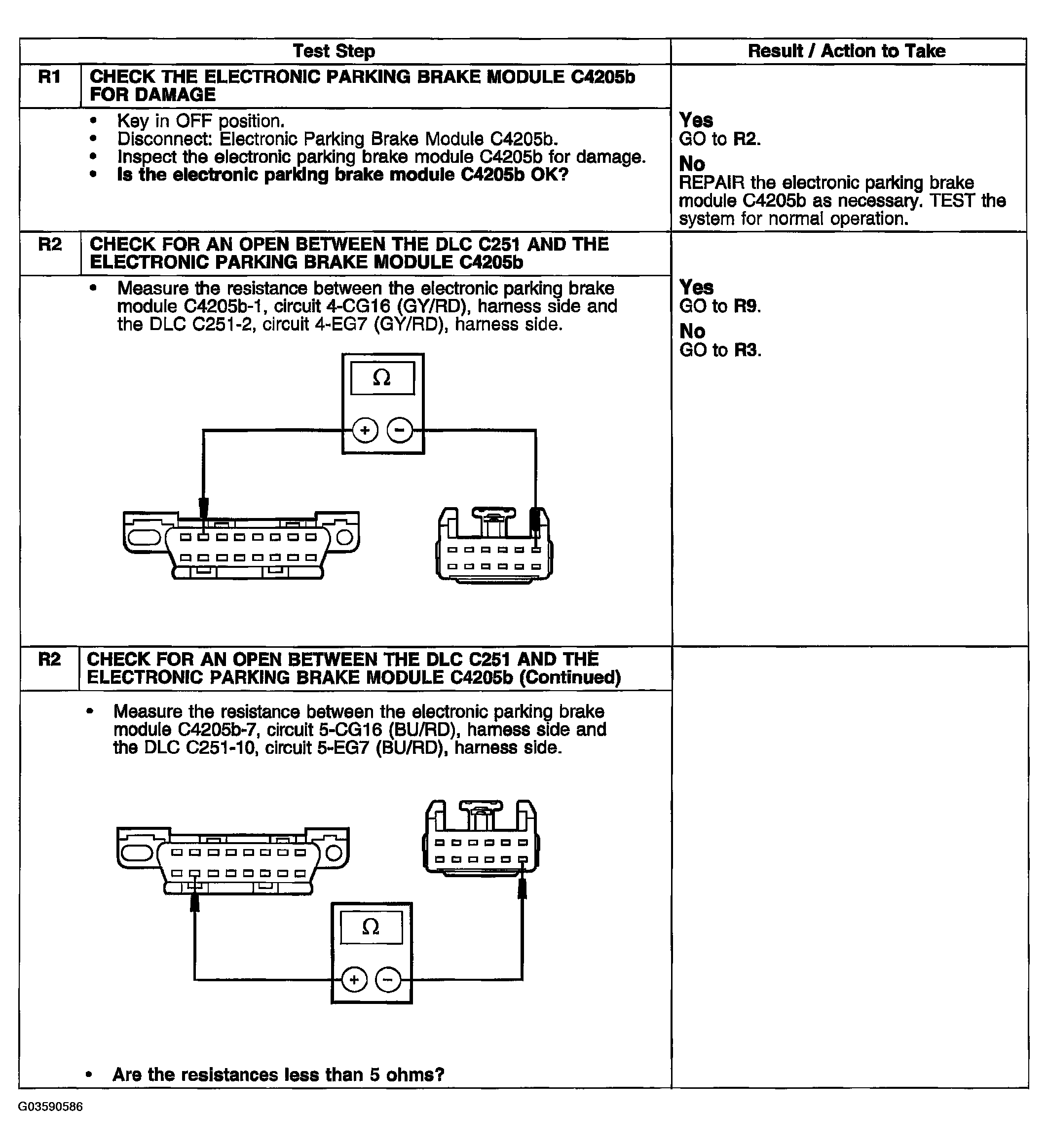

Fig 1: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R1 - R2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R2 - R3)

Courtesy of FORD MOTOR CO.

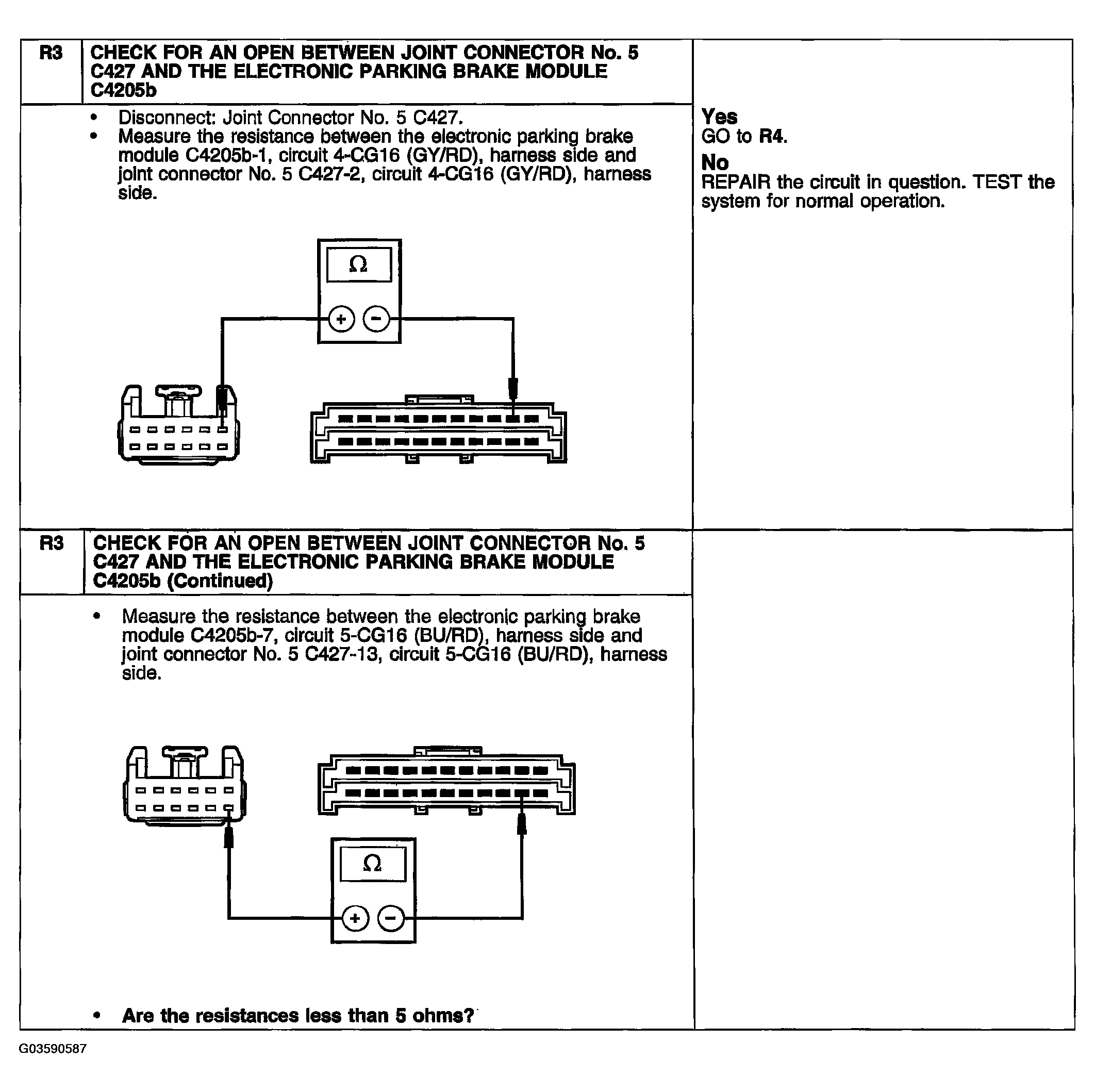

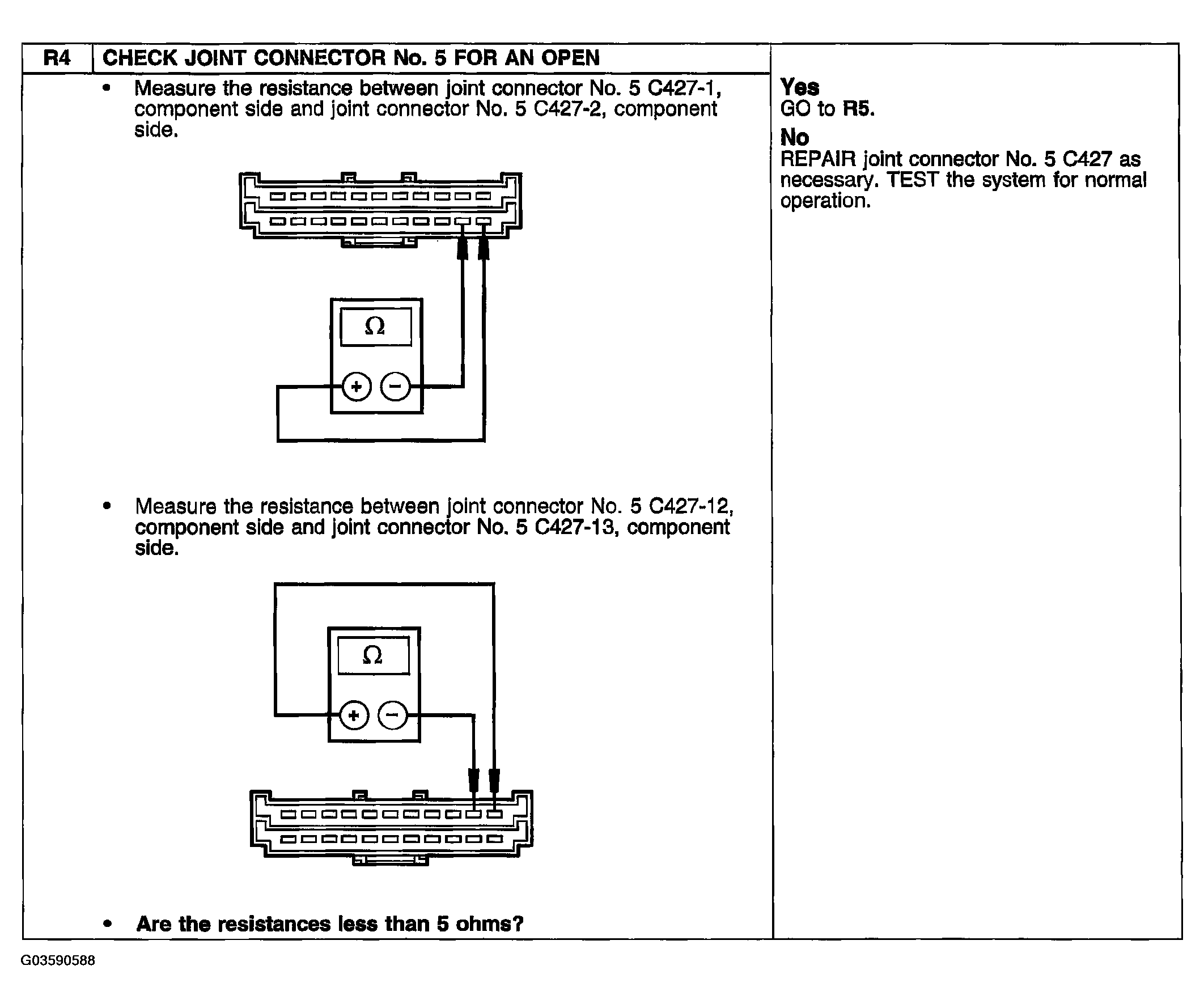

Fig 3: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R3 - R4)

Courtesy of FORD MOTOR CO.

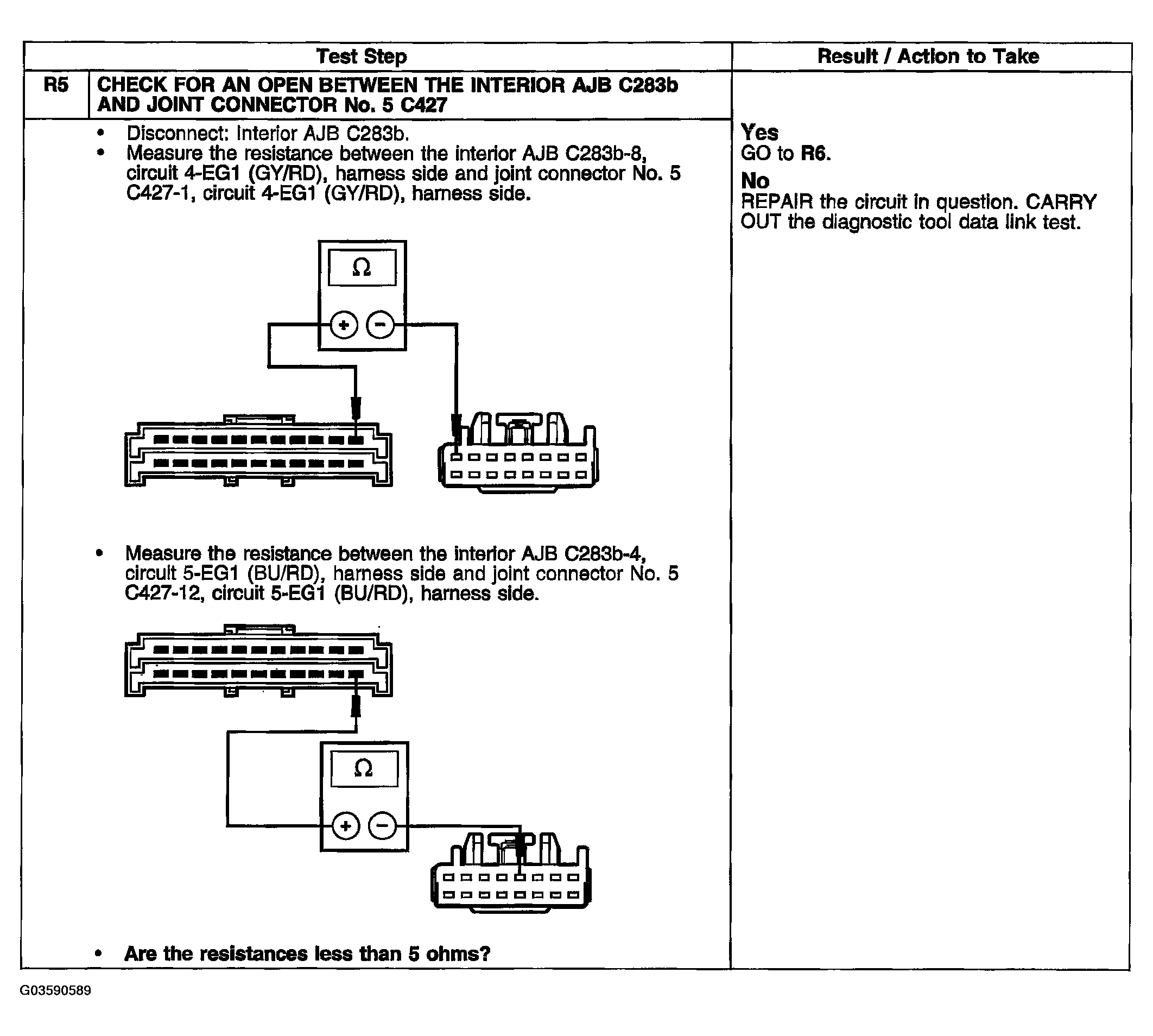

Fig 4: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R5)

Courtesy of FORD MOTOR CO.

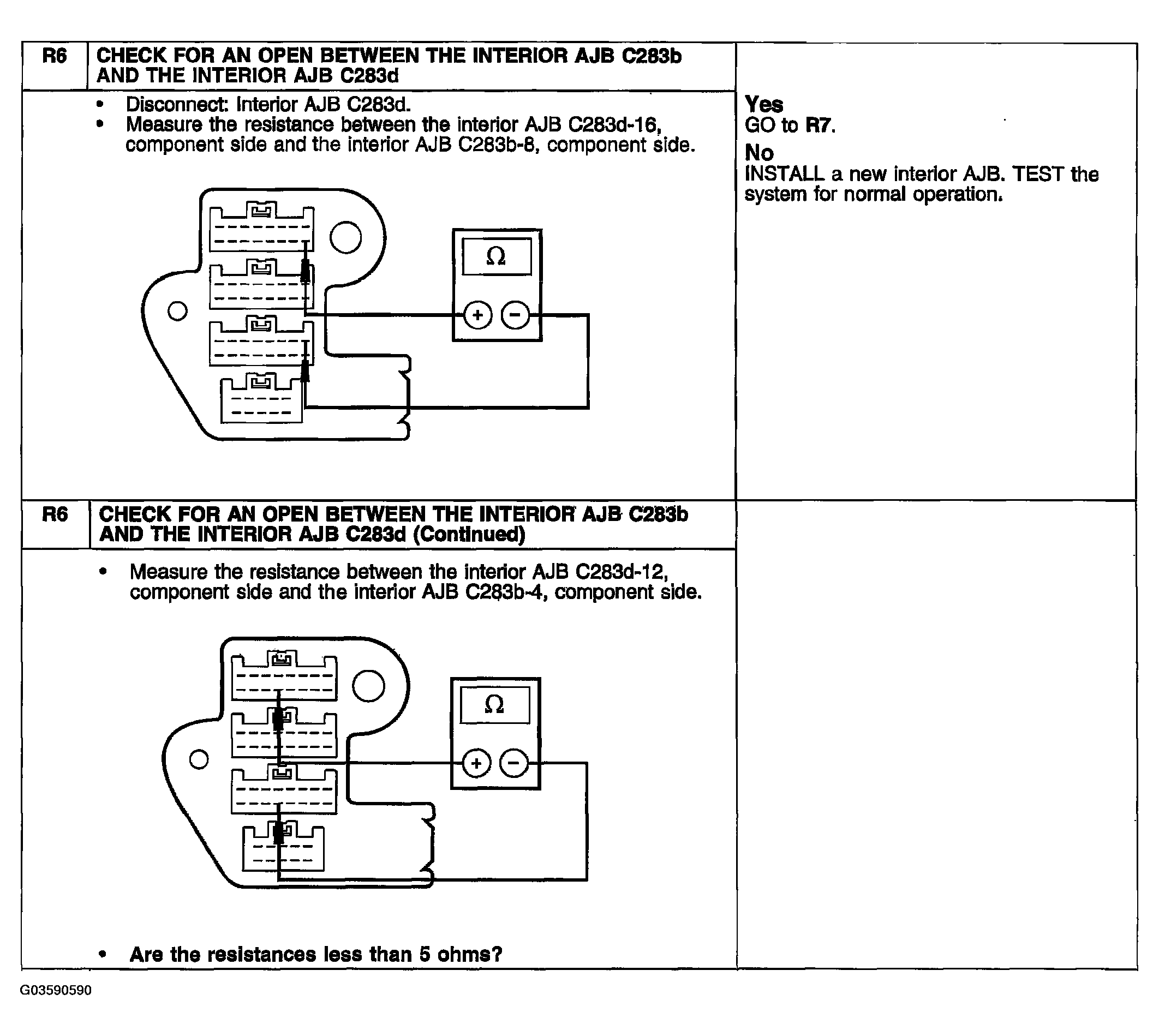

Fig 5: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R6)

Courtesy of FORD MOTOR CO.

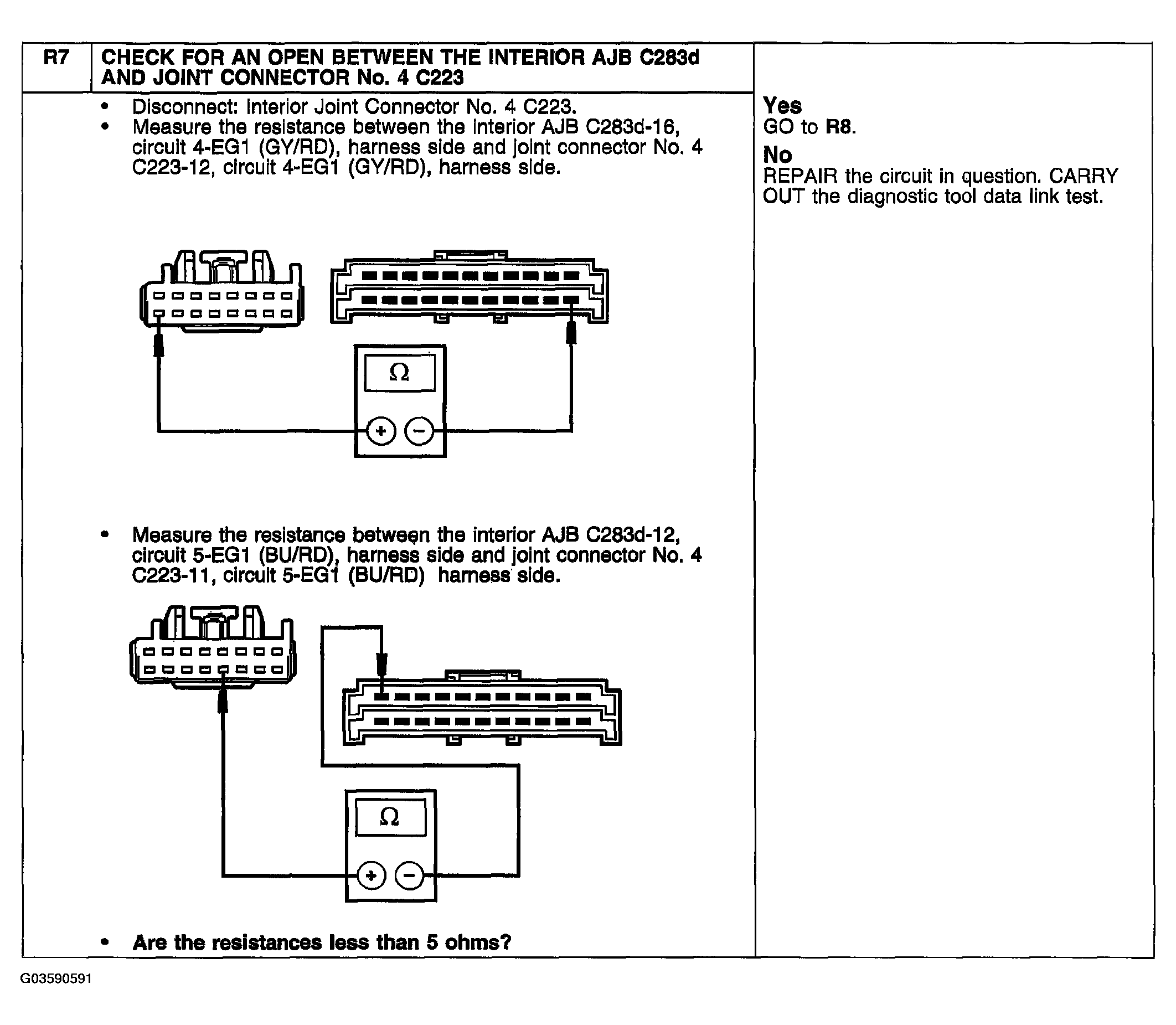

Fig 6: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R6 - R7)

Courtesy of FORD MOTOR CO.

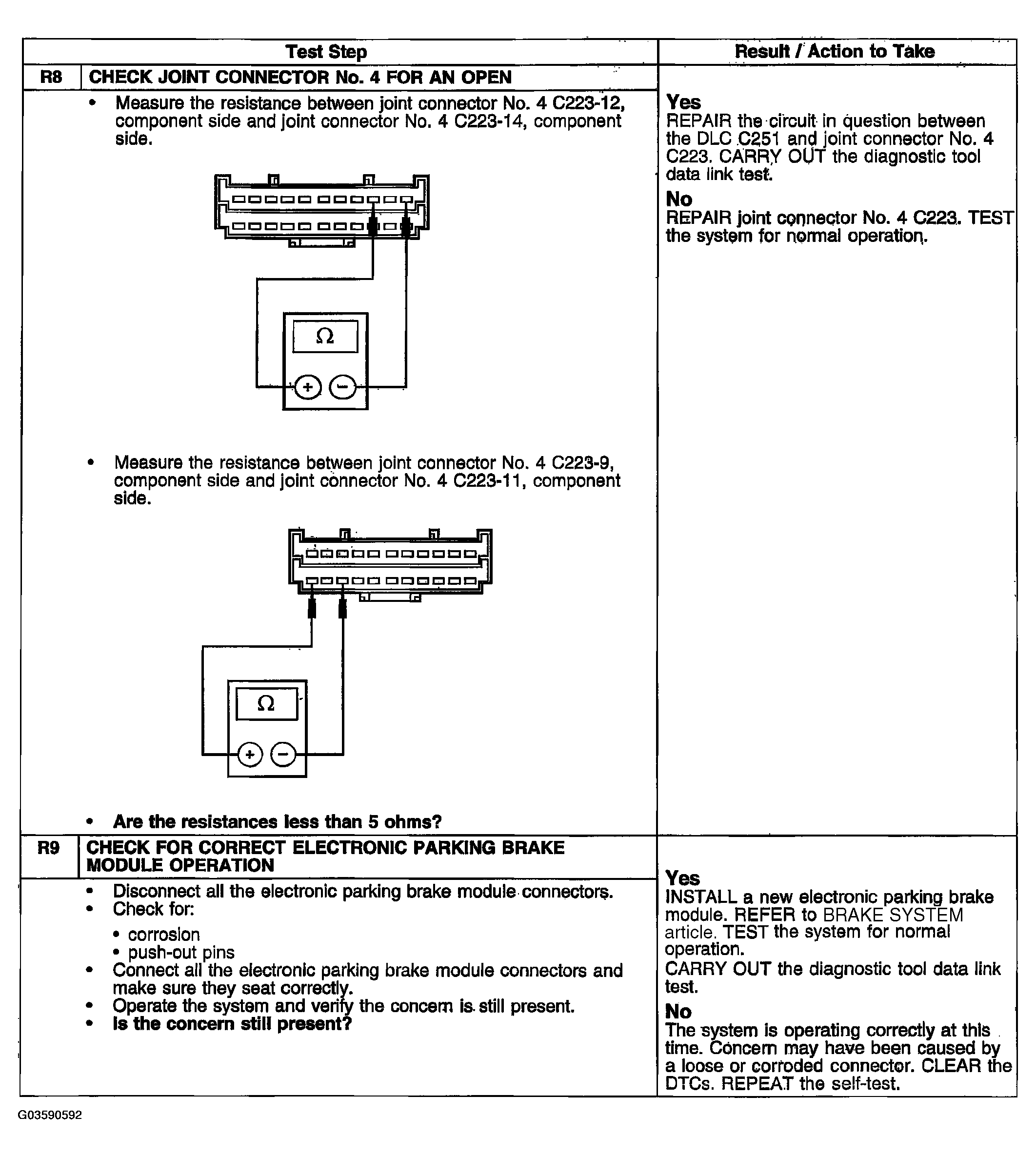

Fig 7: Pinpoint Test R: Electronic Parking Brake Module Does Not Respond To Diagnostic Tool (Step R8 - R9)

Courtesy of FORD MOTOR CO.
