Pinpoint Test D: The Illuminated Entry Is Inoperative When Using The Remote Transmitter

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

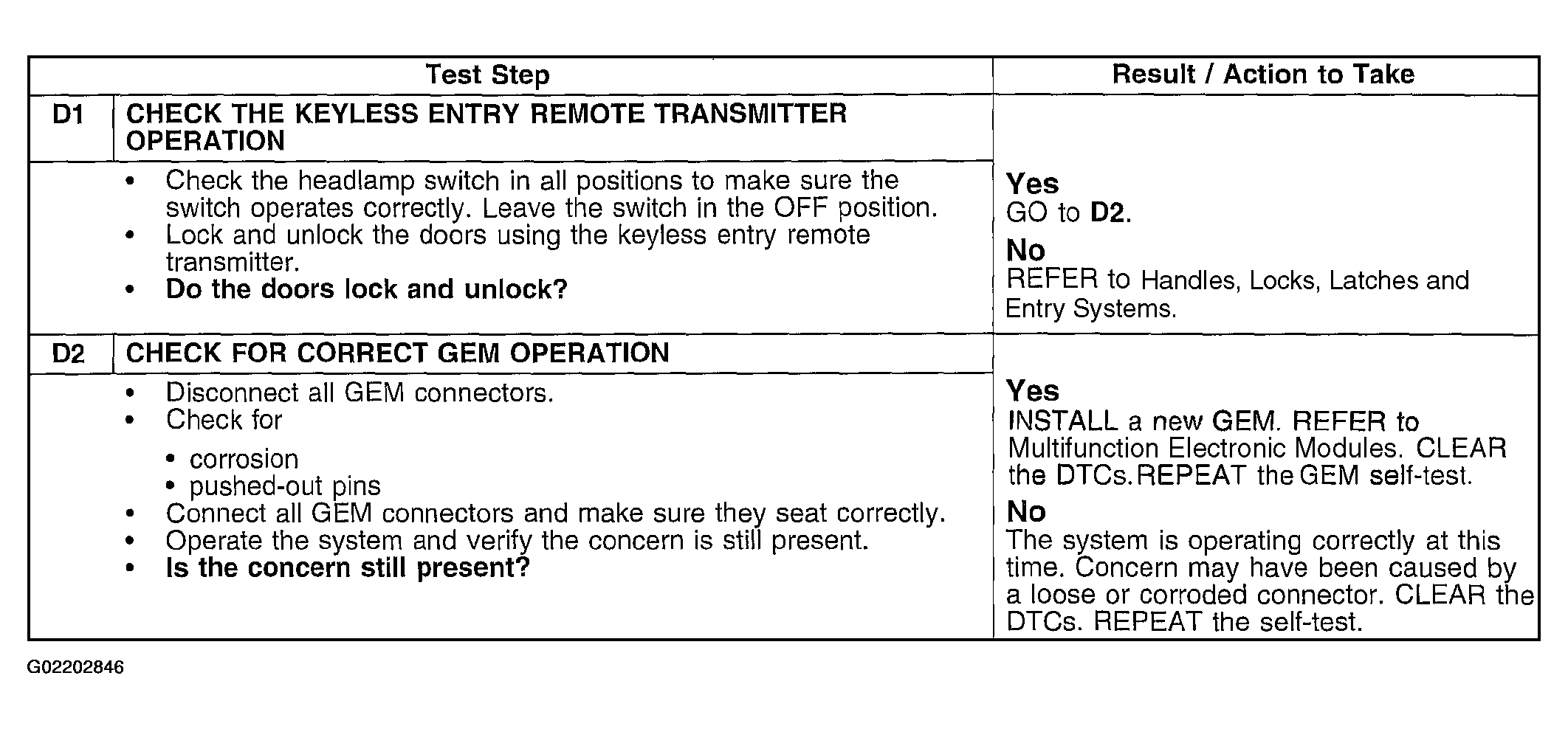

Fig 1: Pinpoint Test D: Illuminated Entry Is Inoperative When Using Remote Transmitter (Steps D1-D2)
G02202846Courtesy of FORD MOTOR CO.
