Item 33: Axle Isolator Bushing Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Align the notches in the bushing at 45° from the fore and aft position.

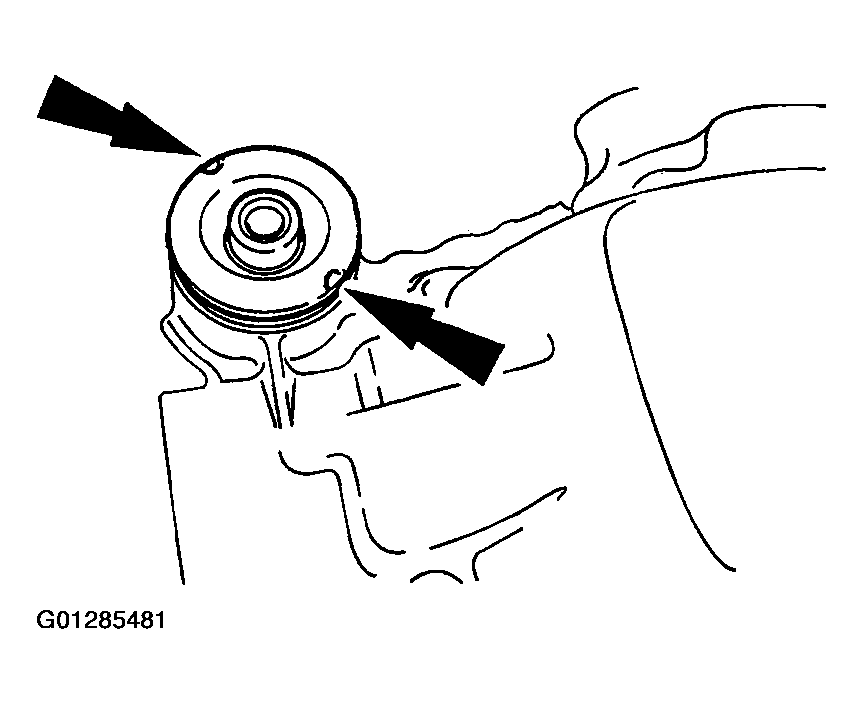

Fig 1: Aligning Bushing Notches
Courtesy of FORD MOTOR CO.
Using the special tools, install the rear axle isolator bushing.

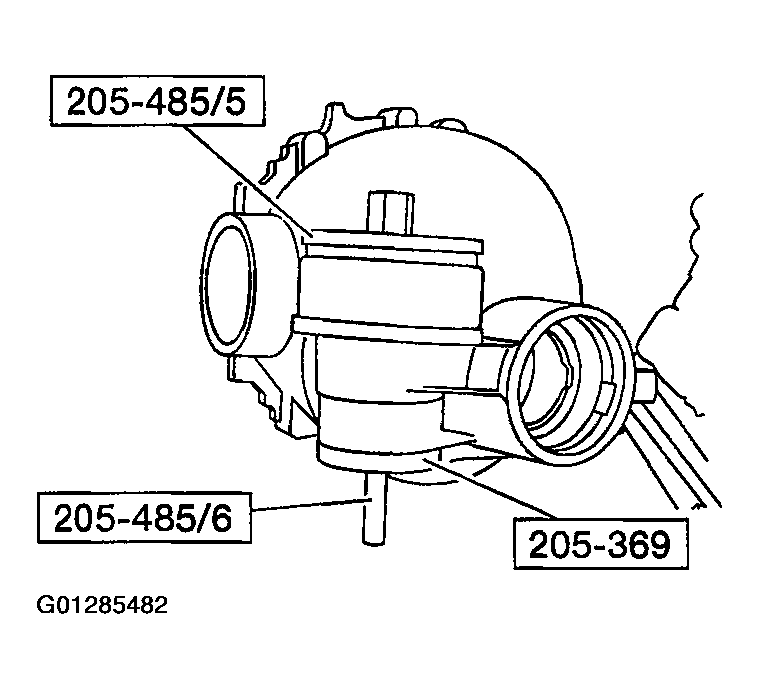

Fig 2: Installing Rear Axle Isolator Bushing

Courtesy of FORD MOTOR CO.
