Instrument Cluster Module (ICM) C220c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

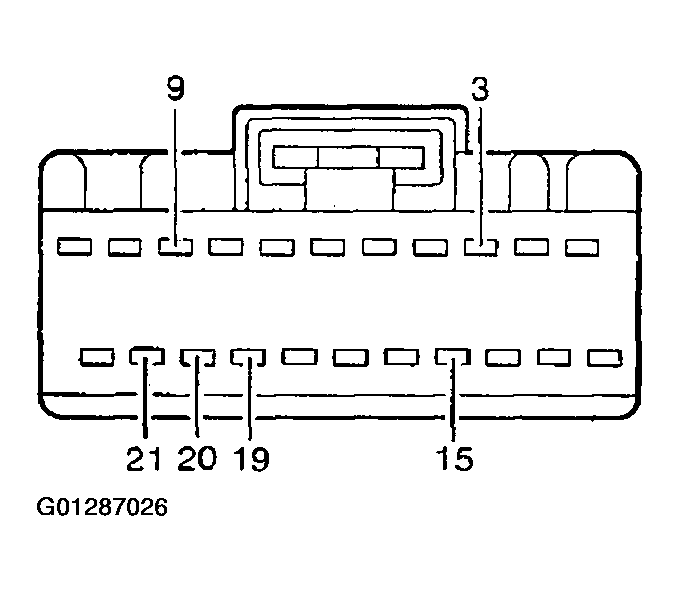

Fig 1: Identifying Instrument Cluster Module C220C

Courtesy of FORD MOTOR CO.

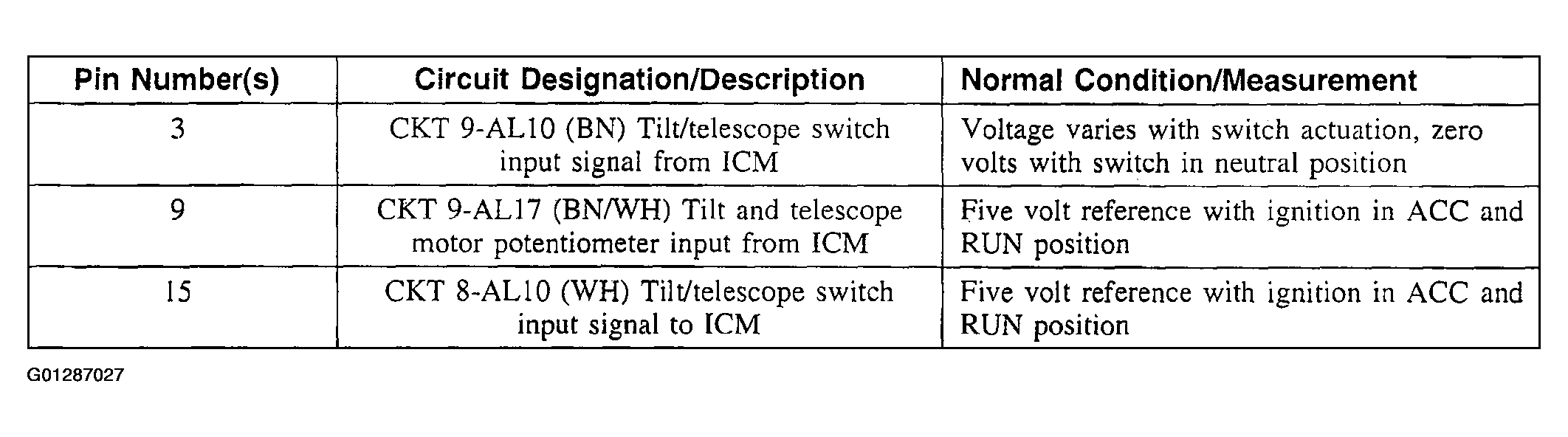

Fig 2: Instrument Cluster Module C220C Circuit Description Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

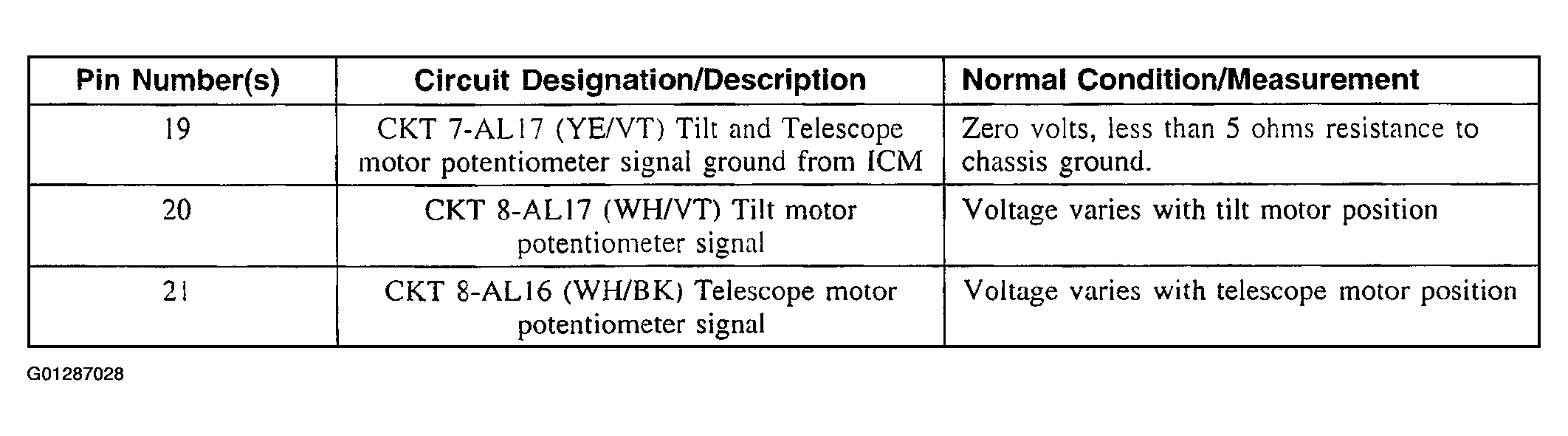

Fig 3: Instrument Cluster Module C220C Circuit Description Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
