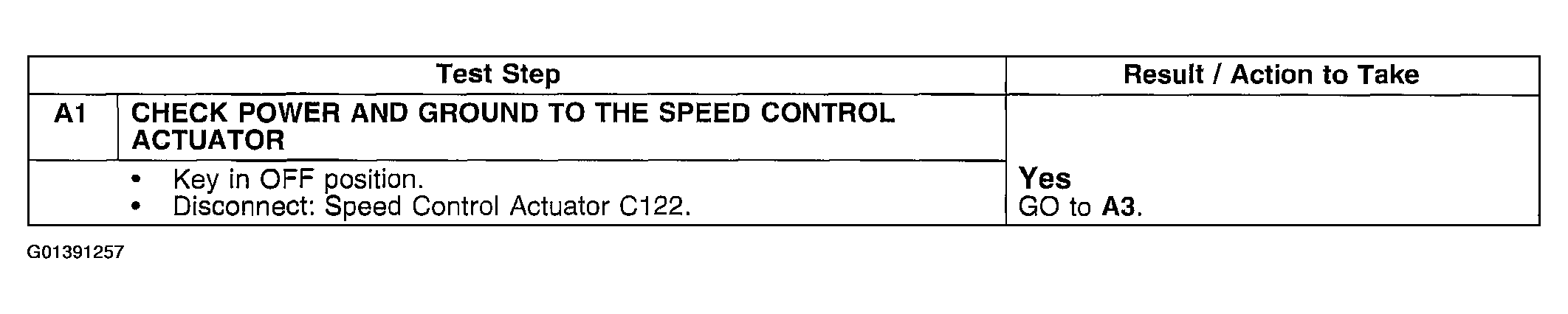

Fig 1: Pinpoint Test A: Speed Control Is Inoperative (Steps A1)
Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test A: Speed Control Is Inoperative (Steps A1 Cont.-A3)
Courtesy of FORD MOTOR CO.

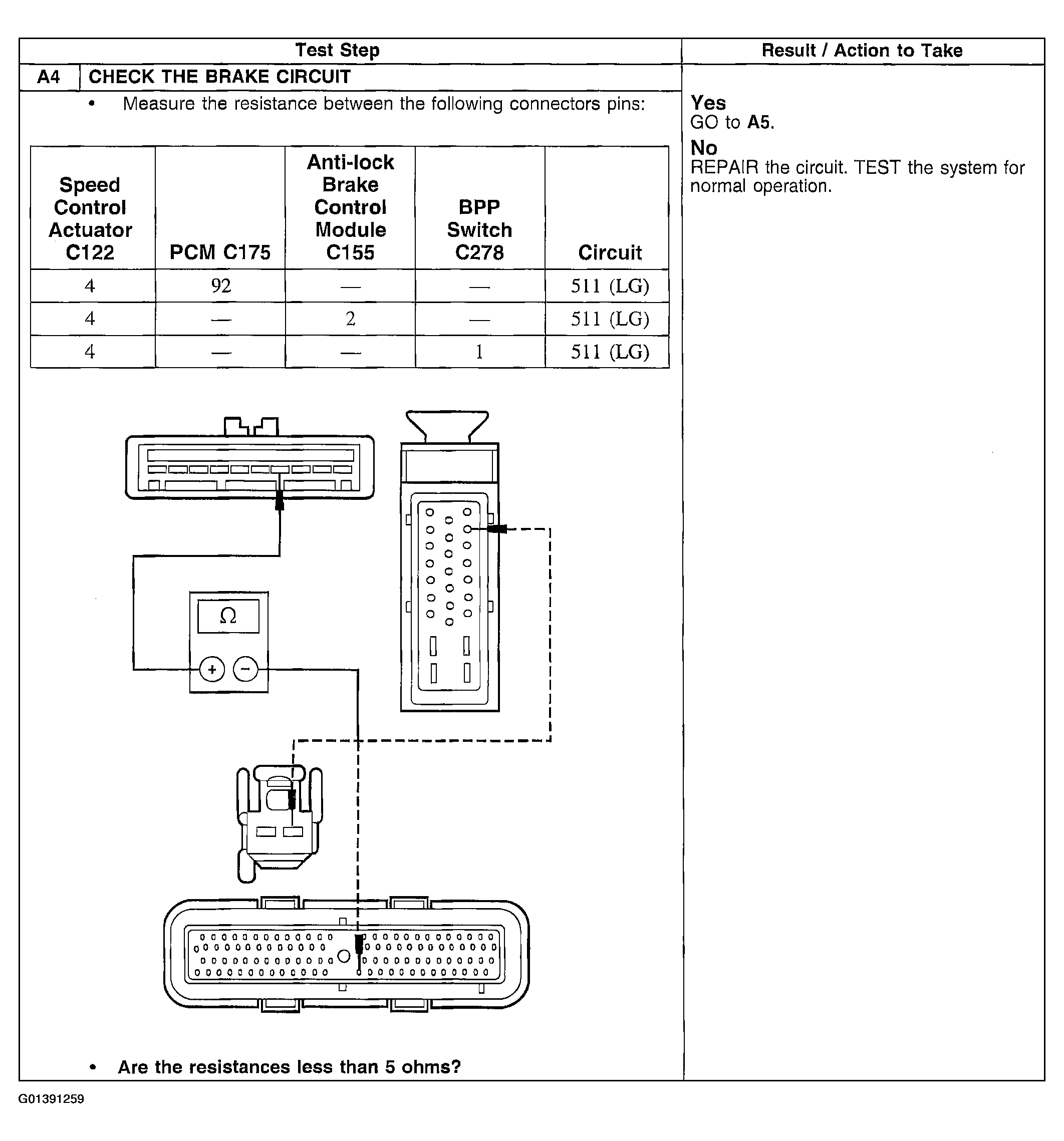

Fig 3: Pinpoint Test A: Speed Control Is Inoperative (Steps A4)
Courtesy of FORD MOTOR CO.

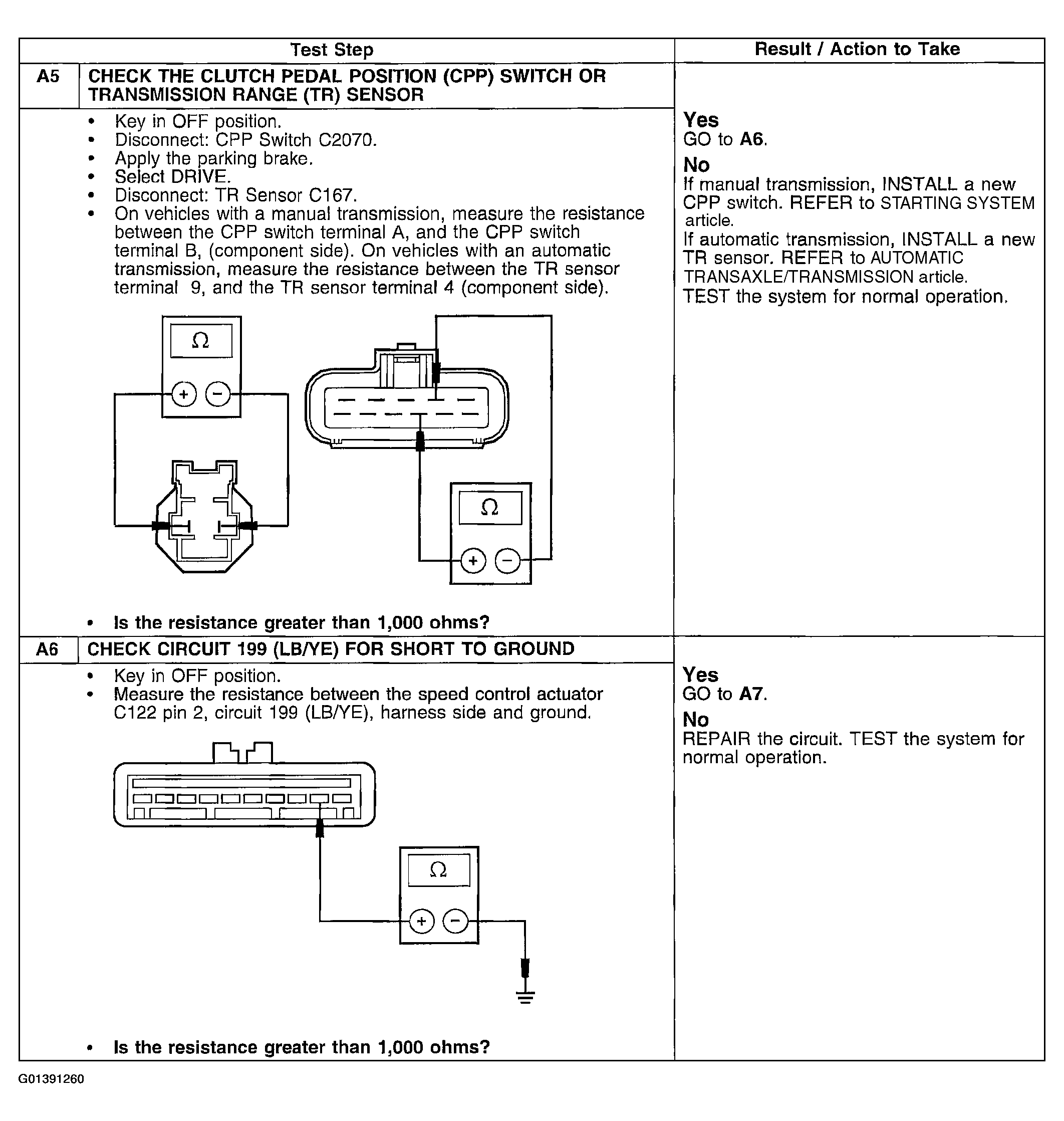

Fig 4: Pinpoint Test A: Speed Control Is Inoperative (Steps A5-A6)
Courtesy of FORD MOTOR CO.

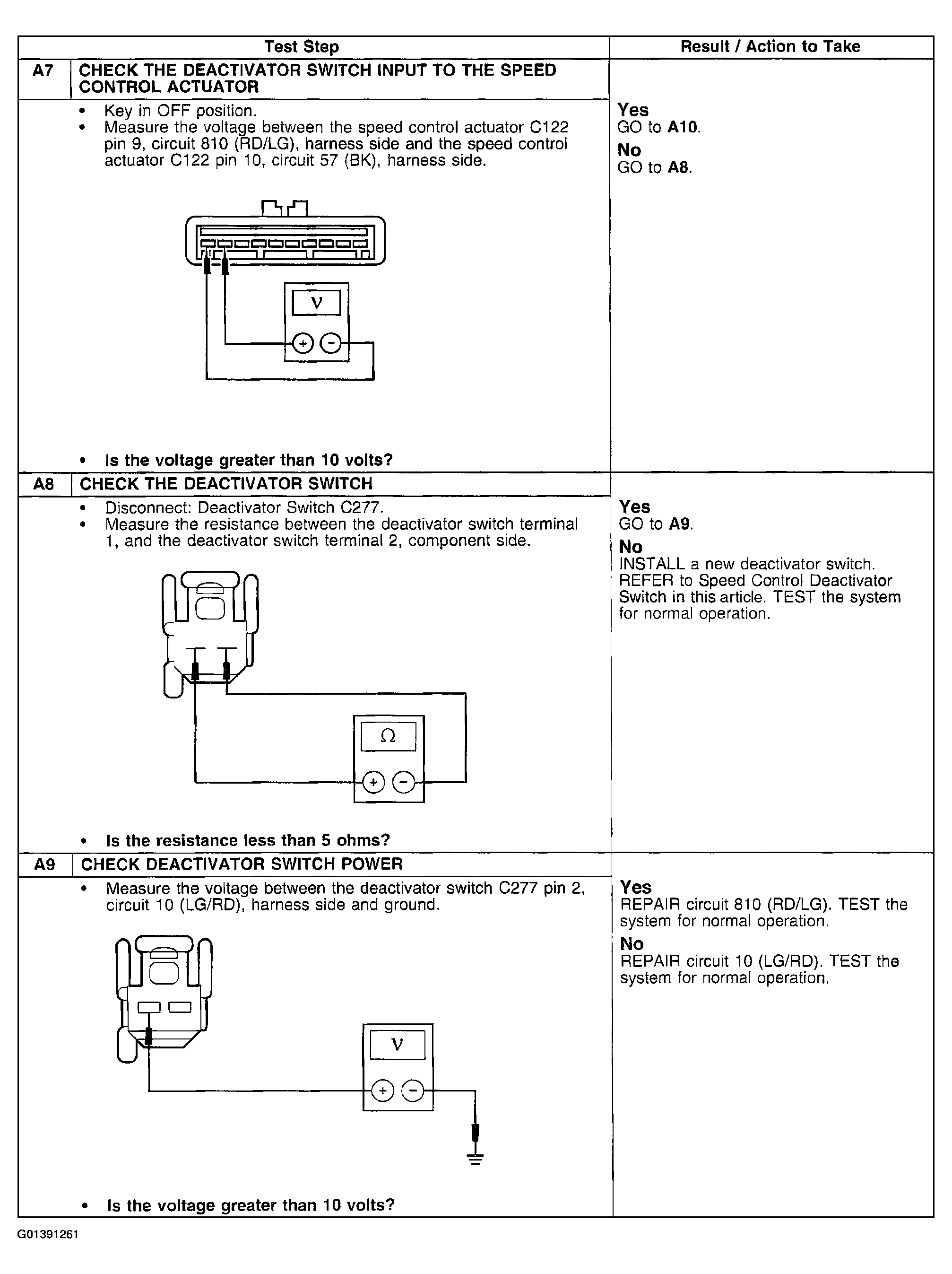

Fig 5: Pinpoint Test A: Speed Control Is Inoperative (Steps A7-A9)
Courtesy of FORD MOTOR CO.

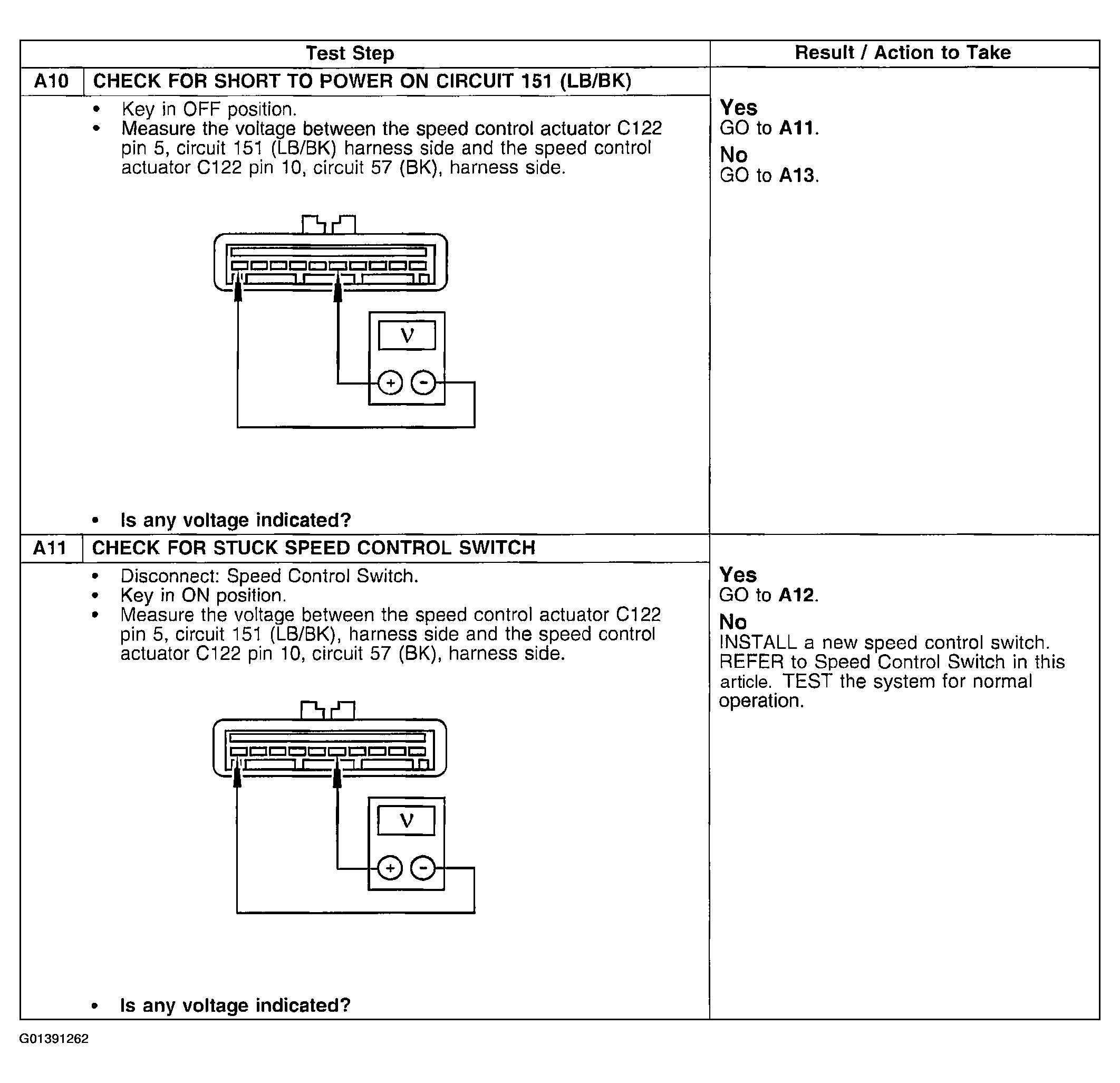

Fig 6: Pinpoint Test A: Speed Control Is Inoperative (Steps A10-A11)
Courtesy of FORD MOTOR CO.

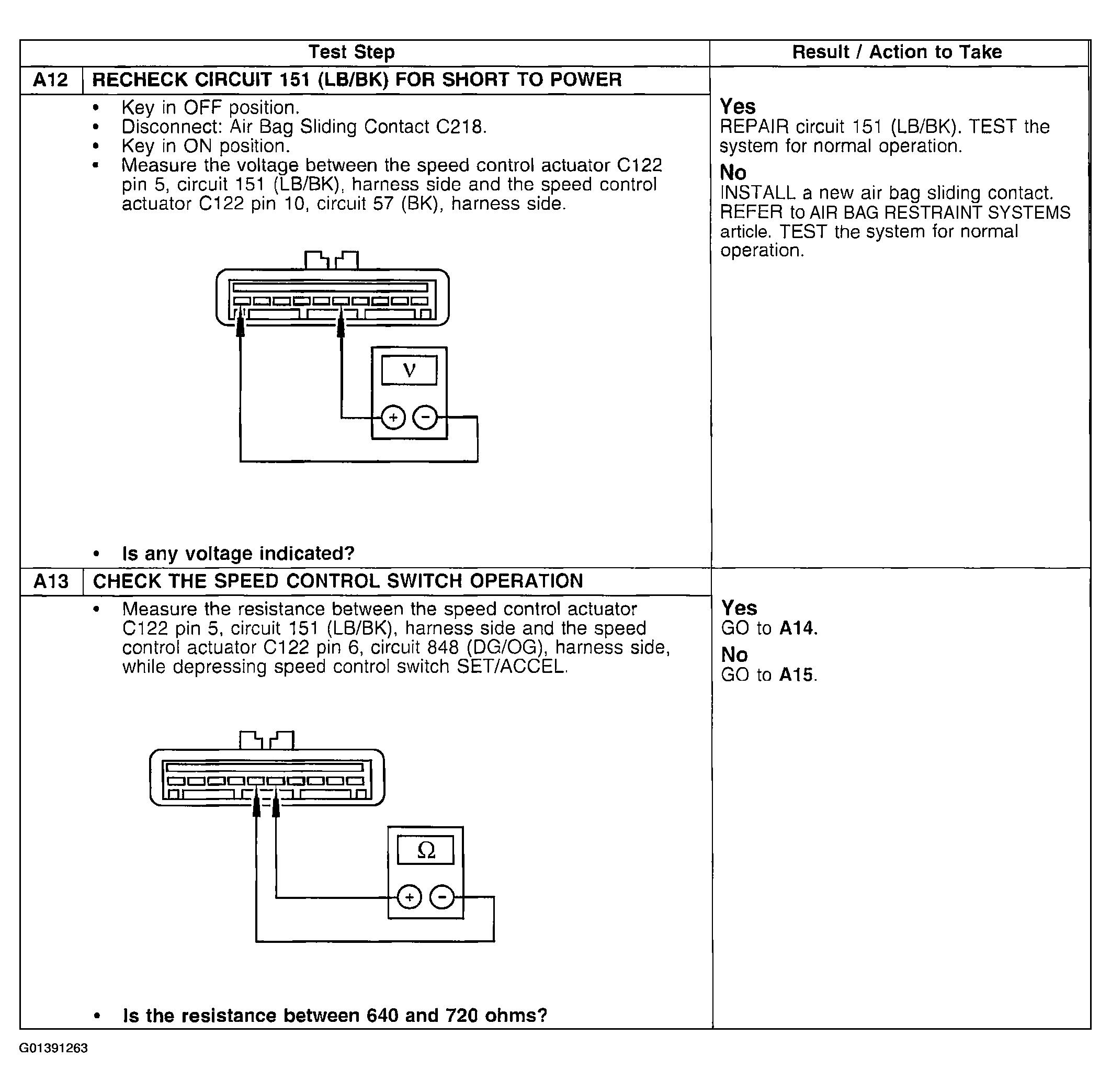

Fig 7: Pinpoint Test A: Speed Control Is Inoperative (Steps A12-A13)
Courtesy of FORD MOTOR CO.

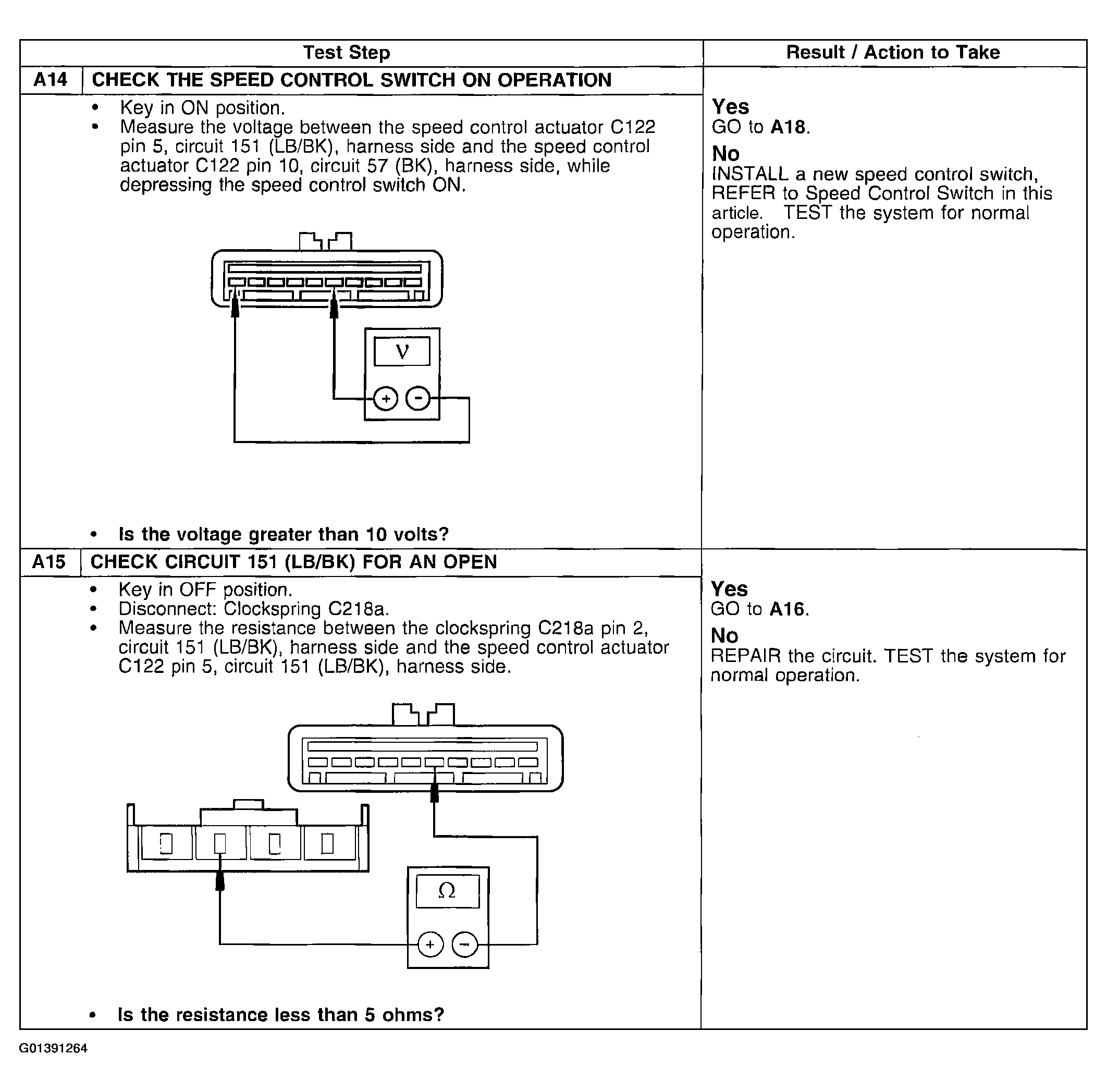

Fig 8: Pinpoint Test A: Speed Control Is Inoperative (Steps A14-A15)
Courtesy of FORD MOTOR CO.
Fig 9: Pinpoint Test A: Speed Control Is Inoperative (Steps A16-A18)
Courtesy of FORD MOTOR CO.

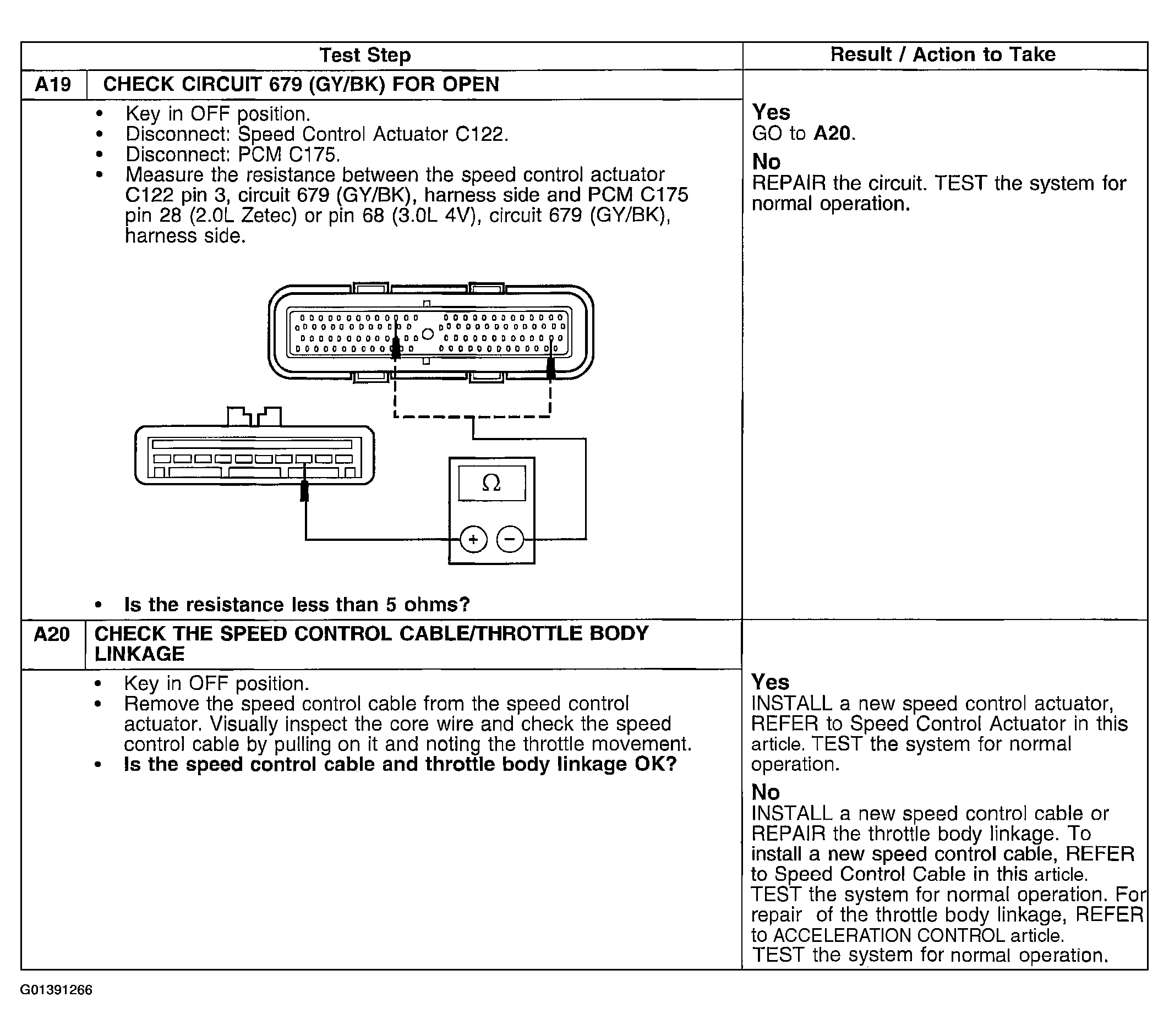

Fig 10: Pinpoint Test A: Speed Control Is Inoperative (Steps A19-A20)
