Pinpoint Test F: Flash With Last Switch Pressed, But No Dynamic Pull Occurs At The Throttle And The Speed Control Is Inoperative

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

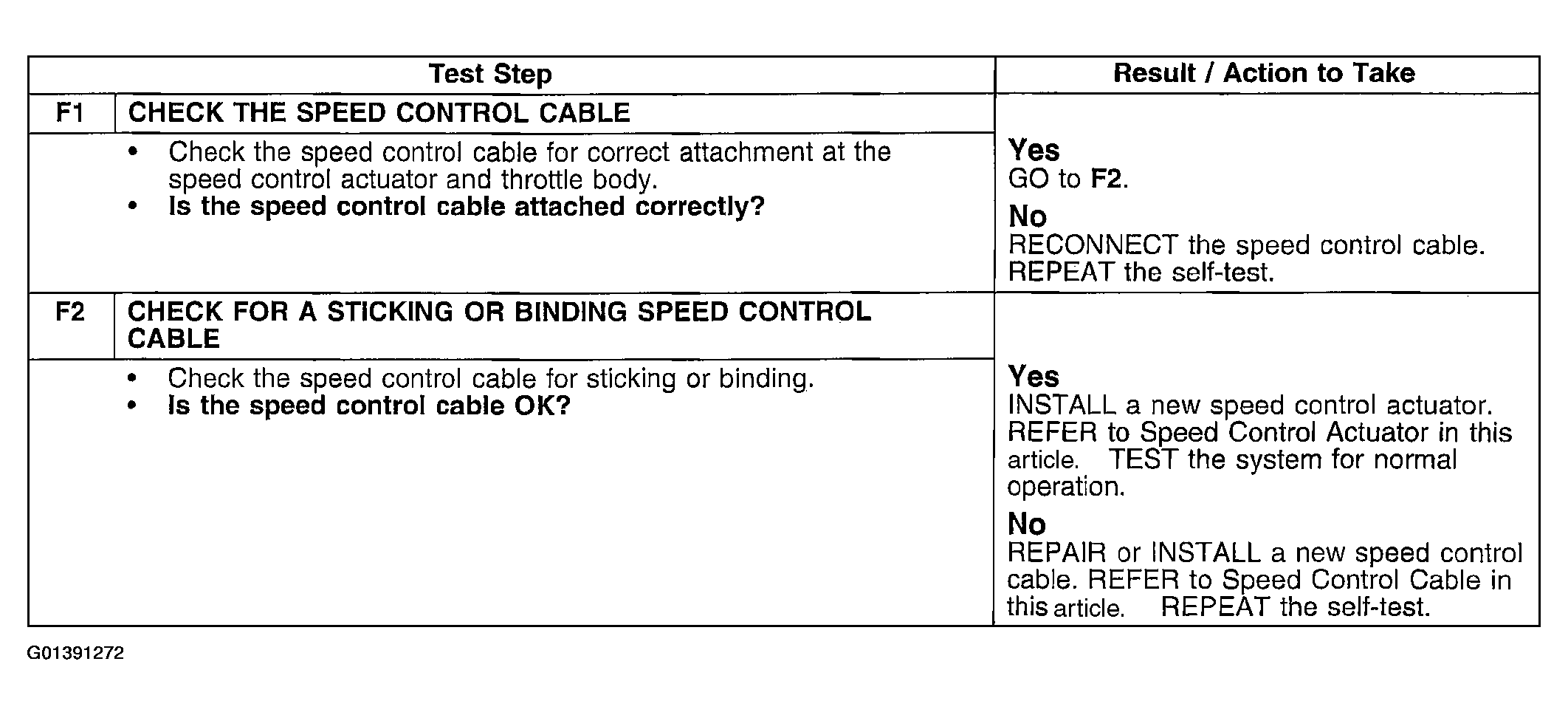

Fig 1: Pinpoint Test F: Flash With Last Switch Pressed, But No Dynamic Pull Occurs At Throttle And Speed Control Is Inoperative (Steps F1-F2)
G01391272Courtesy of FORD MOTOR CO.
