Daytime Running Lamps (DRL) Module: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

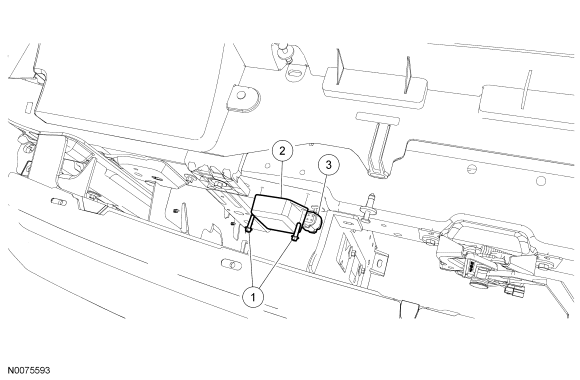

Fig 1: Exploded View Of Daytime Running Lamps (DRL) Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N807522	Daytime running lamps (DRL) module bolts (2 required)
2	15A272	DRL module
3	-	DRL module electrical connector (part of 14290/12A581)
