Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Initial installation of a deactivator switch allows for one adjustment. If additional adjustments are required, install a new switch.

Release the plunger lock.
- Turn the lock knob counterclockwise until the first click is felt.

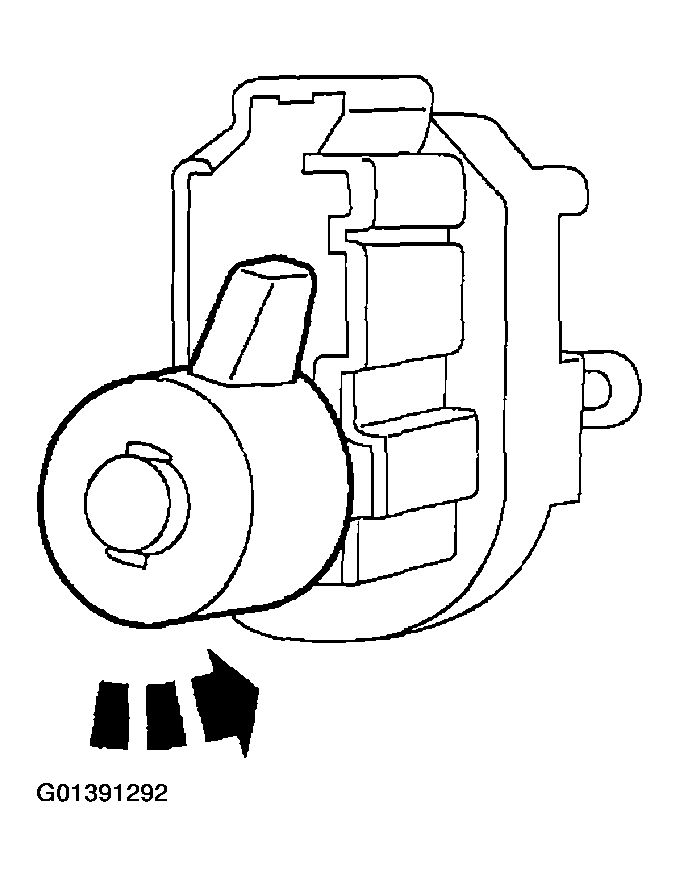

  Fig 1: Releasing Plunger Lock
  Courtesy of FORD MOTOR CO.
Depress the brake pedal.
Install the deactivator switch.
1. Position the deactivator switch in the bracket and rotate clockwise 45 degrees.
2. Connect the electrical connector.

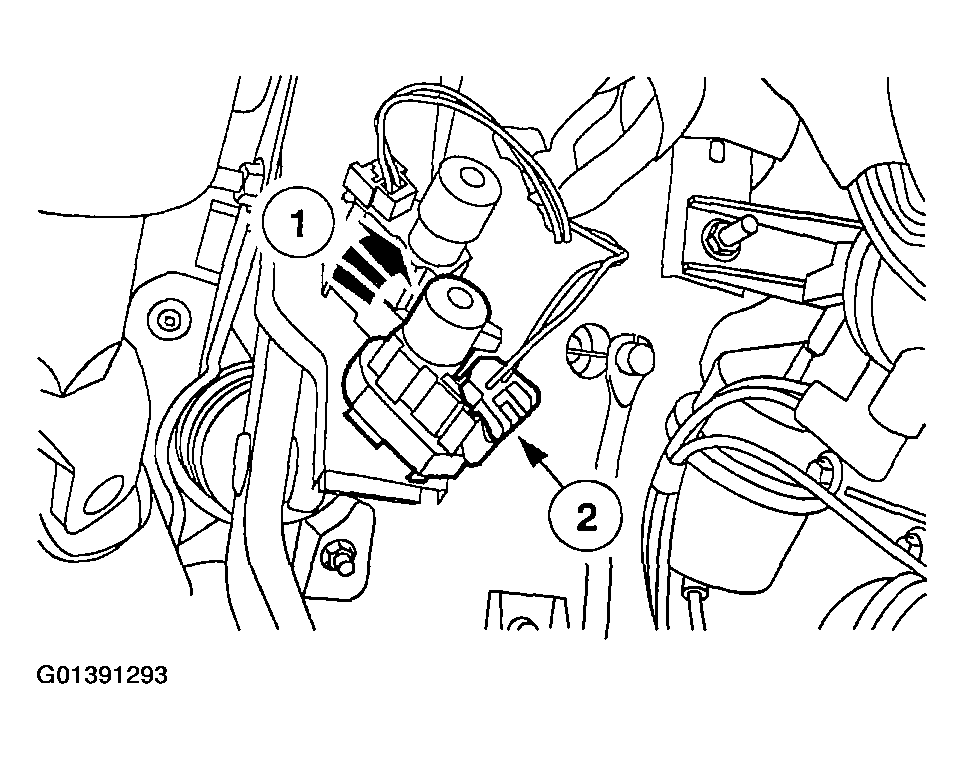

  Fig 2: Installing Deactivator Switch
  Courtesy of FORD MOTOR CO.

NOTE: There should be an extra click heard when tugging on the brake pedal.

Slowly release the brake pedal and tug moderately once the pedal reaches the rest position.
