Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the four screws and the climate control assembly.

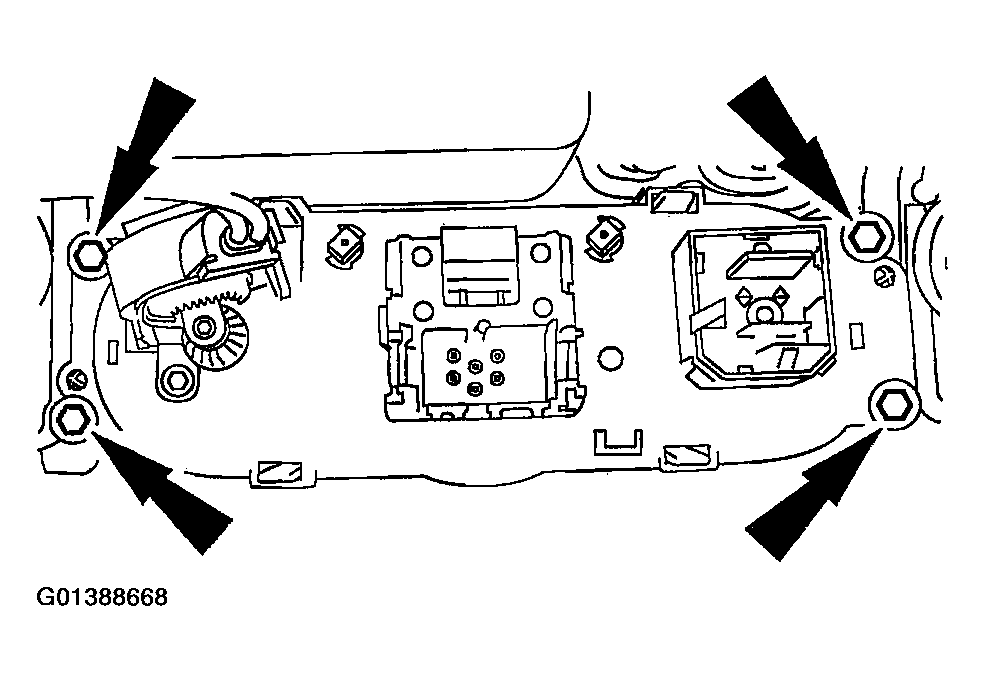

    Fig 1: Removing Screws And Climate Control Assembly
    G01388668Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
