Pinpoint Test I: DTC C1785: EPB Motor Output Open Circuit

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

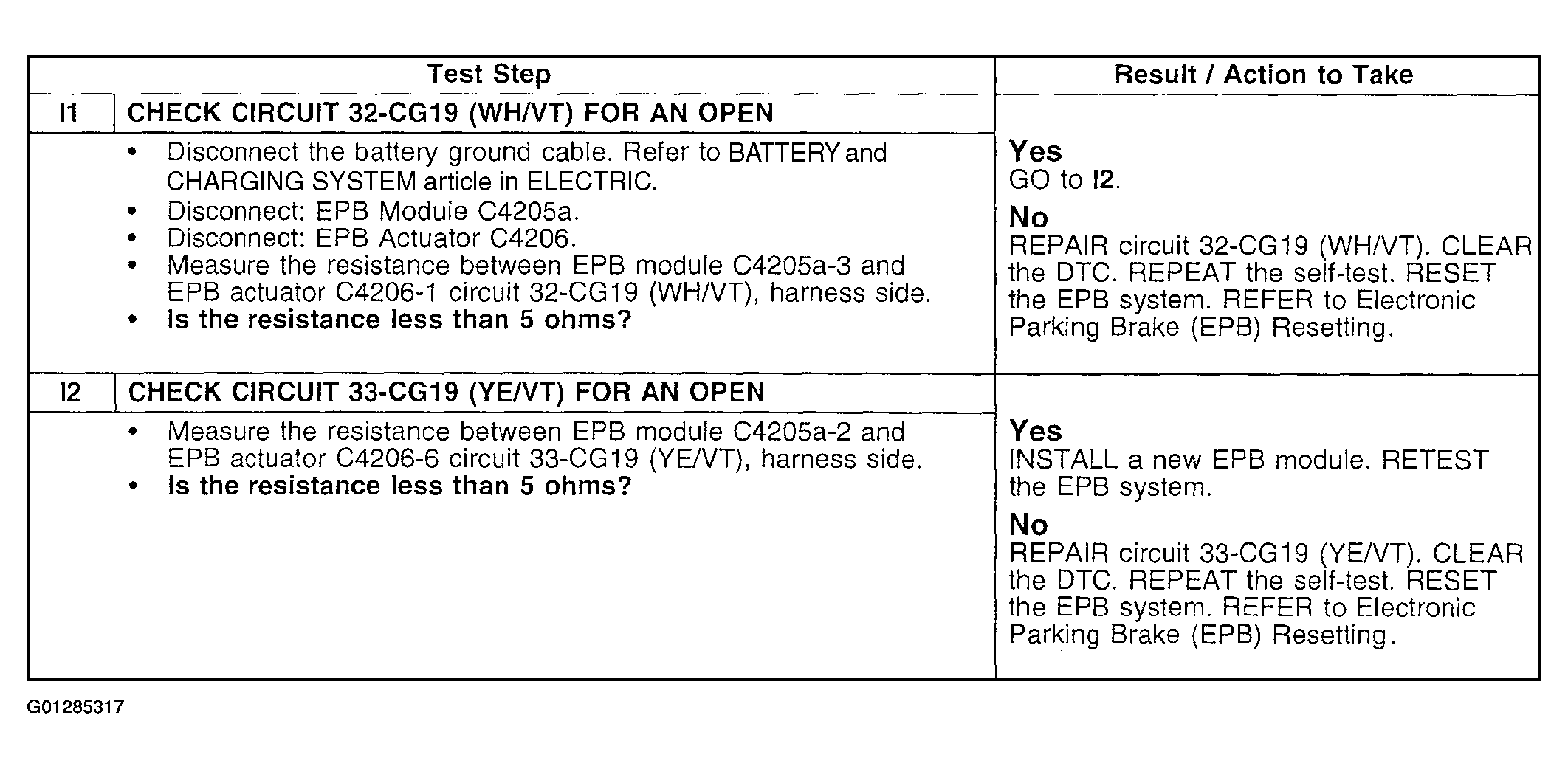

Fig 1: Pinpoint Test I: DTC C1785: EPB Motor Output Open Circuit
G01285317Courtesy of FORD MOTOR CO.
