Pinpoint Test I: The Express Open/Close Is Inoperative

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

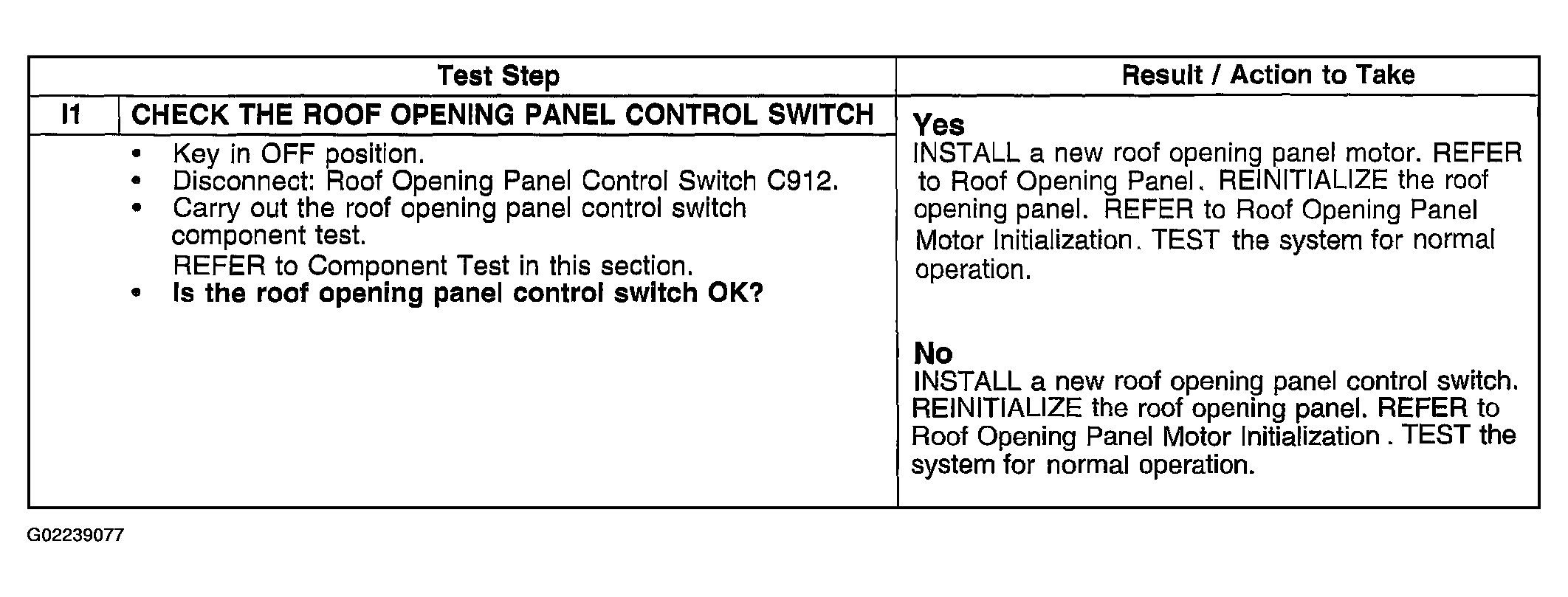

Fig 1: Pinpoint Test I: Express Open/Close Is Inoperative (Steps I1)
G02239077Courtesy of FORD MOTOR CO.
