Driver Climate Controlled Seat Module C3031a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

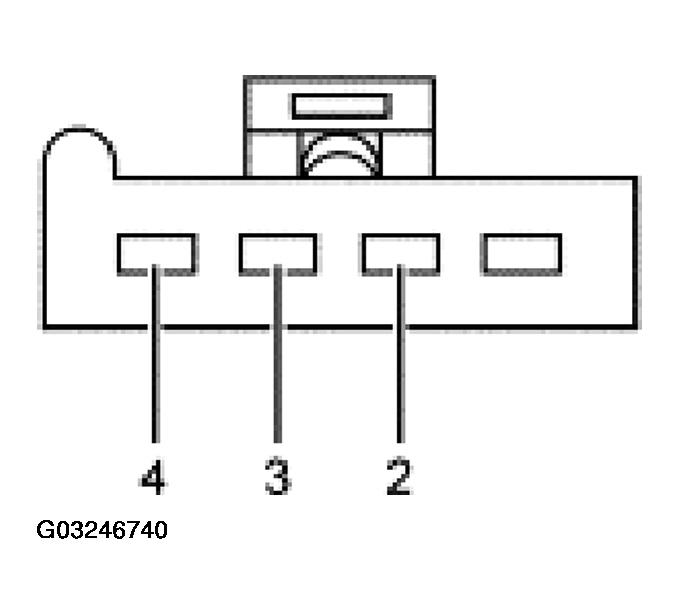

DRIVER CLIMATE CONTROLLED SEAT MODULE C3031A PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 294 (WH/LB) Battery voltage from Smart Junction Box (SJB) | Greater than 10 volts when switch is in the run position. |
| 3 | CKT 1205 (BK) Ground | Continuity to ground, less than 5 ohms. |
| 4 | CKT 566 (DG) Battery voltage from rear BEC | Greater than 10 volts at all times. |
