Passenger Climate Controlled Seat Module C3036a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

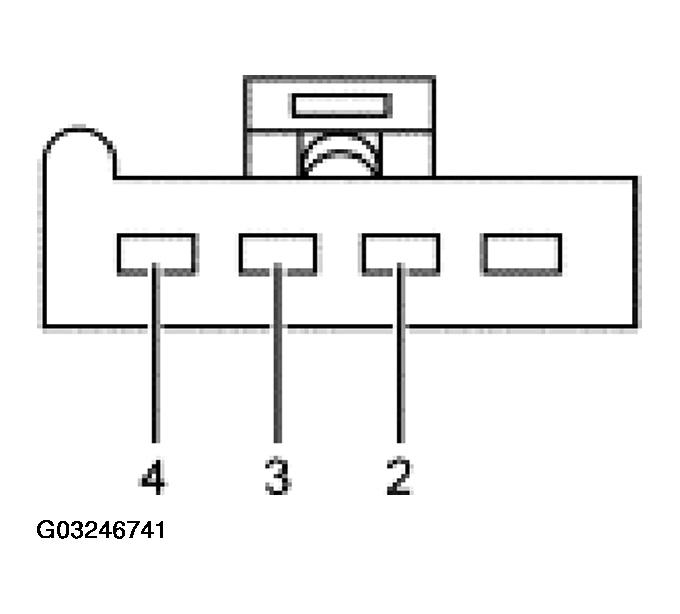

PASSENGER CLIMATE CONTROLLED SEAT MODULE C3036A PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 294 (PK/YE) Battery voltage from Smart Junction Box (SJB) | Greater than 10 volts when switch is in the run position. |
| 3 | CKT 1205 (BK) Ground | Continuity to ground, less than 5 ohms. |
| 4 | CKT 51 (DG) Battery voltage from BEC | Greater than 10 volts at all times. |
