Pinpoint Test D: Steering System Drift/Pull/Wander

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

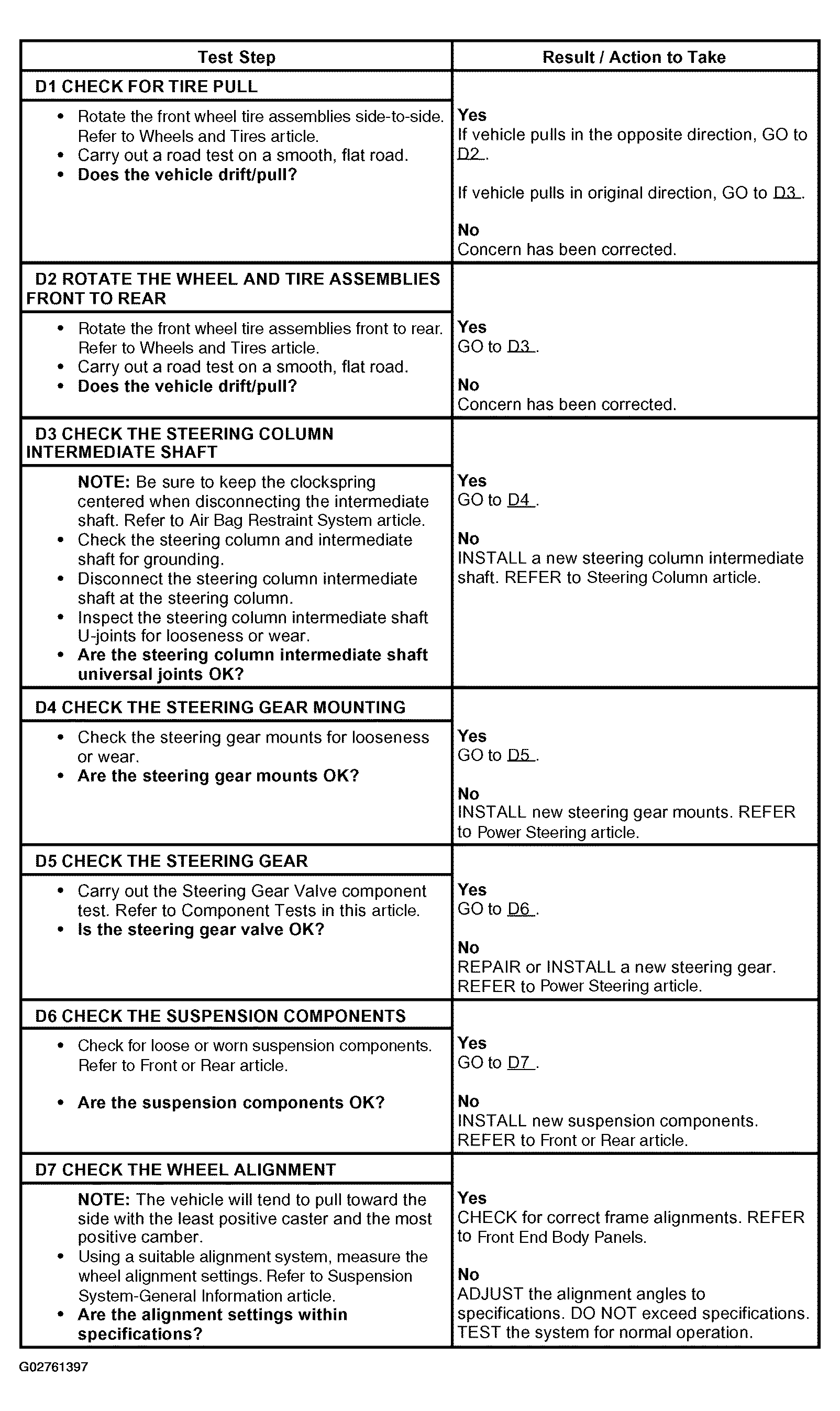

Fig 1: Pinpoint Test D: Steering System Drift/Pull/Wander
G02761397Courtesy of FORD MOTOR CO.
