Intake Manifold Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Position a new lower intake manifold gasket and the upper intake manifold on the lower intake manifold and loosely install the bolts.

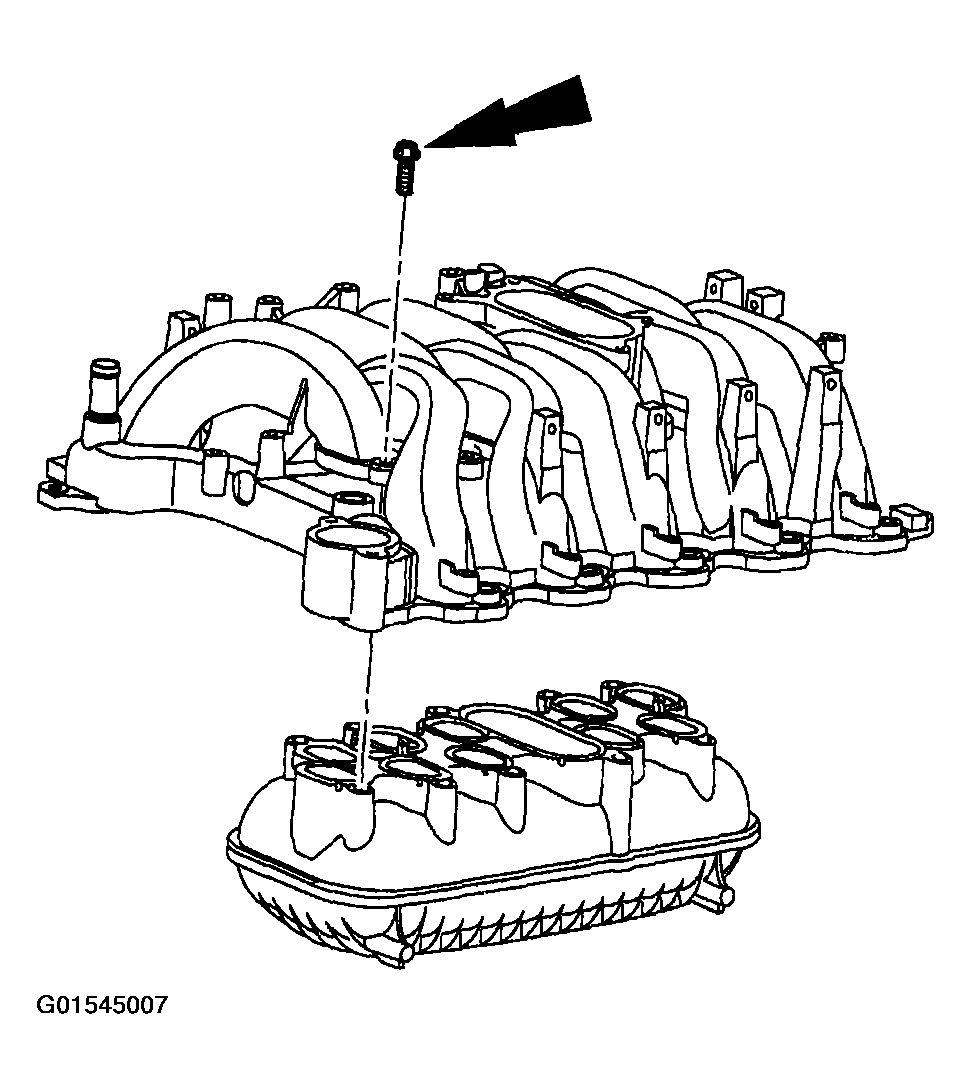

Fig 1: Installing Upper And Lower Intake Manifolds
Courtesy of FORD MOTOR CO.

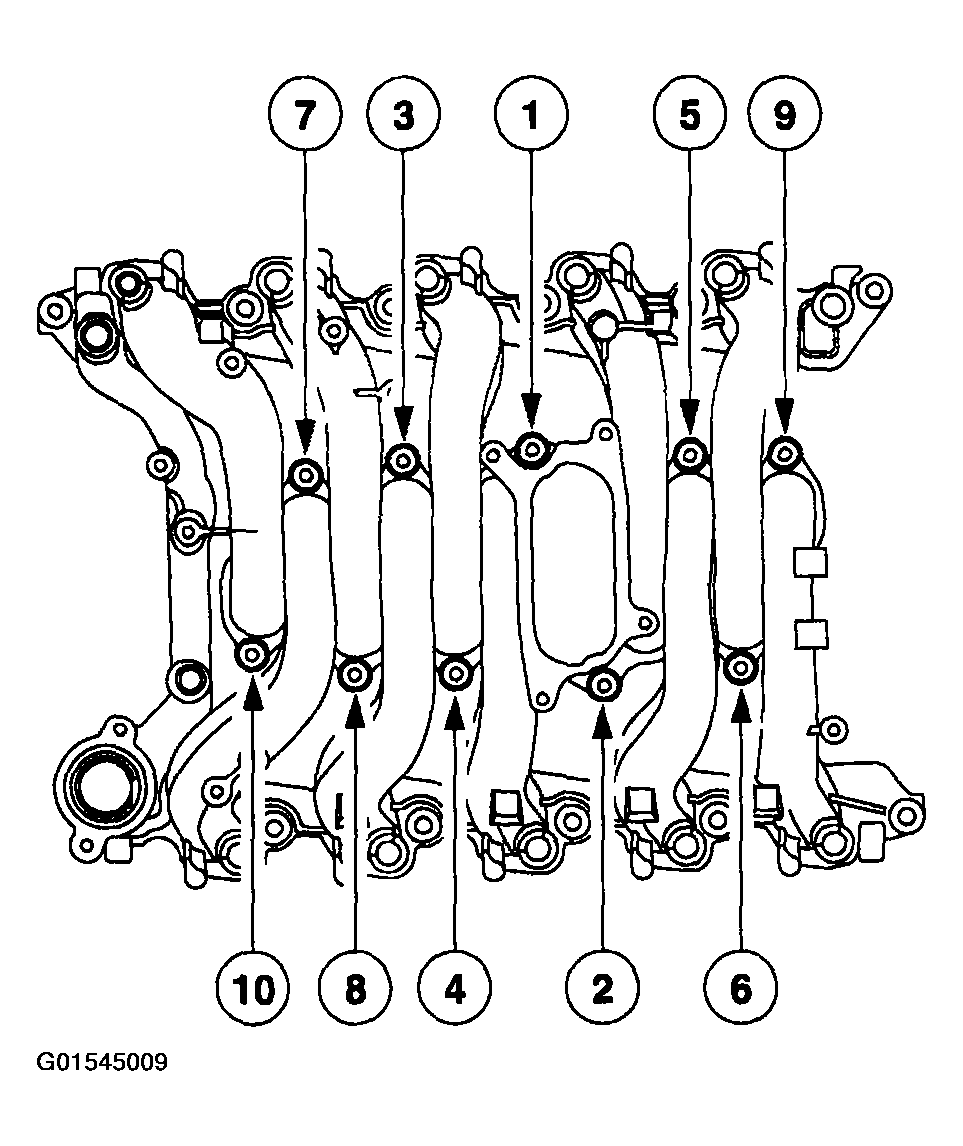

Tighten the bolts in two stages using the sequence shown.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in).
