Intake Manifold Assembly: Disassembly
WARNING: This page is about a different variant/trim than selected.

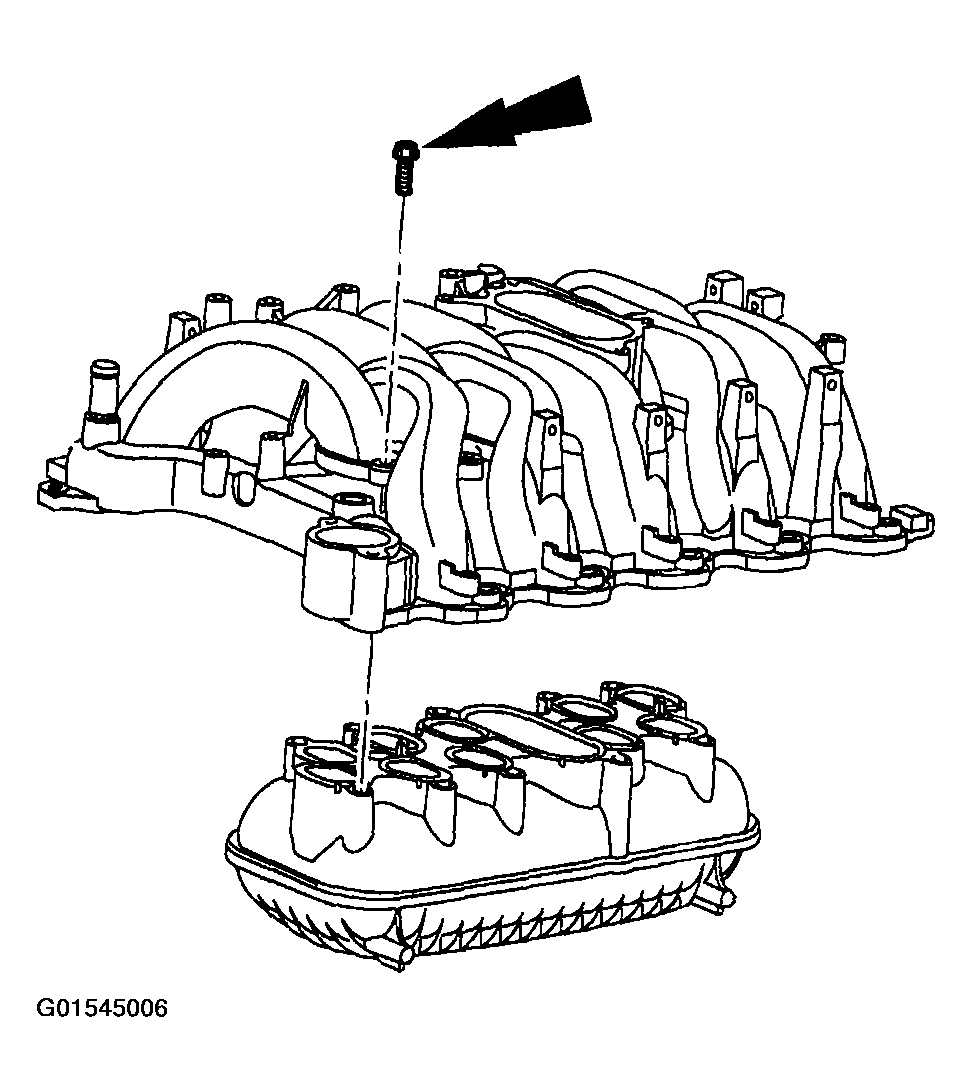

- Separate the upper and lower intake manifolds.
- Remove the bolts.
- Discard the intake manifold gasket.
- Using clean metal surface cleaner, clean and inspect the upper and lower manifold internal passages and mating surfaces.
- Allow the upper and lower intake manifolds to dry completely.
