Piston - Pin Connecting Rod, Floating Pin: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clips.

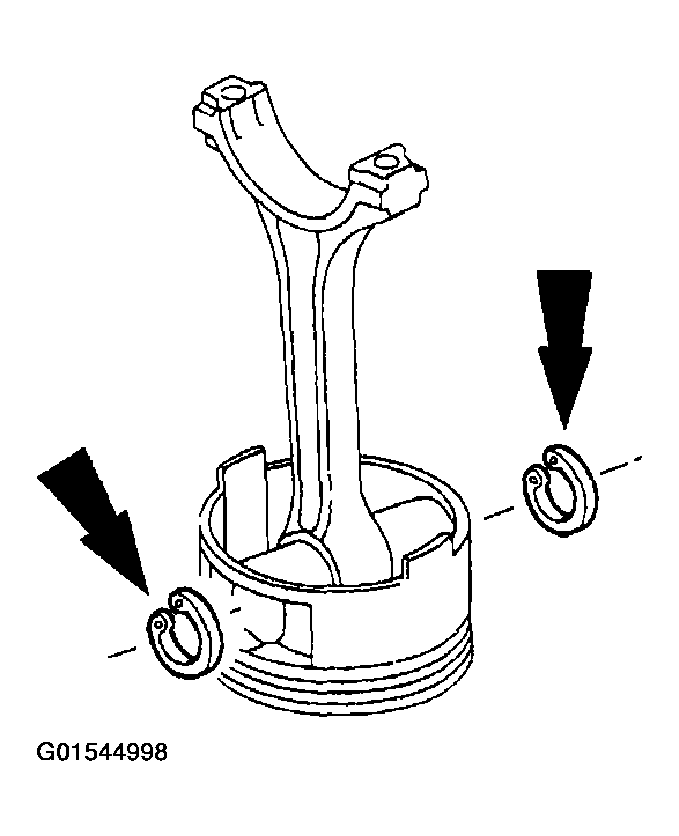

Fig 1: Removing Clips
Courtesy of FORD MOTOR CO.
Remove the piston pin from the piston and connecting rod assembly.

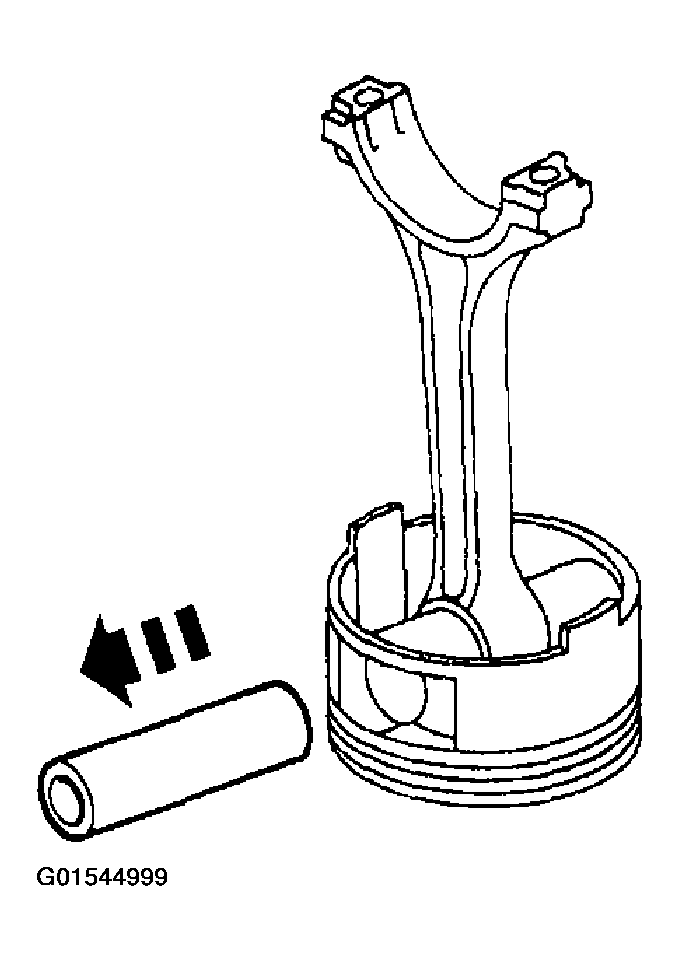

Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Remove the connecting rod from the piston.

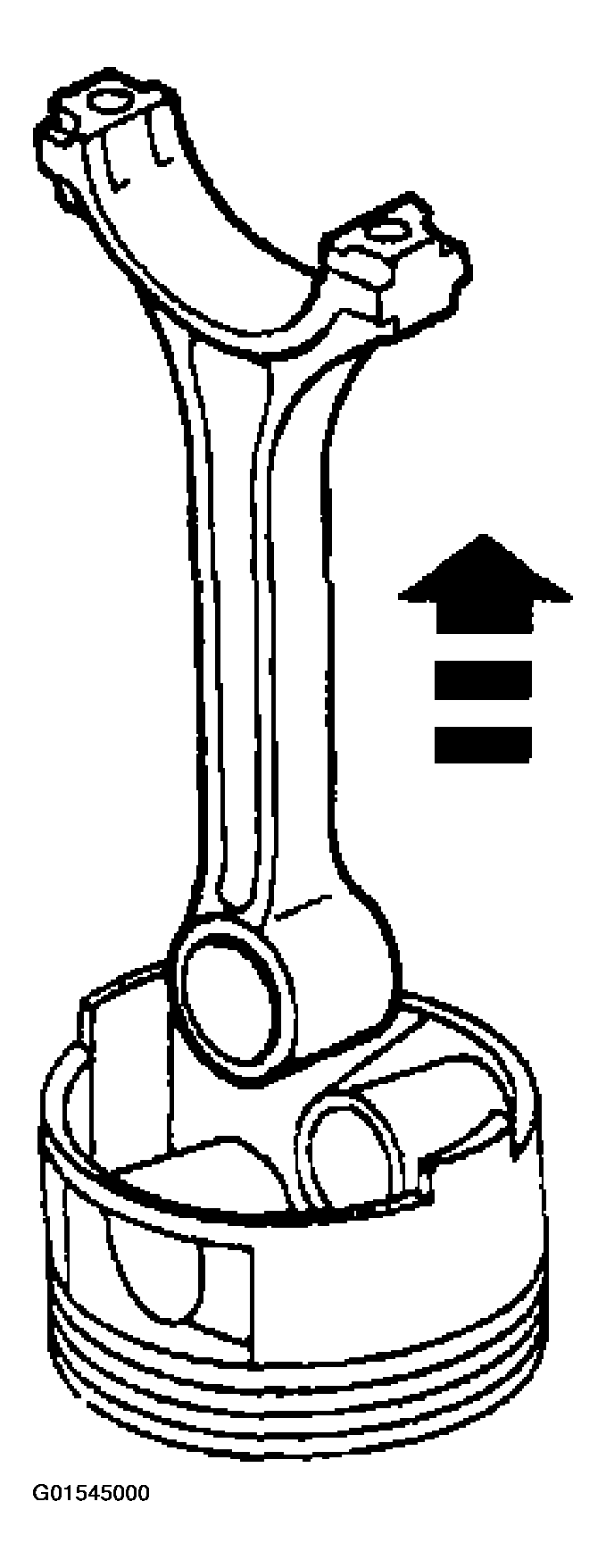

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the piston and connecting rod. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
