Engine Mounts: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: The engine is not shown for clarity.

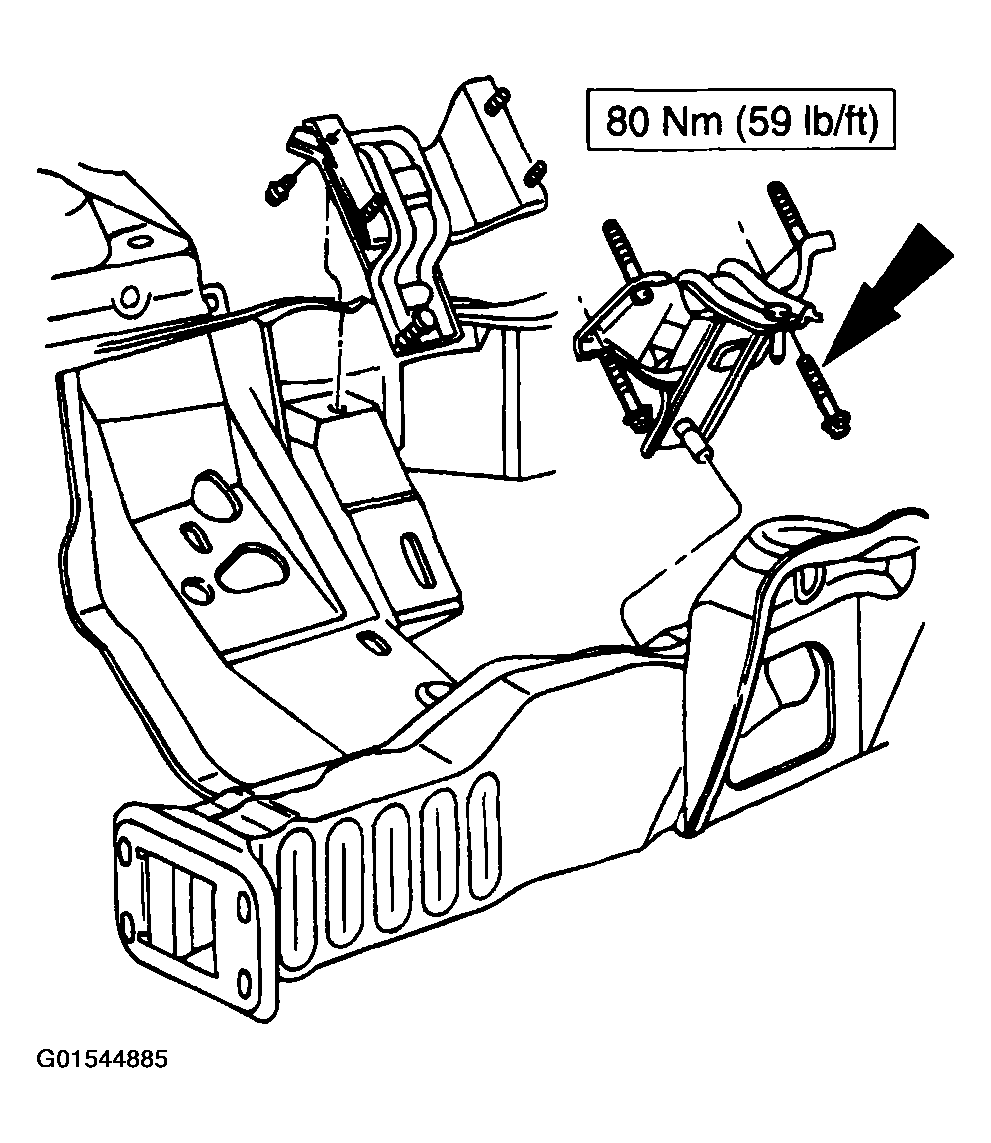

    Fig 1: Positioning Engine Mounts And Installing Bolts
    G01544885Courtesy of FORD MOTOR CO.
  1. Position the engine mounts and install the bolts.
  2. Install the starter motor if the RH engine mount was repaired. Refer to STARTERS .
  3. Lower the vehicle.
  4. Using a floor crane, remove the Heavy Duty Engine Support.

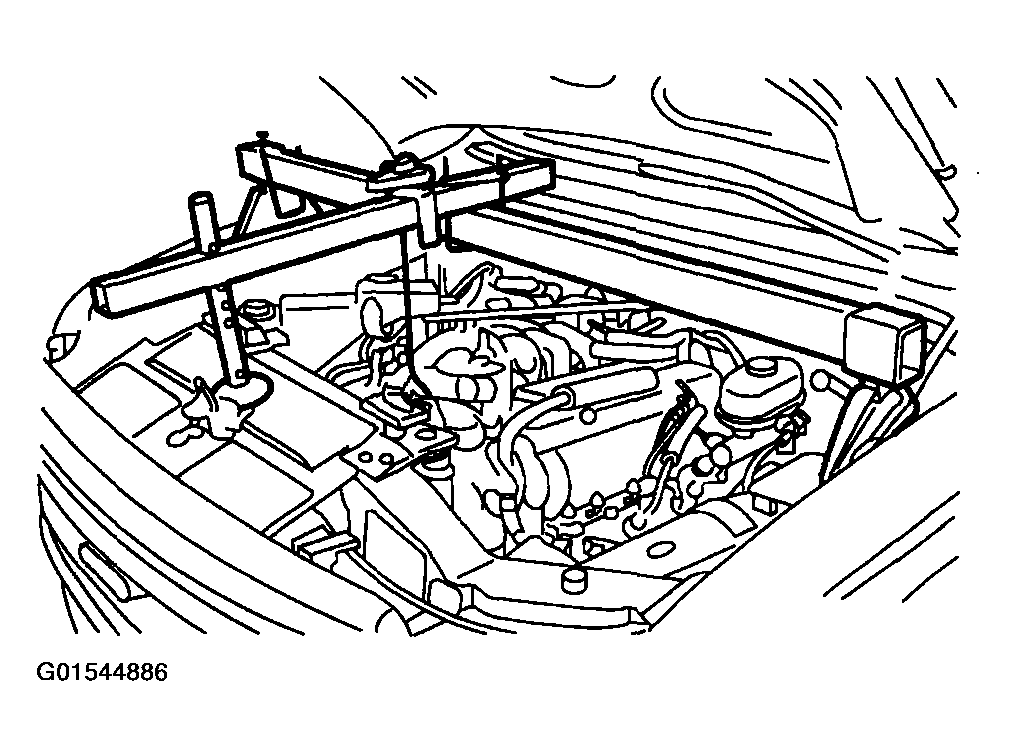

    Fig 2: Removing Heavy Duty Engine Support Using Floor Crane
    G01544886Courtesy of FORD MOTOR CO.
  5. Lower the engine and align the engine mount studs.
  6. Remove the floor crane.
  7. Raise and support the vehicle.
  8. Install the nuts.

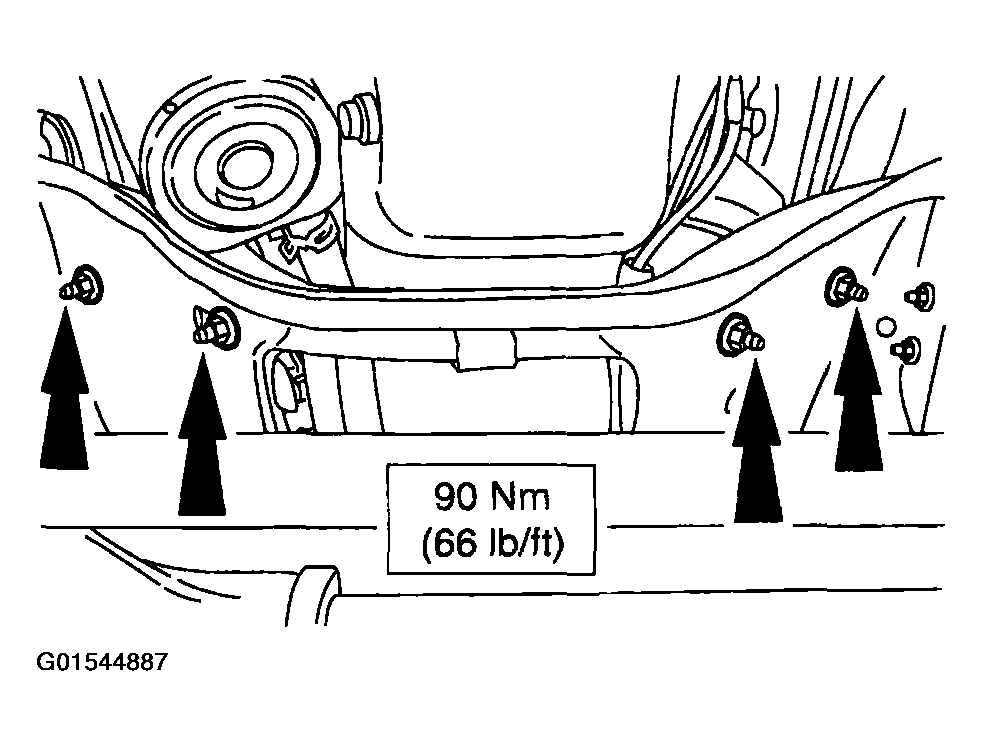

    Fig 3: Installing Nuts
    G01544887Courtesy of FORD MOTOR CO.
  9. Lower the vehicle.
  10. Remove the Modular Engine Support Bracket from the engine.

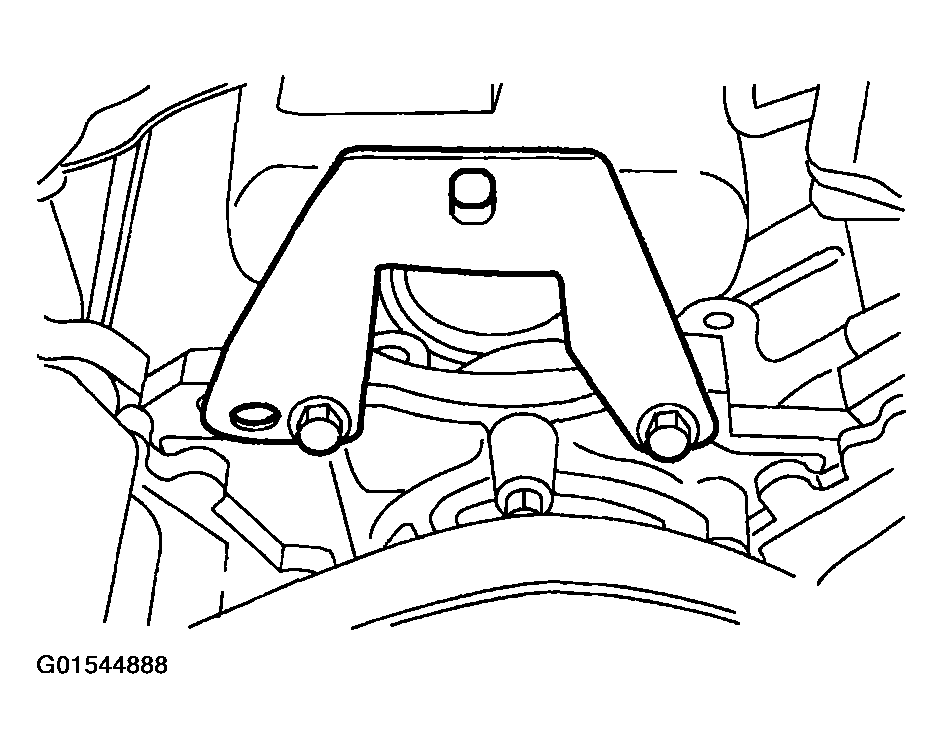

    Fig 4: Removing Modular Engine Support Bracket From Engine
    G01544888Courtesy of FORD MOTOR CO.
  11. Install the generator. Refer to GENERATORS & REGULATORS .
  12. Install the fan shroud.
  13. Install the throttle body adapter
    • Position a new throttle body adapter gasket.
    • Position the throttle body adapter.
    • Install four bolts and tighten in two stages:
      • Stage 1: Tighten to 9 Nm (80 lb-in).
      • Stage 2: Tighten an additional 85-95 degrees.

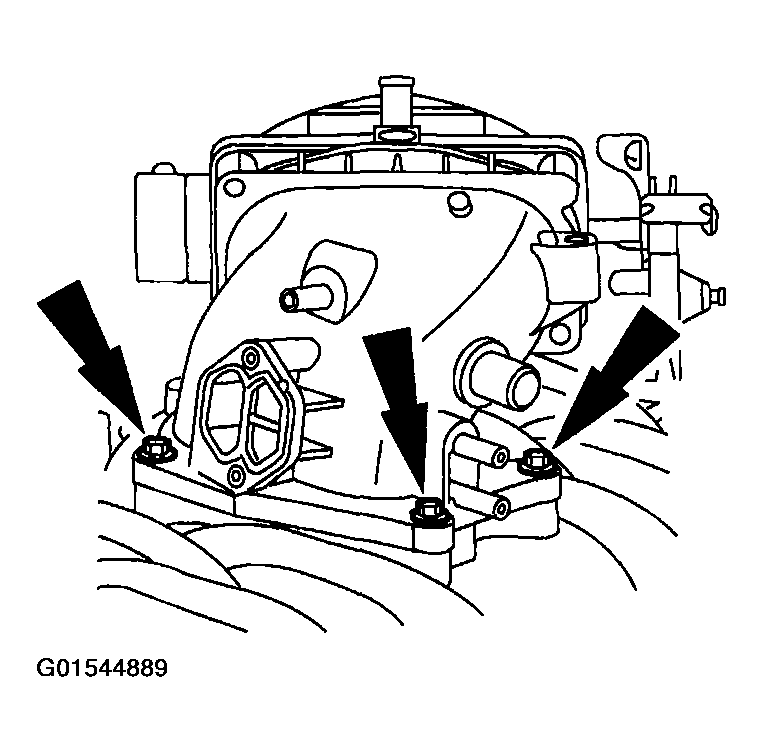

    Fig 5: Installing Throttle Body Adapter
    G01544889Courtesy of FORD MOTOR CO.
  14. NOTE: The EGR valve is shown removed for clarity.

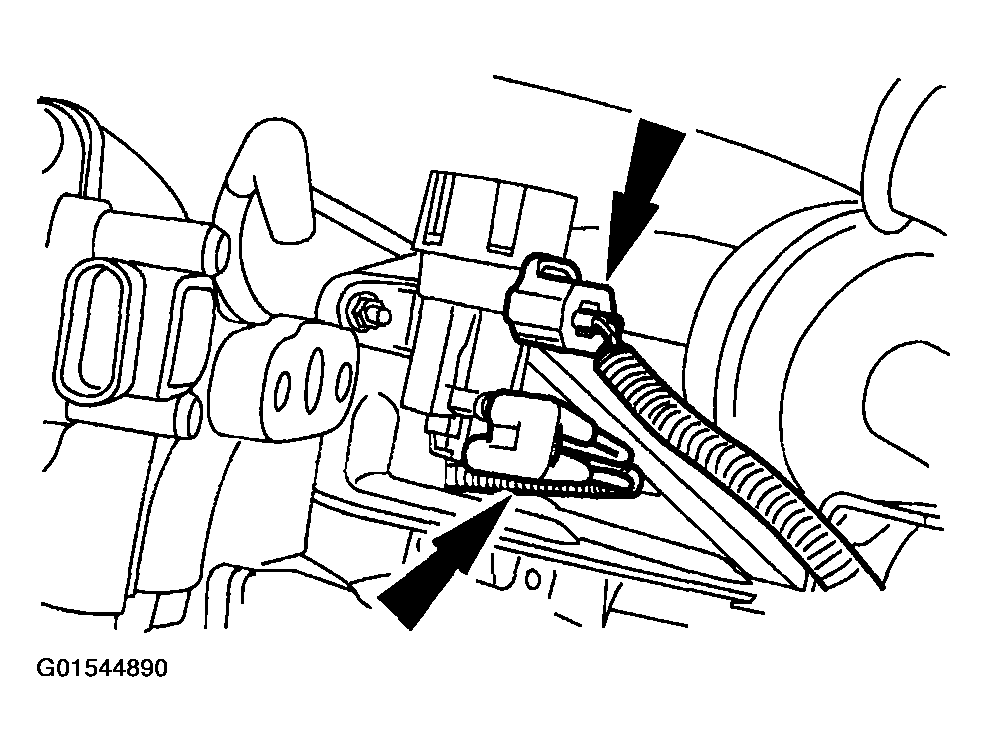

    Fig 6: Connecting EVR Solenoid Electrical And Vacuum Harness
    G01544890Courtesy of FORD MOTOR CO.
  15. If equipped, connect the EVR solenoid electrical and vacuum harness.
  16. If equipped, connect the EGR valve vacuum line.

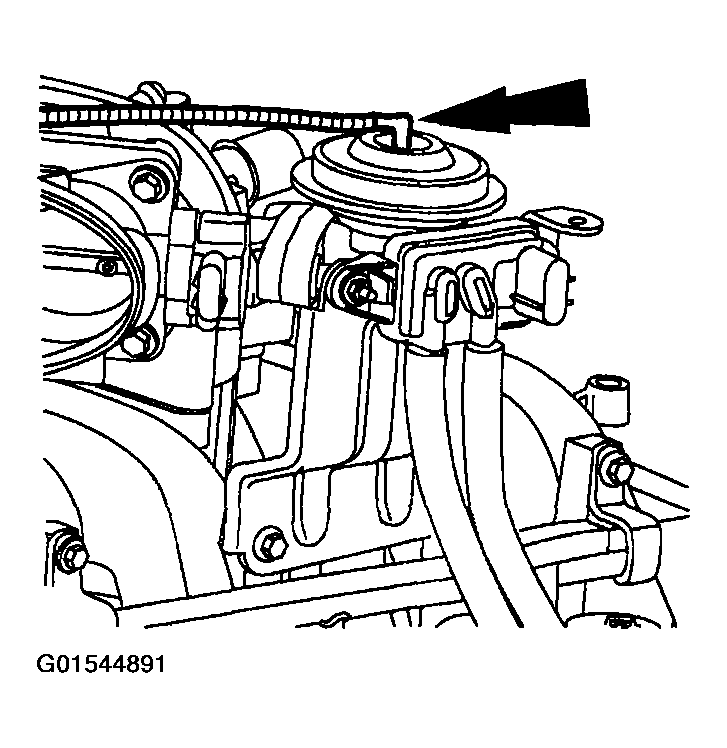

    Fig 7: Connecting EGR Valve Vacuum Line
    G01544891Courtesy of FORD MOTOR CO.
  17. If equipped, install the EGR valve-to-exhaust manifold tube.
    • Hand-tighten the fittings.
    • Tighten the upper fitting to 50 Nm (37 lb-ft).
    • Tighten the lower fitting to 50 Nm (37 lb-ft).

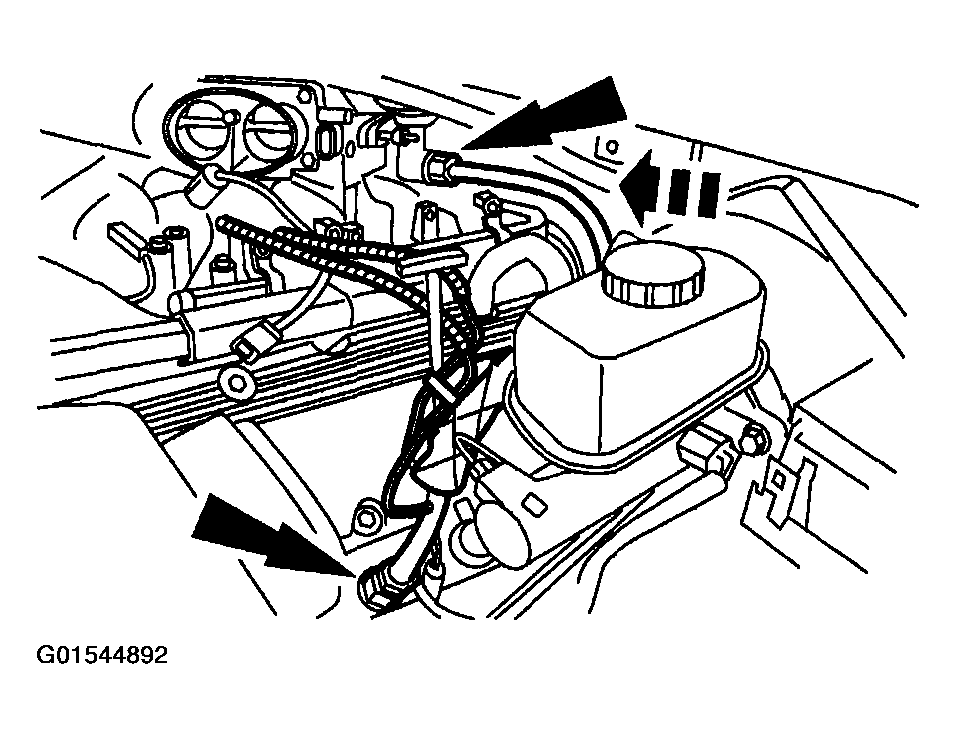

    Fig 8: Installing EGR Valve-To-Exhaust Manifold Tube
    G01544892Courtesy of FORD MOTOR CO.
  18. If equipped, install the EGR transducer bracket.
    • Position the bracket.
    • Install the bolts.

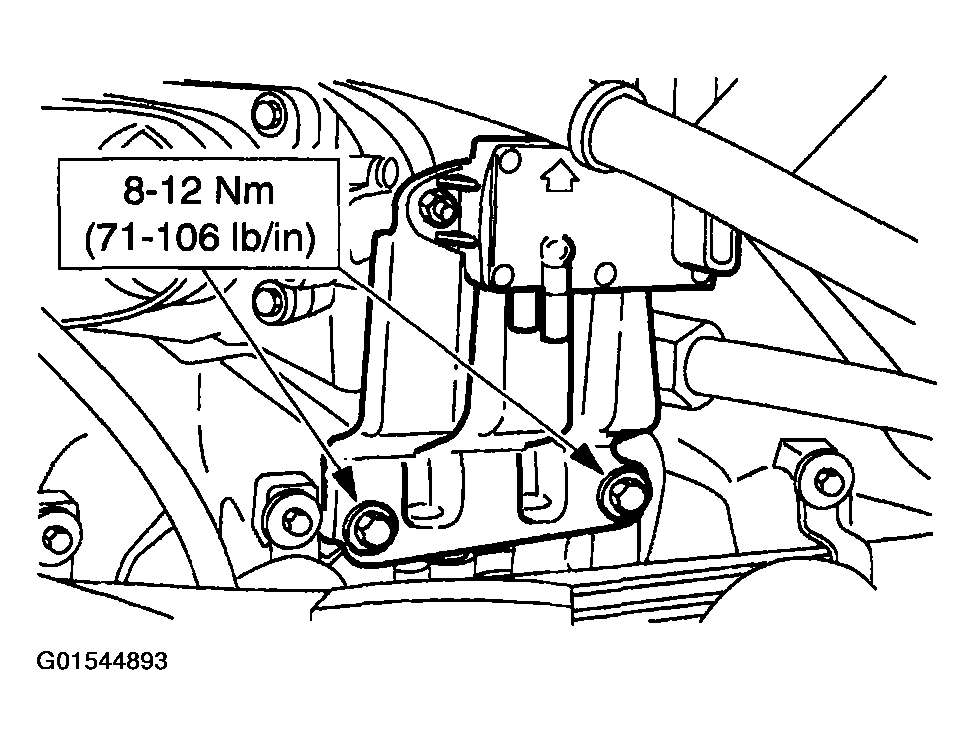

    Fig 9: Installing EGR Transducer Bracket
    G01544893Courtesy of FORD MOTOR CO.
  19. If equipped, connect the EGR transducer vacuum lines.
    Fig 10: Connecting EGR Transducer Vacuum Lines
    G01544894Courtesy of FORD MOTOR CO.
  20. If equipped, connect the EGR transducer and the throttle position sensor connectors.

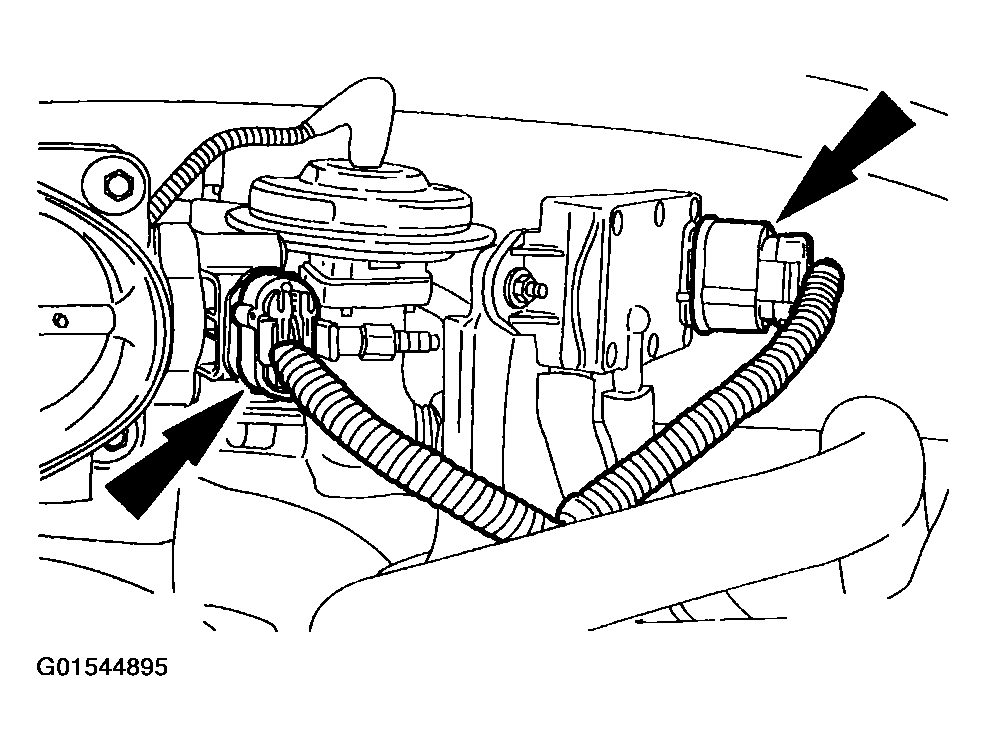

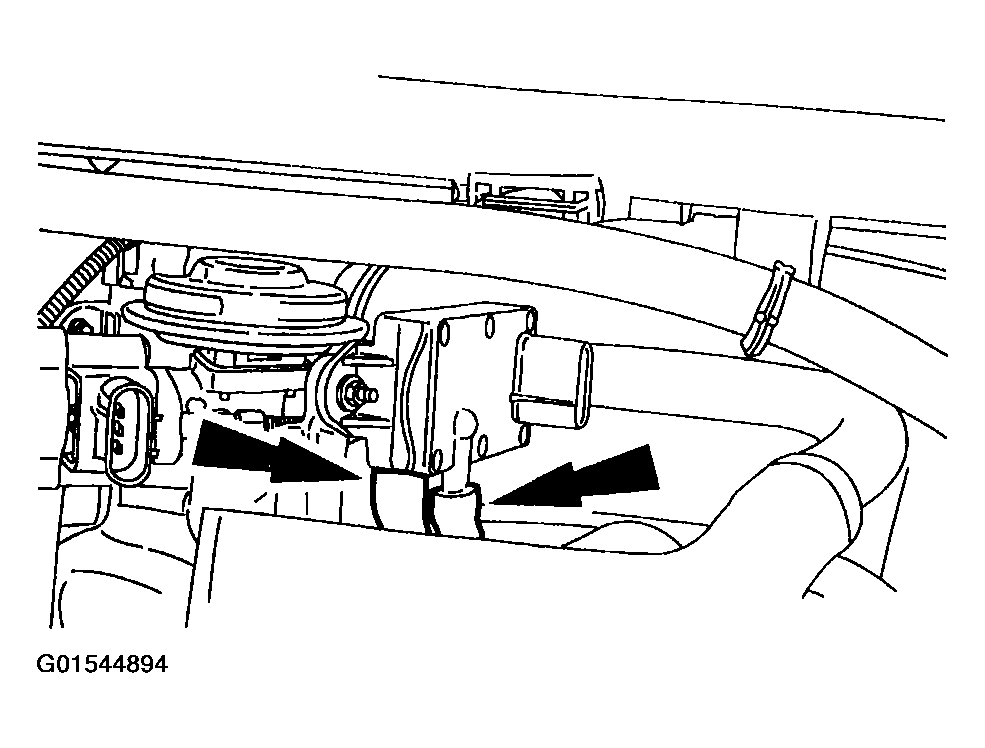

    Fig 11: Connecting EGR Transducer And Throttle Position Sensor Connectors
    G01544895Courtesy of FORD MOTOR CO.
  21. Connect the heater hose.

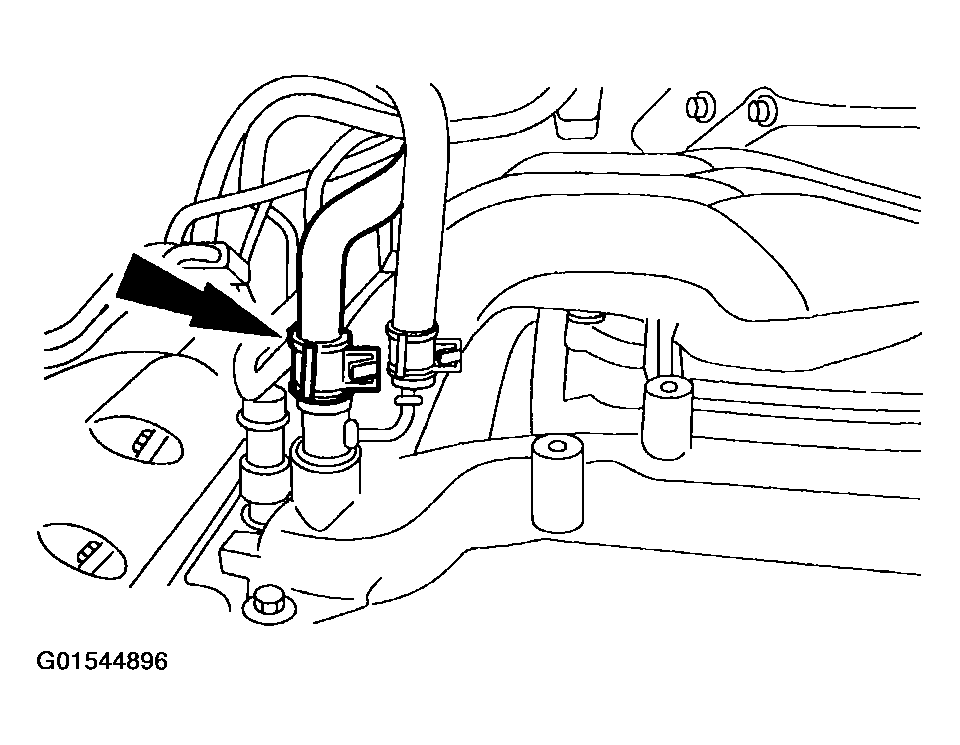

    Fig 12: Connecting Heater Hose
    G01544896Courtesy of FORD MOTOR CO.
  22. Connect the idle air control motor electrical connector and the bypass hose.

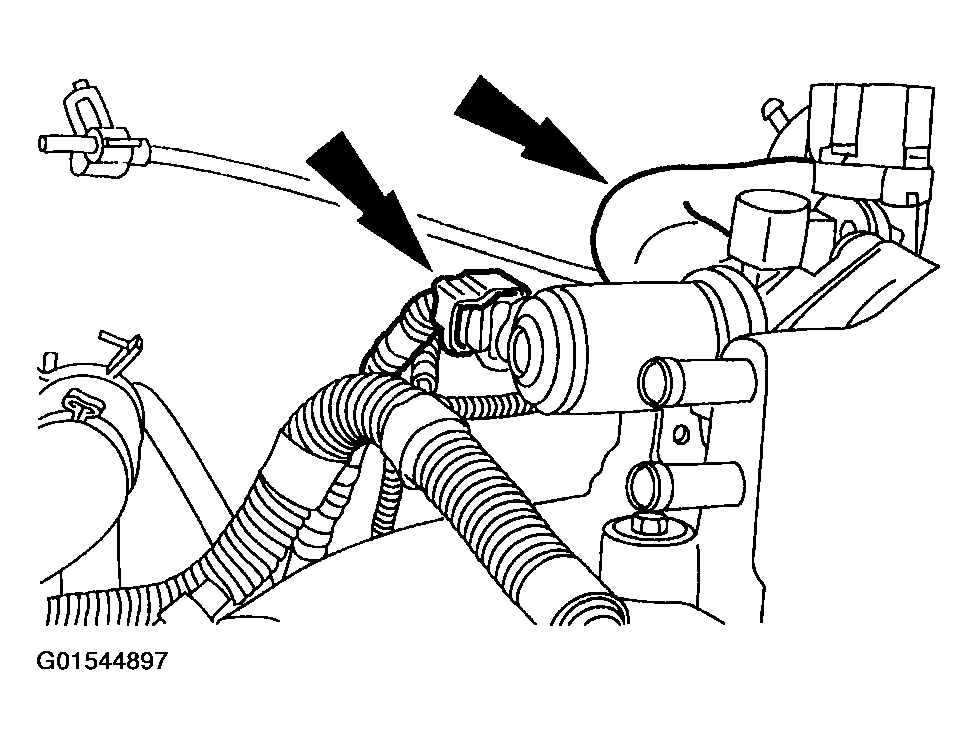

    Fig 13: Connecting Idle Air Control Motor Electrical Connector And Bypass Hose
    G01544897Courtesy of FORD MOTOR CO.
  23. Connect the vacuum line.

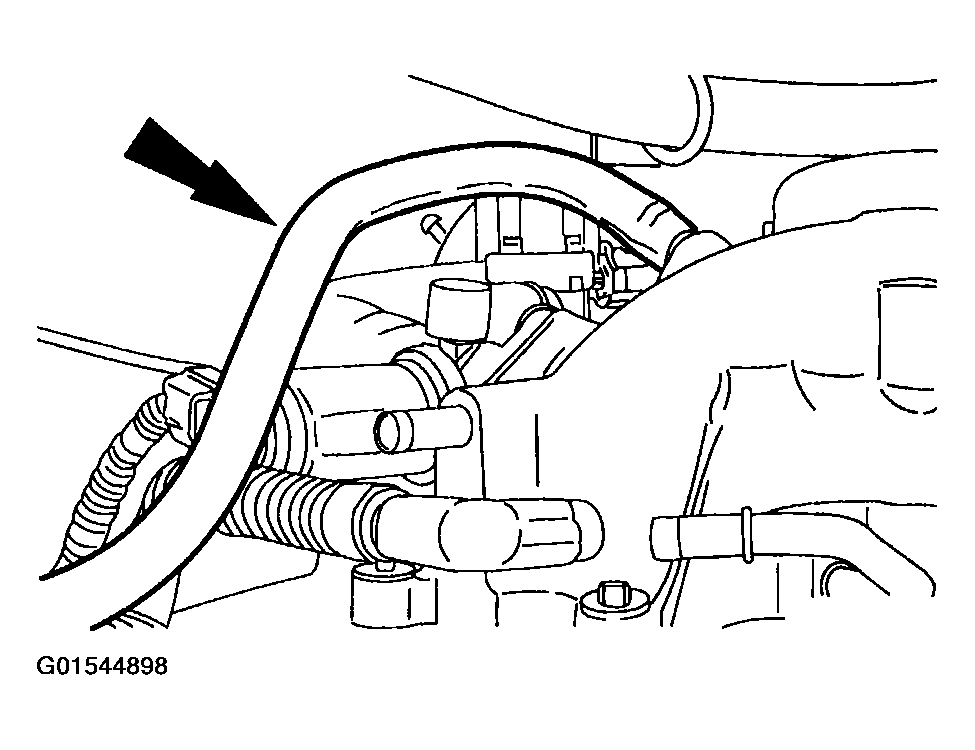

    Fig 14: Connecting Vacuum Line
    G01544898Courtesy of FORD MOTOR CO.
  24. Connect the following vacuum lines:
    • brake booster
    • engine sensor control wiring harness

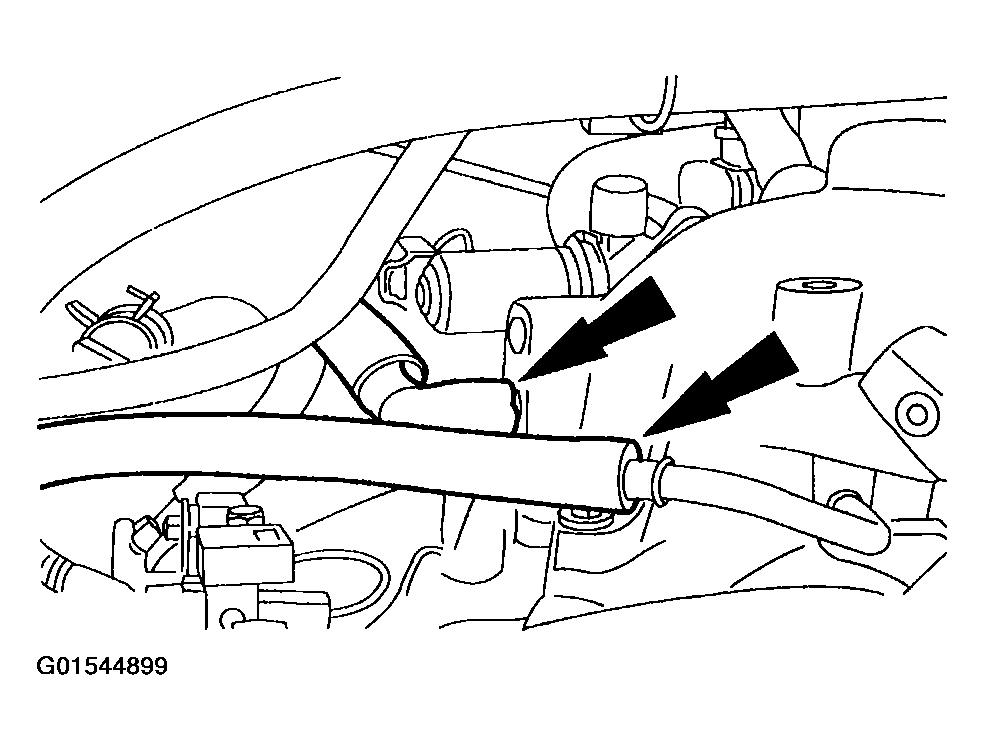

    Fig 15: Connecting Brake Booster Vacuum Lines
    G01544899Courtesy of FORD MOTOR CO.
  25. Connect the PCV vacuum and coolant hoses.

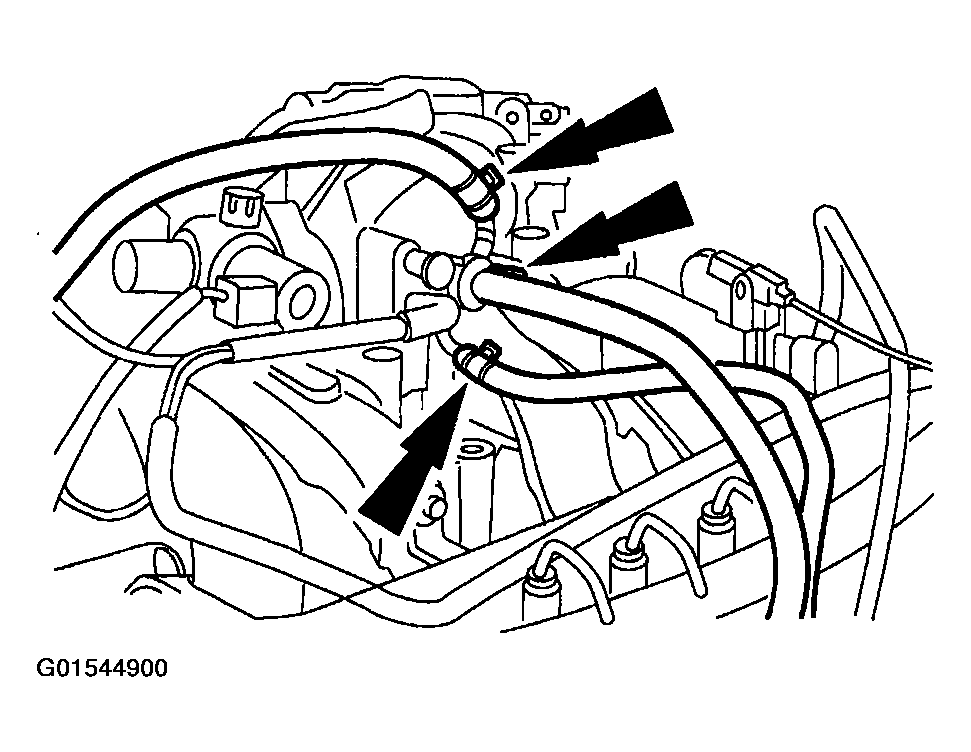

    Fig 16: Connecting PCV Vacuum And Coolant Hoses
    G01544900Courtesy of FORD MOTOR CO.
  26. Install the accelerator cable bracket.
    • Position the bracket and cables.
    • Install the bolts.

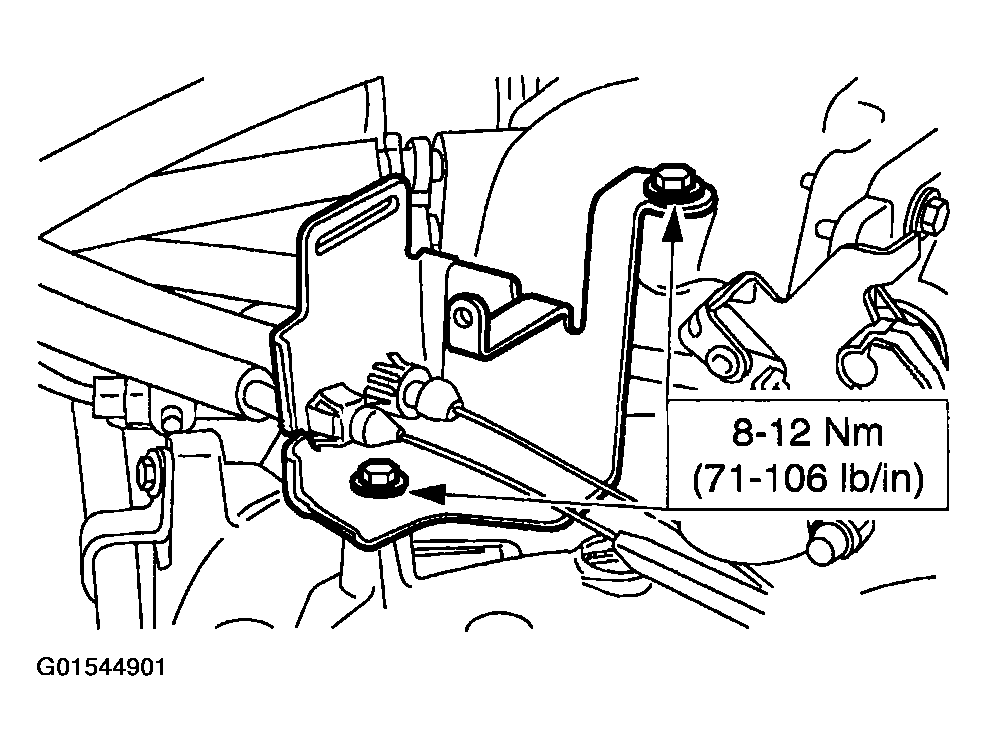

    Fig 17: Installing Accelerator Cable Bracket
    G01544901Courtesy of FORD MOTOR CO.
  27. Connect the accelerator and speed control cables and return spring.

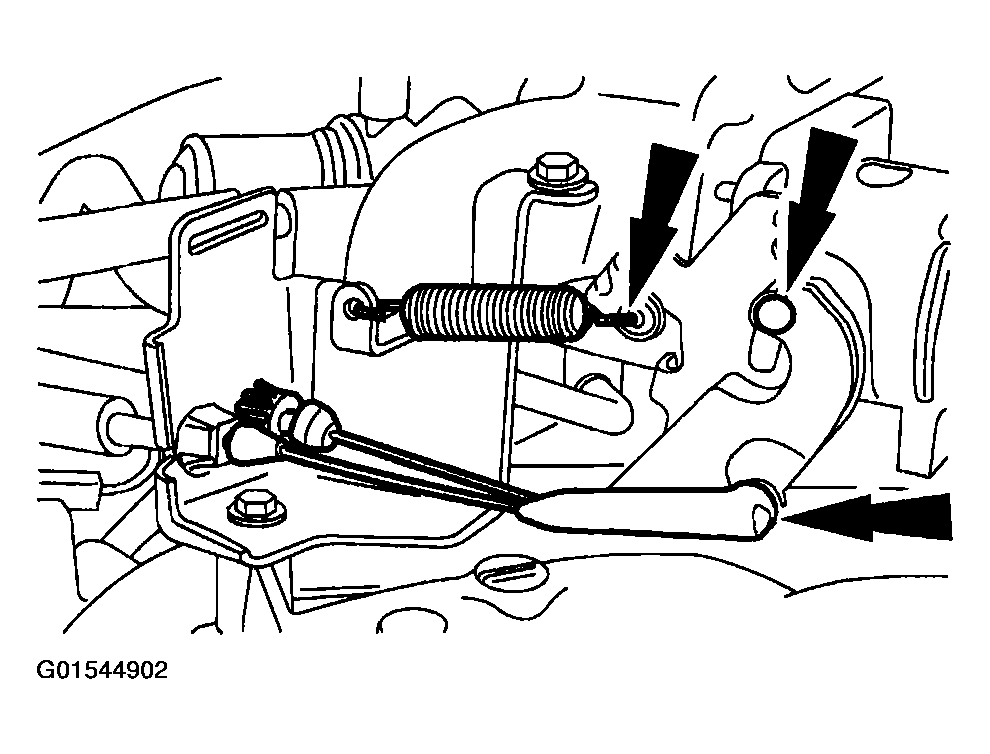

    Fig 18: Connecting Accelerator And Speed Control Cables And Return Spring
    G01544902Courtesy of FORD MOTOR CO.
  28. Install the accelerator cable splash shield.

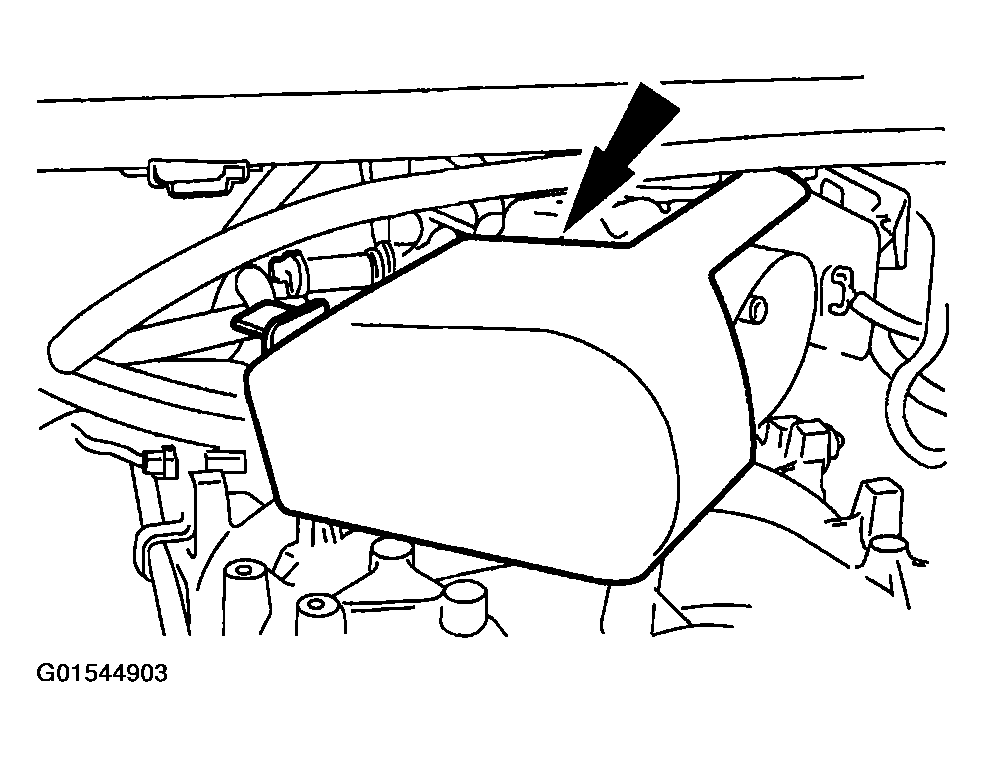

    Fig 19: Installing Accelerator Cable Splash Shield
    G01544903Courtesy of FORD MOTOR CO.
  29. Install the air cleaner outlet tube.
  30. Connect the battery ground cable.
  31. Connect the upper radiator hose to the radiator.
  32. Fill the engine with clean engine oil.
  33. Fill and bleed the cooling system. Refer to ENGINE COOLING .
