Overhaul - Transfer Case: Identification

NOTE: For disassembled view of NV271 transfer case, see Fig 1 and Fig 2 . For disassembled view of NV273 transfer case, see Fig 3 and Fig 4 .

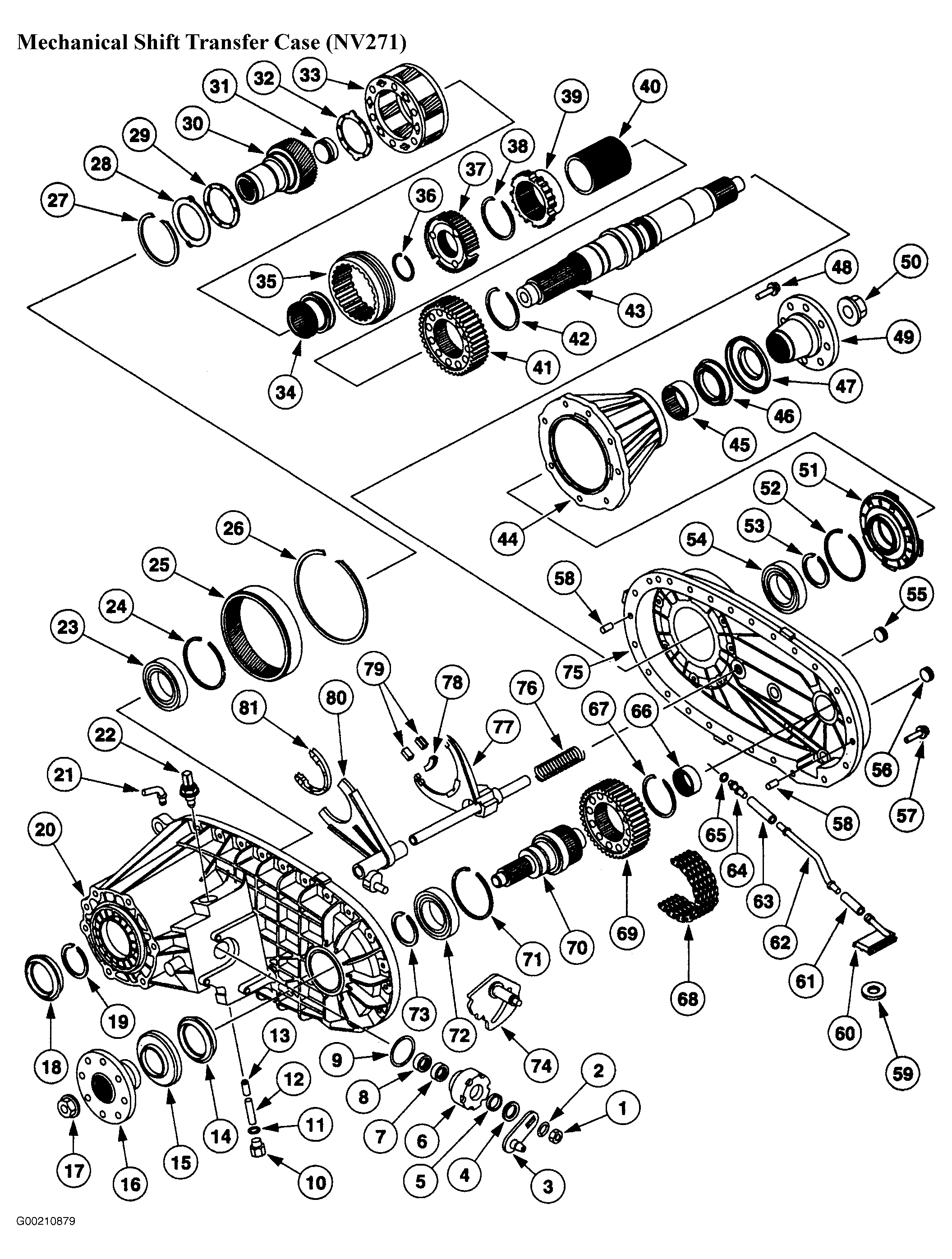

Fig 1: Identifying Transfer Case Components (NV271 - 1 Of 2)

Courtesy of FORD MOTOR CO.

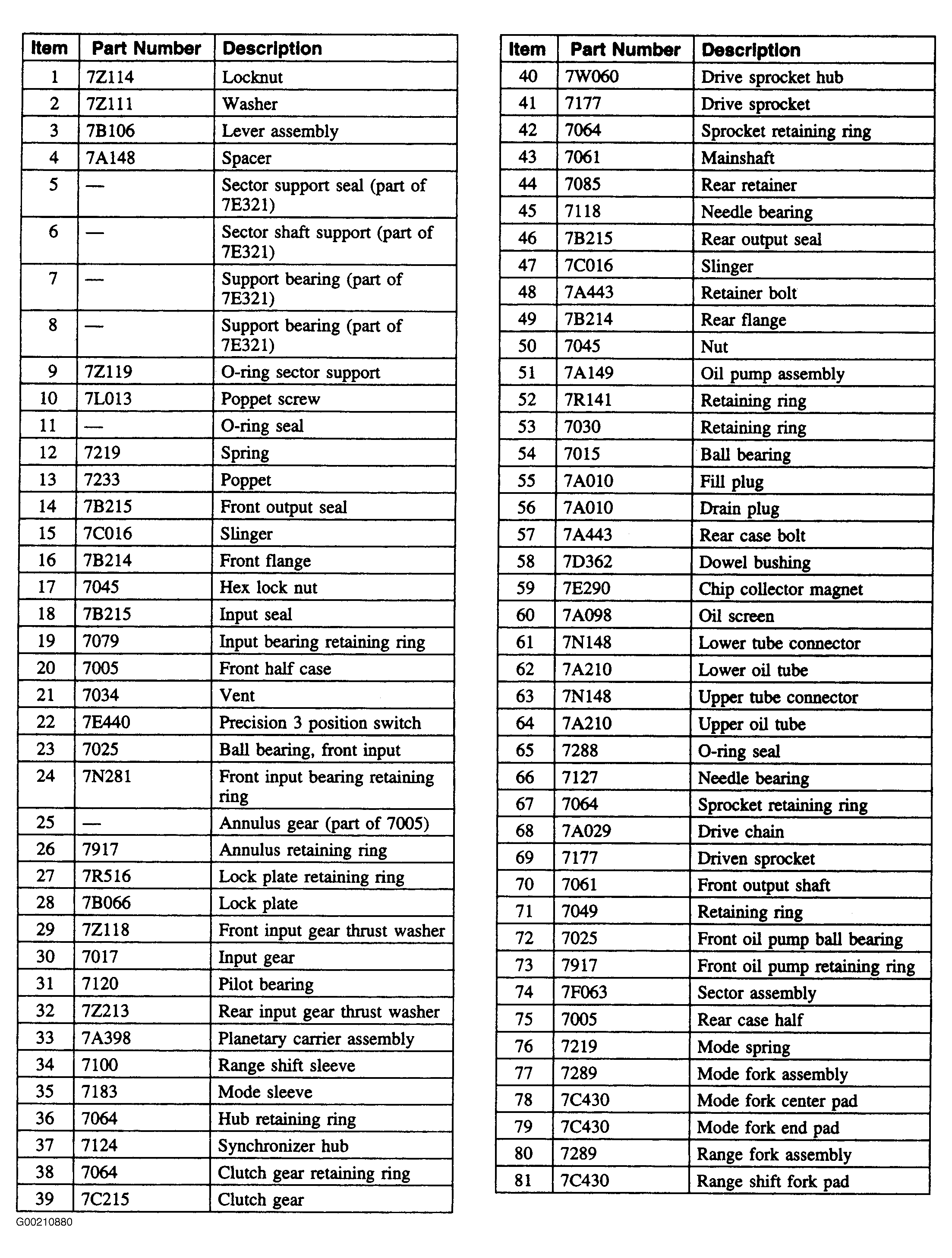

Fig 2: Identifying Transfer Case Components (NV271 - 2 Of 2)

Courtesy of FORD MOTOR CO.

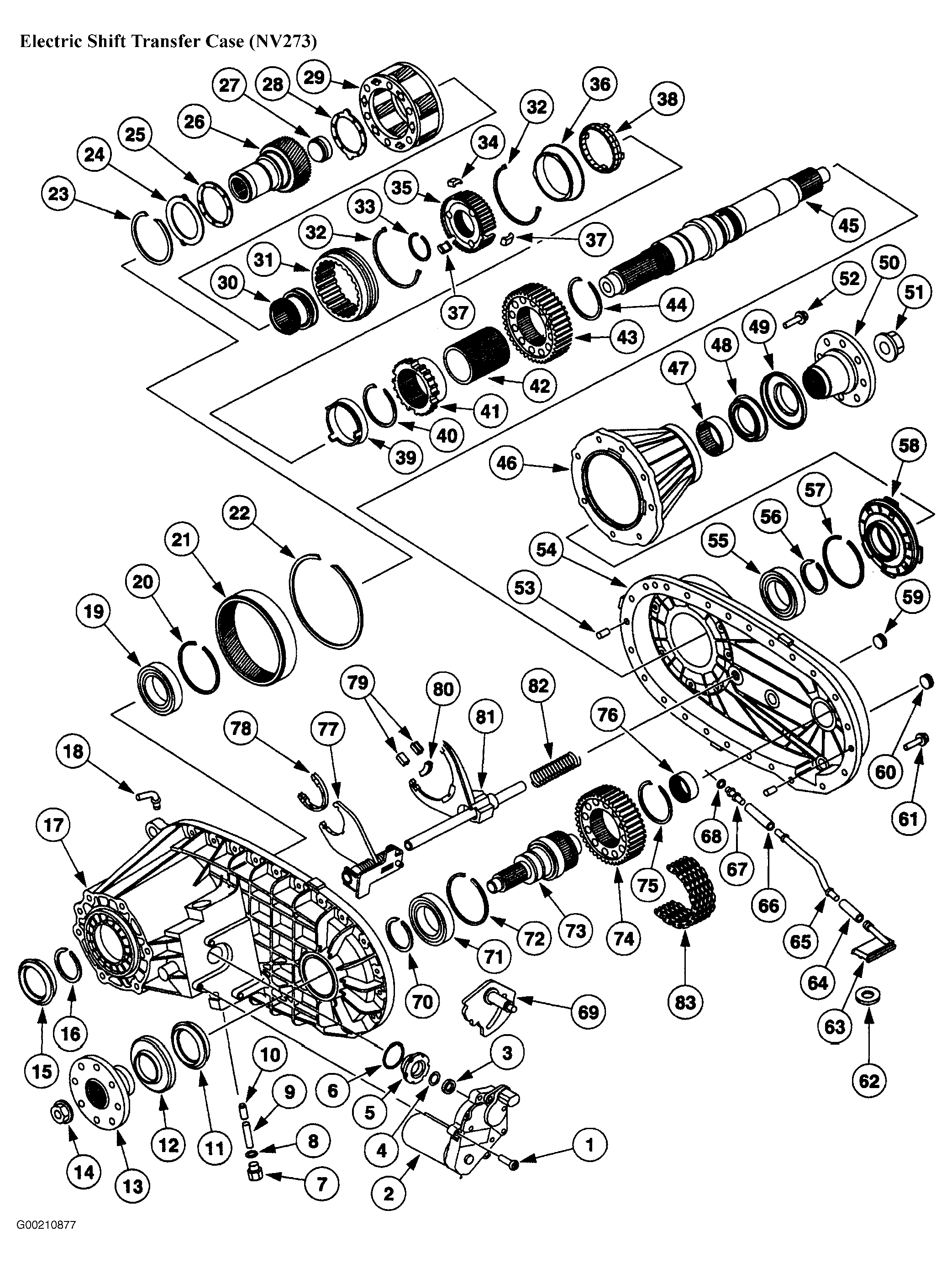

Fig 3: Identifying Transfer Case Components (NV273 - 1 Of 2)

Courtesy of FORD MOTOR CO.

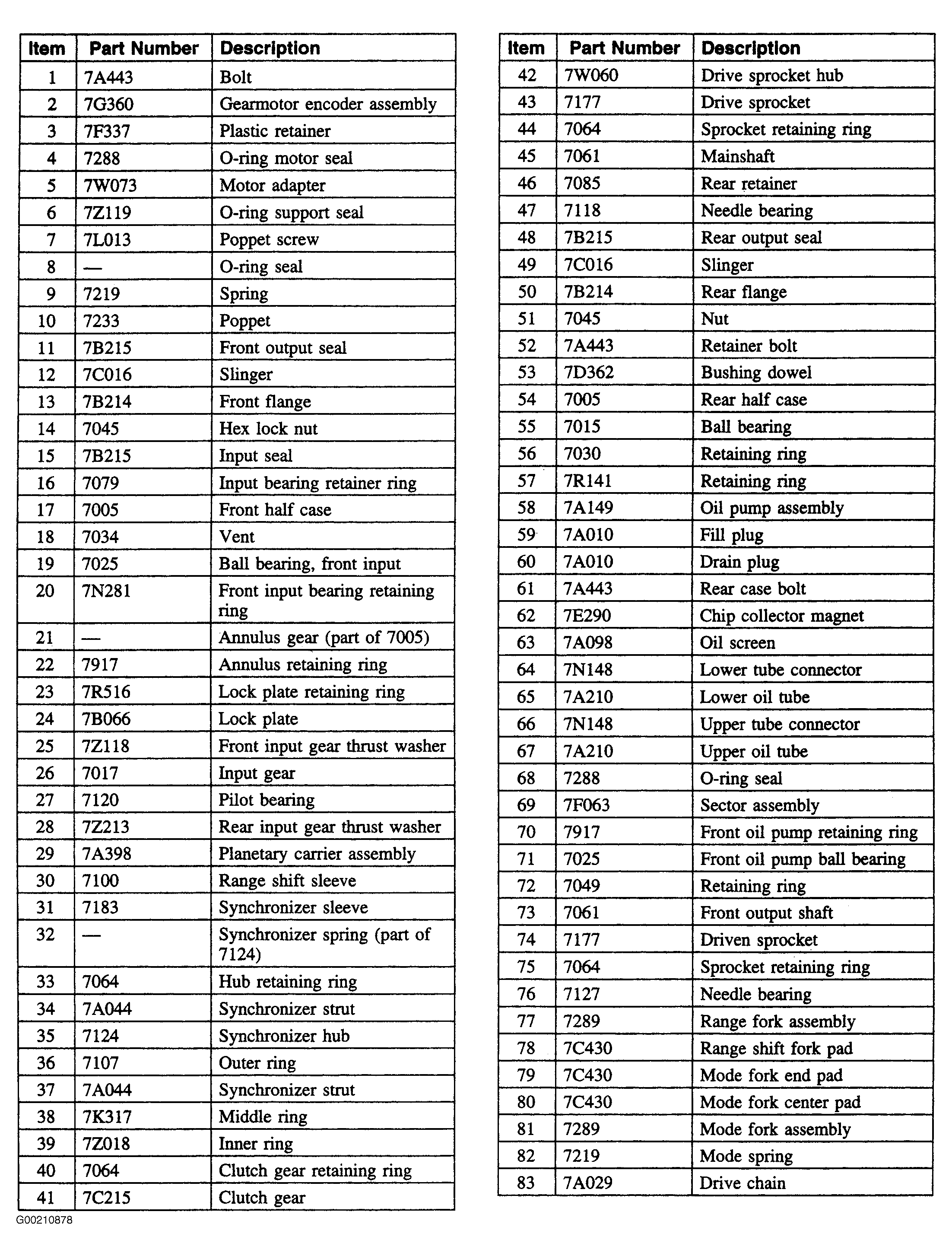

Fig 4: Identifying Transfer Case Components (NV273 - 2 Of 2)

Courtesy of FORD MOTOR CO.
