Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

VEHICLES EQUIPPED WITH 2.0L ZETEC ENGINE

Disconnect the speed control cable from the throttle control linkage and bracket.

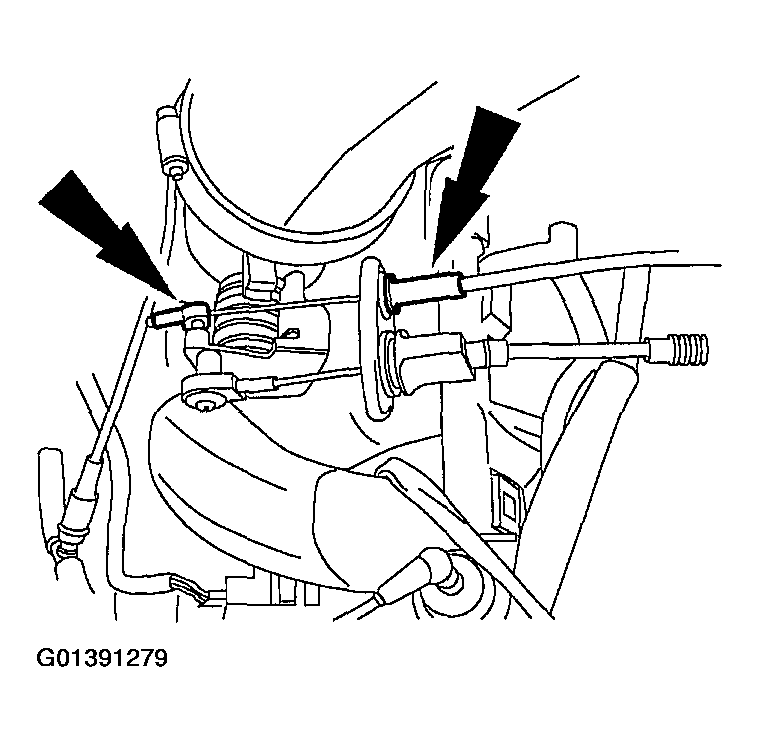

Fig 1: Disconnecting Speed Control Cable From Throttle Control Linkage And Bracket
Courtesy of FORD MOTOR CO.

VEHICLES EQUIPPED WITH 3.0L (4V) ENGINE
Disconnect the speed control cable from the throttle control linkage and bracket.
1. Disconnect the cable from the throttle control linkage.
2. Squeeze the tabs and disconnect the speed control cable from the bracket

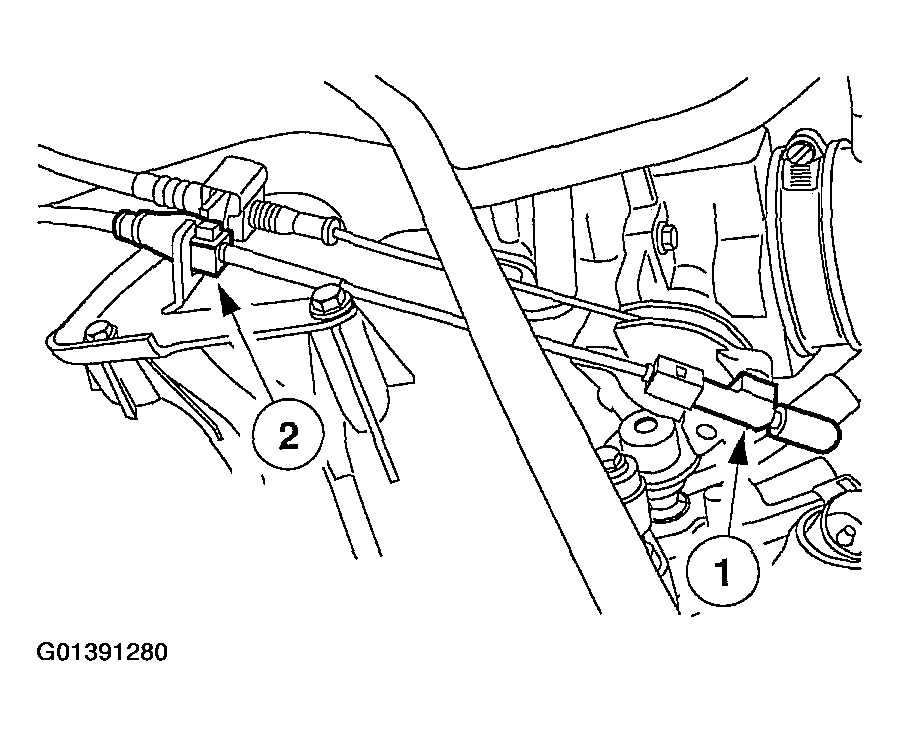

  Fig 2: Disconnecting Speed Control Cable From Throttle Control Linkage And Bracket
  Courtesy of FORD MOTOR CO.
ALL VEHICLES
Release the speed control cable cap.
1. Depress the speed control cable cap retaining tab.
2. Rotate the speed control cable cap.

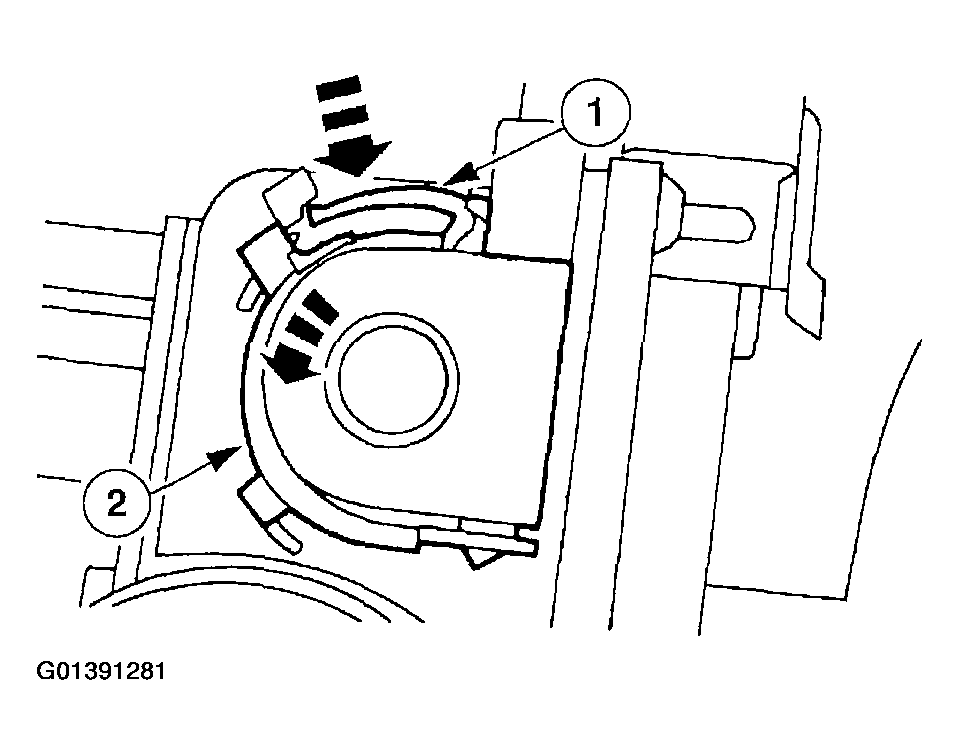

  Fig 3: Releasing Speed Control Cable Cap
  Courtesy of FORD MOTOR CO.
Remove the speed control cable.
1. Depress the spring retainer.
2. Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

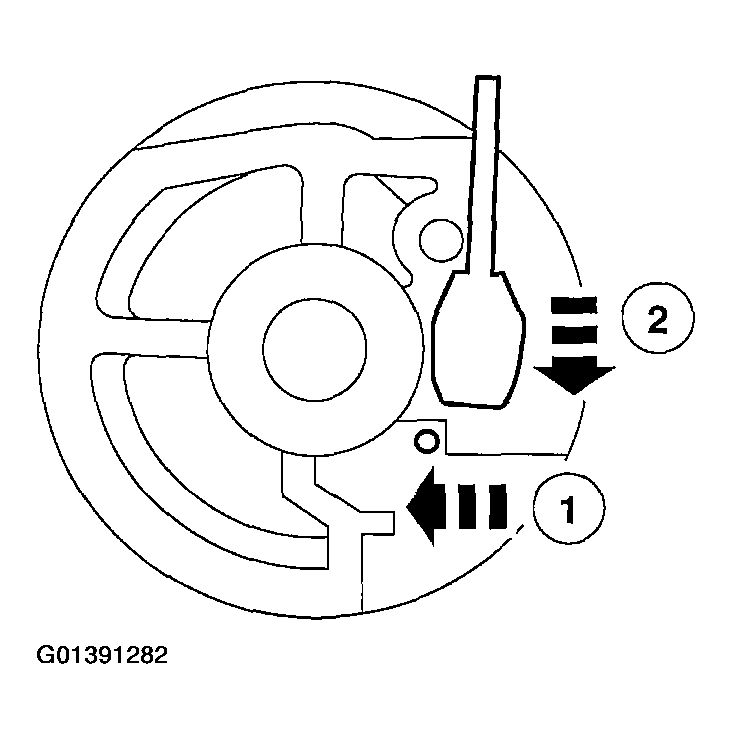

  Fig 4: Removing Speed Control Cable
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
