Speed Control Deactivator Switch: Removal

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the deactivator switch.
  1. Disconnect the electrical connector.
  2. Rotate counterclockwise 45 degrees and remove the deactivator switch.

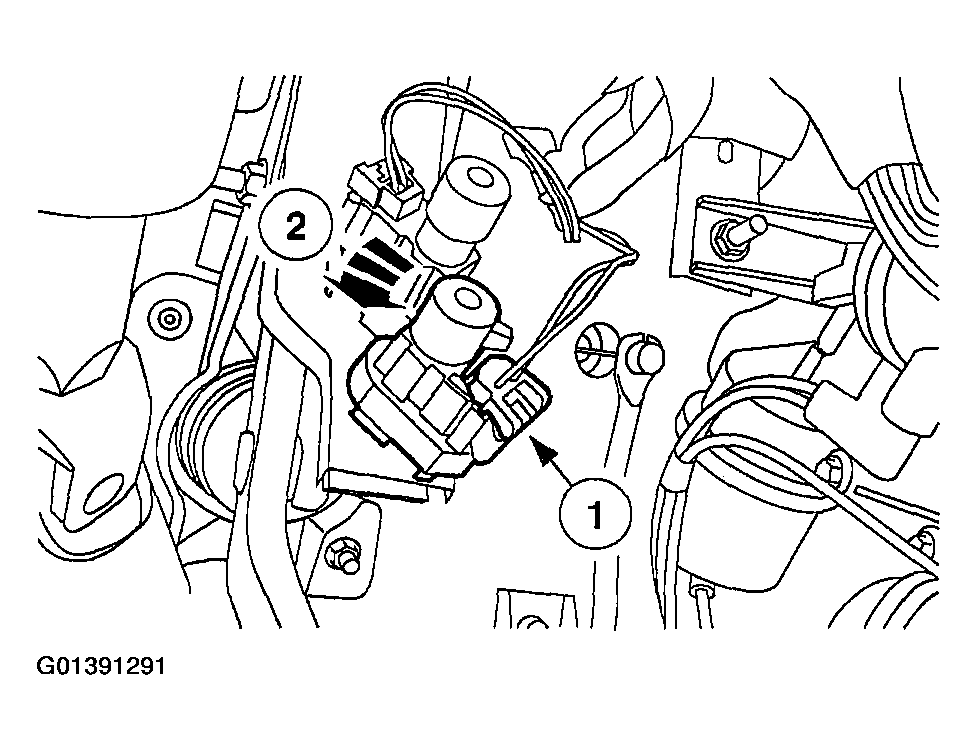

    Fig 1: Removing Deactivator Switch
    G01391291Courtesy of FORD MOTOR CO.
