Tracer Dye Leak Detection: Notes

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

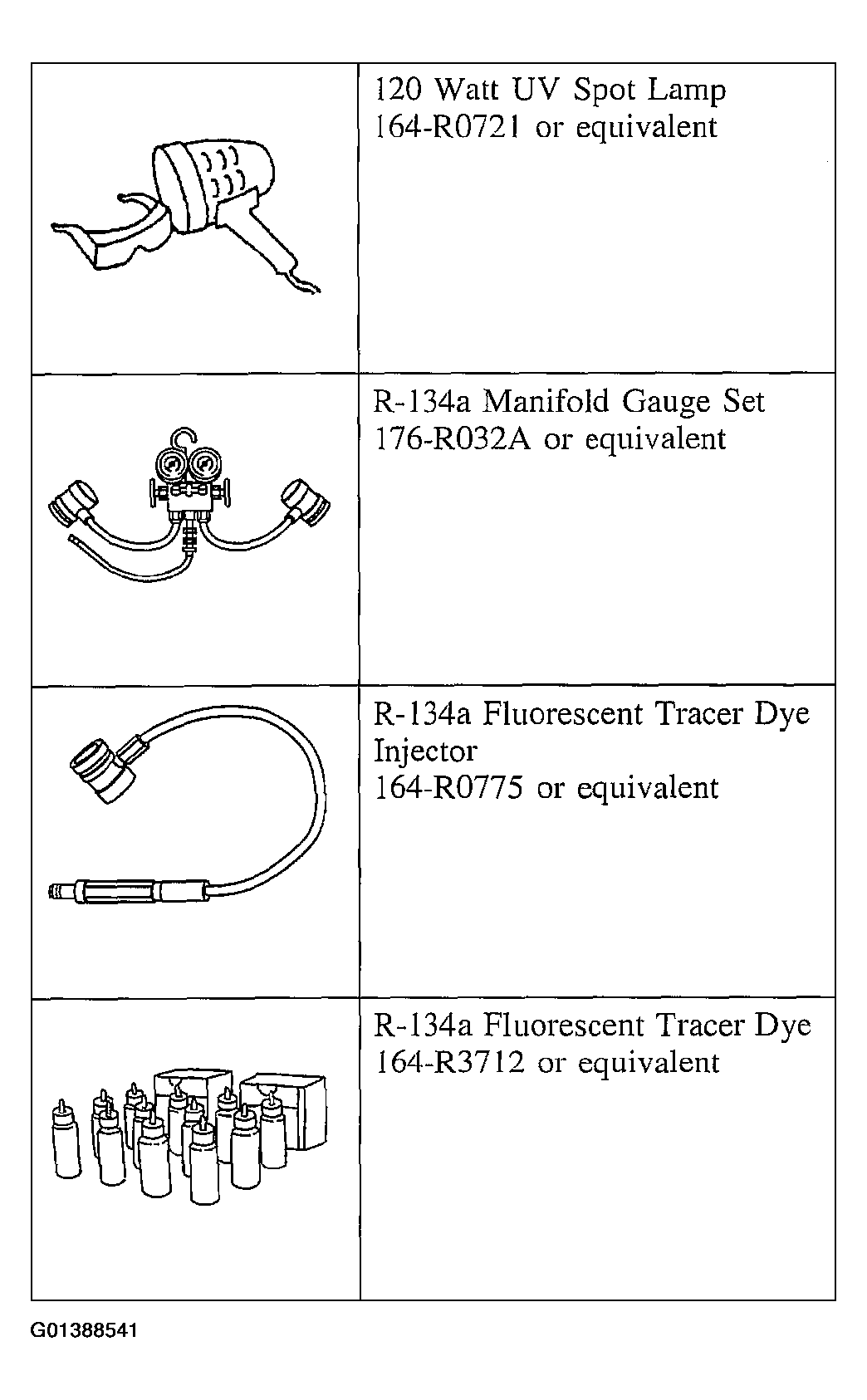

Fig 1: Special Tool (Tracer Dye Leak Detection)

Courtesy of FORD MOTOR CO.

NOTE: Ford Motor Company vehicles are produced with R-134a Leak Tracer Dye incorporated into the A/C system. The location of leaks can be pinpointed by the bright yellow-green glow of the tracer dye. Since more than one leak can exist, always inspect each component.

Check for leaks using a 120-watt UV spot lamp.

Fig 2: Checking For Leaks Spot Lamp
Courtesy of FORD MOTOR CO.
Scan all components, fittings and lines of the A/C system.
After the leak is repaired, remove any traces of leak dye with a general purpose oil solvent.
Verify the repair by operating the system for a short time and inspecting with the UV spot lamp.

Fig 3: Verifying Repair By Operating System For A Short Time And Inspecting With UV Spot Lamp
Courtesy of FORD MOTOR CO.
