Anti-lock Brake System Module With Stability Assist C155

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

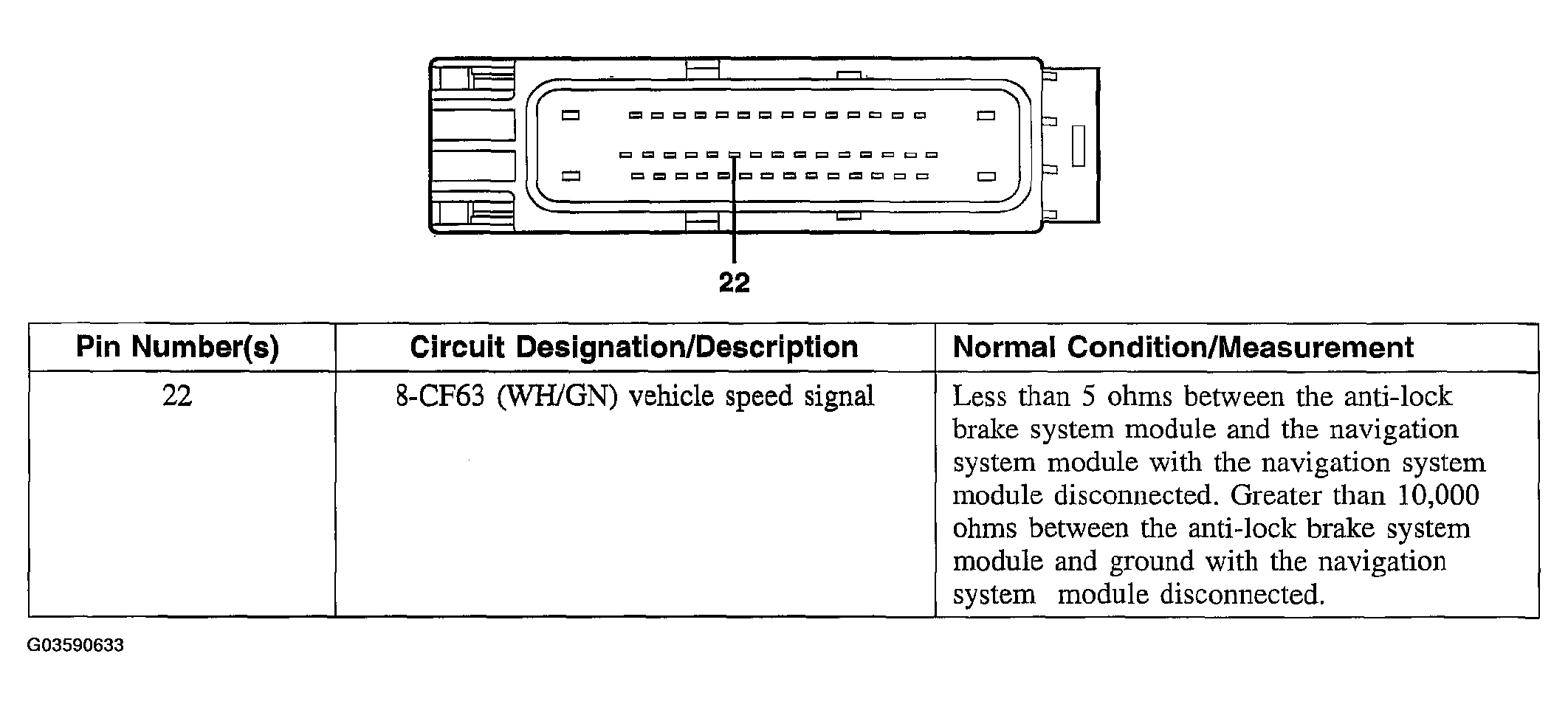

Fig 1: Identifying Anti-Lock Brake System Module With Stability Assist C155
G03590633Courtesy of FORD MOTOR CO.
