Possible Causes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

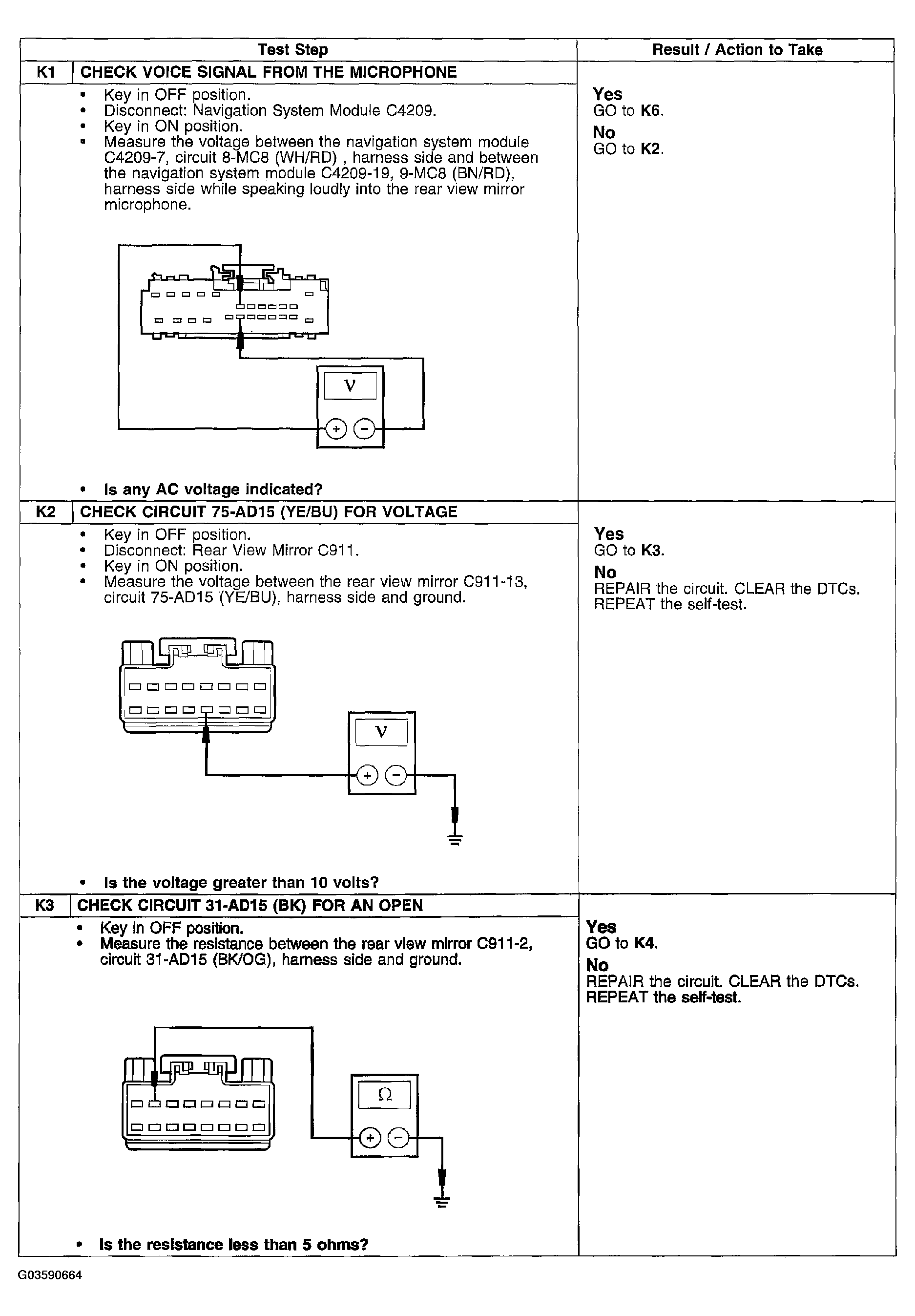

Fig 1: Pinpoint Test K: DTC B2633 Driver - Front Microphone Circuit Failure (Step K1-K3)
G03590664Courtesy of FORD MOTOR CO.

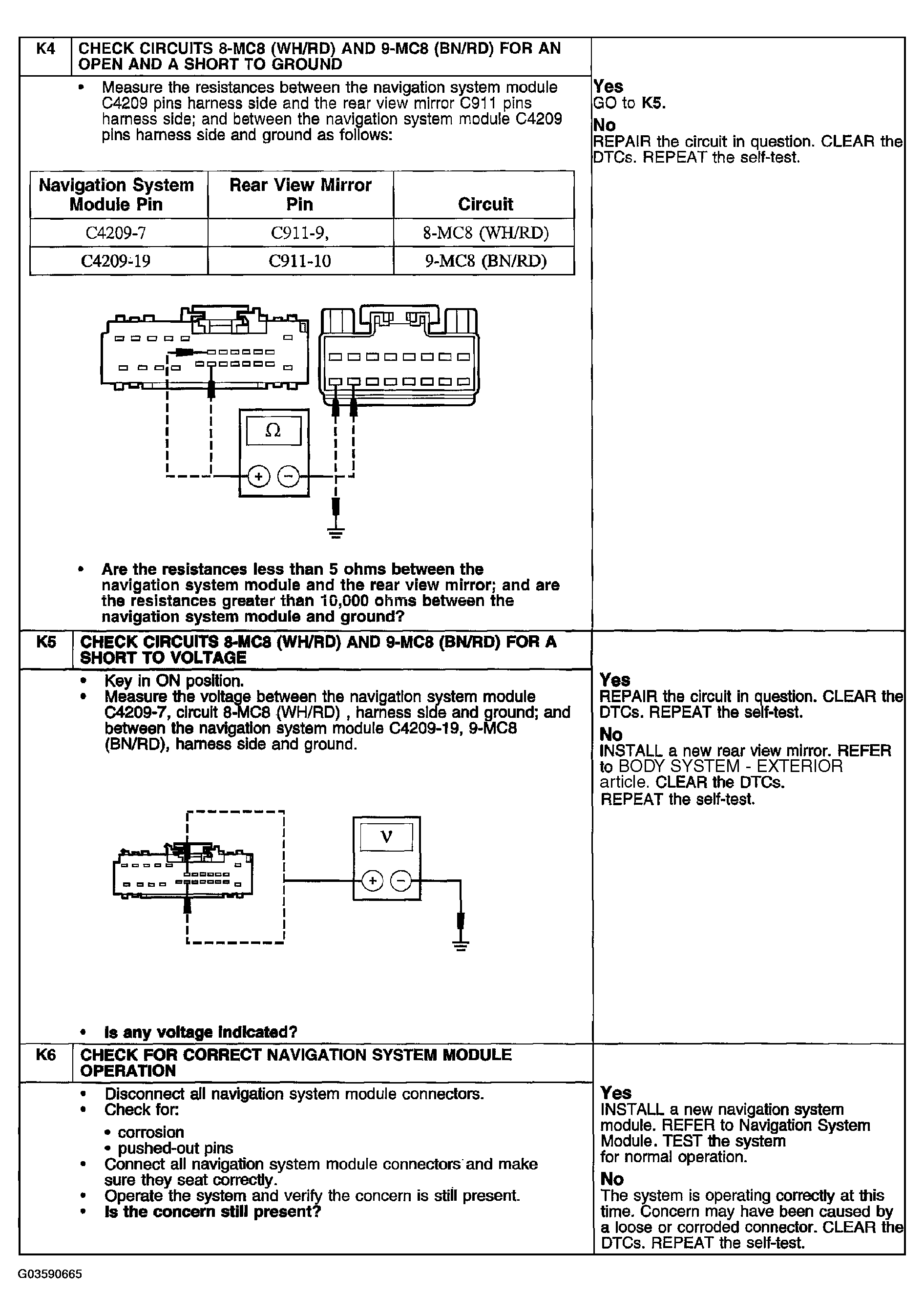

Fig 2: Pinpoint Test K: DTC B2633 Driver - Front Microphone Circuit Failure (Step K4-K6)
G03590665Courtesy of FORD MOTOR CO.
