Mode Select Switch (MSS) C284 (2-Speed Torque On Demand [TOD])

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

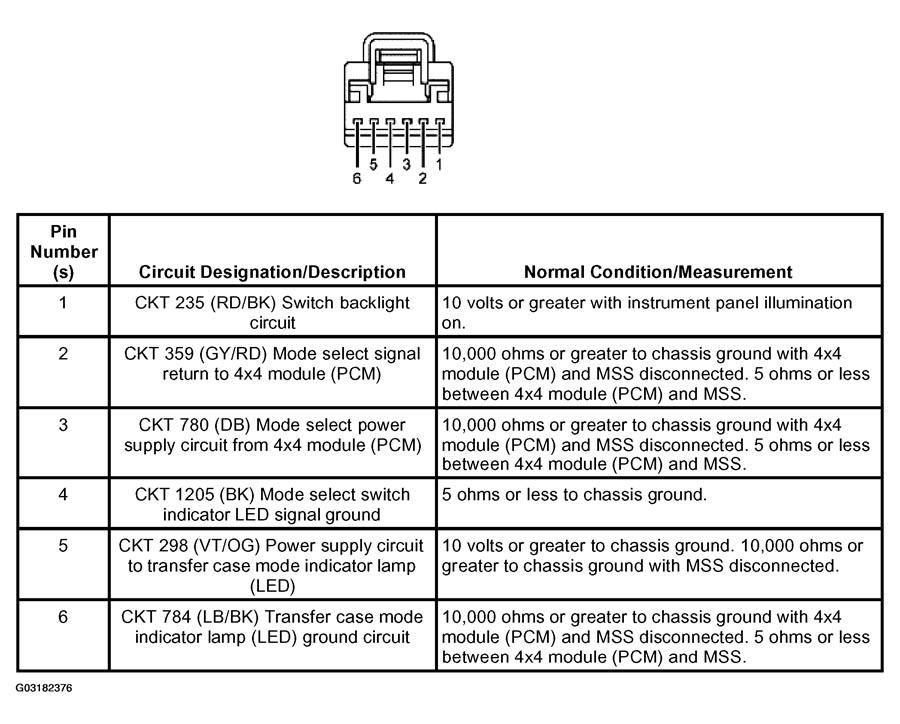

Fig 1: Identifying Mode Select Switch (MSS) C284 (2-Speed Torque On Demand [TOD]) Connector Pin
G03182376Courtesy of FORD MOTOR CO.
