Item 28: Bearing Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the bearing.

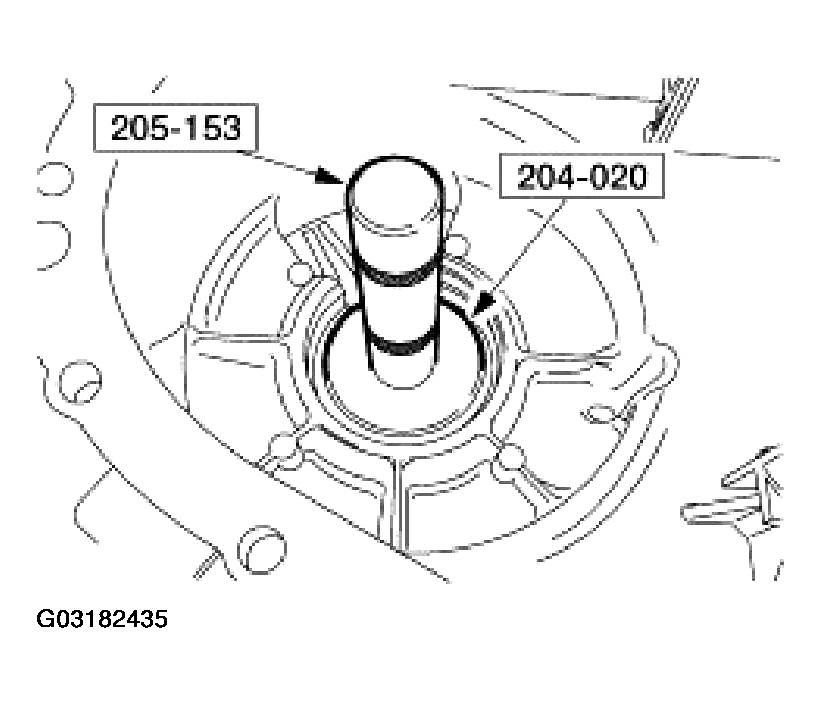

    Fig 1: Installing Bearing
    G03182435Courtesy of FORD MOTOR CO.
