Item 9: Transfer Case Shift Motor Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shift motor, front output shaft speed sensor and rear output shaft speed sensor as an assembly.

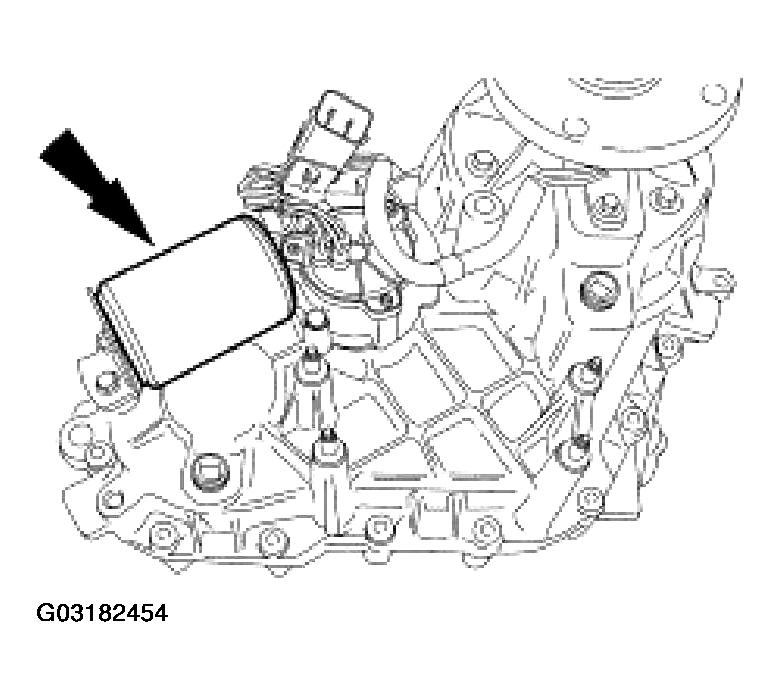

    Fig 1: Removing Transfer Case Shift Motor
    G03182454Courtesy of FORD MOTOR CO.
