Disassembly & Assembly

WARNING: This page is about a different variant/trim than selected.

Remove the piston pin retainers.
NOTE: Mark the connecting rod and piston to make sure correct orientation on reassembly.

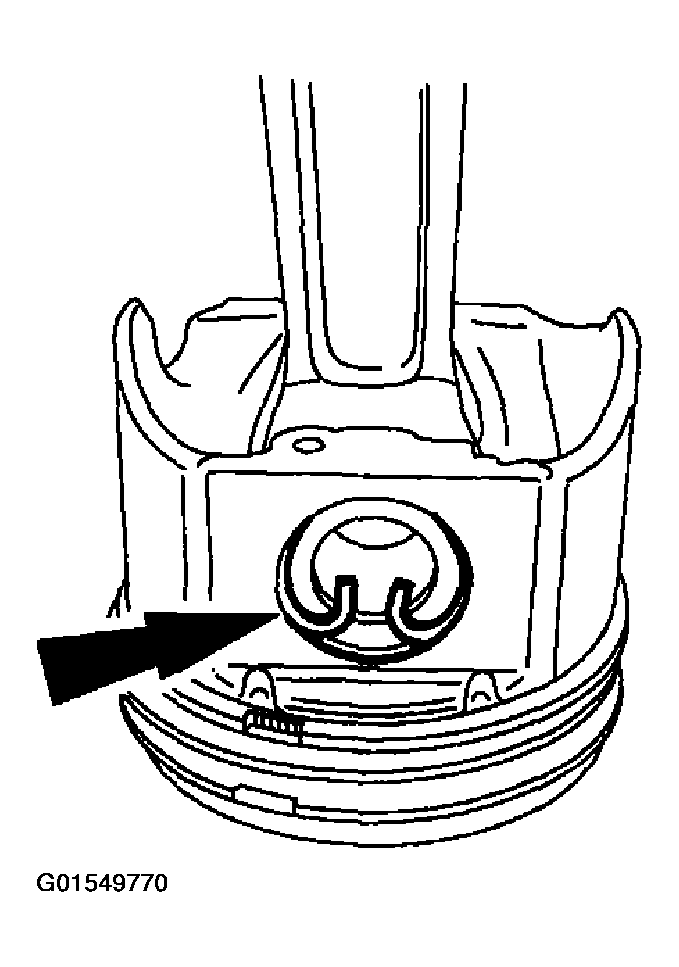

Fig 1: Identifying Piston Pin Retainers
Courtesy of FORD MOTOR CO.
Remove the connecting rod.
NOTE: The piston pins are a floating type piston pin and should not require a press to remove or install them.
1. Remove the piston pin.
2. Remove the connecting rod.

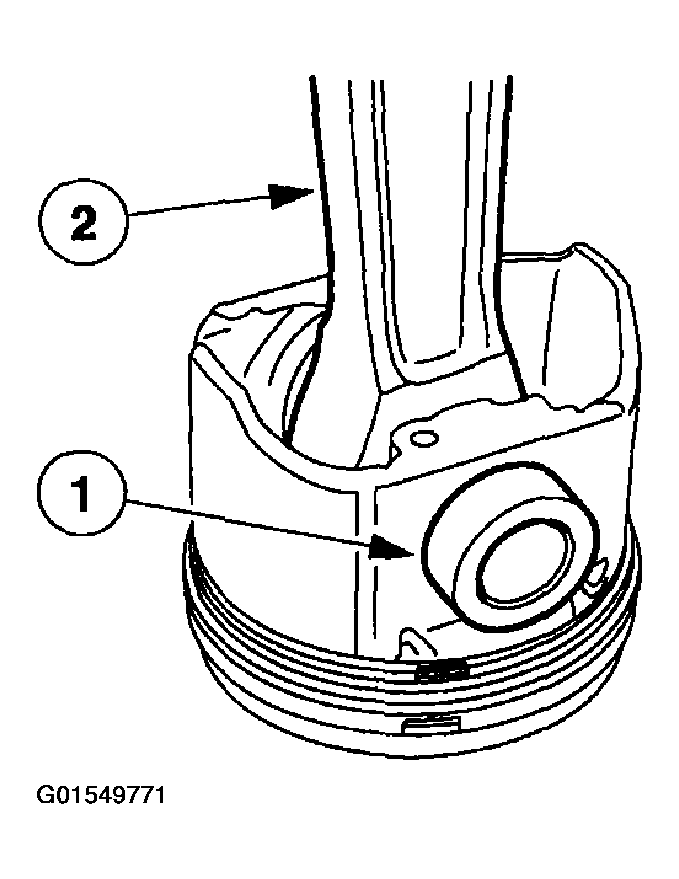

Fig 2: Removing Piston Pin & Connecting Rod
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
