Pinpoint Test A: No Communication With Stability Assist Module

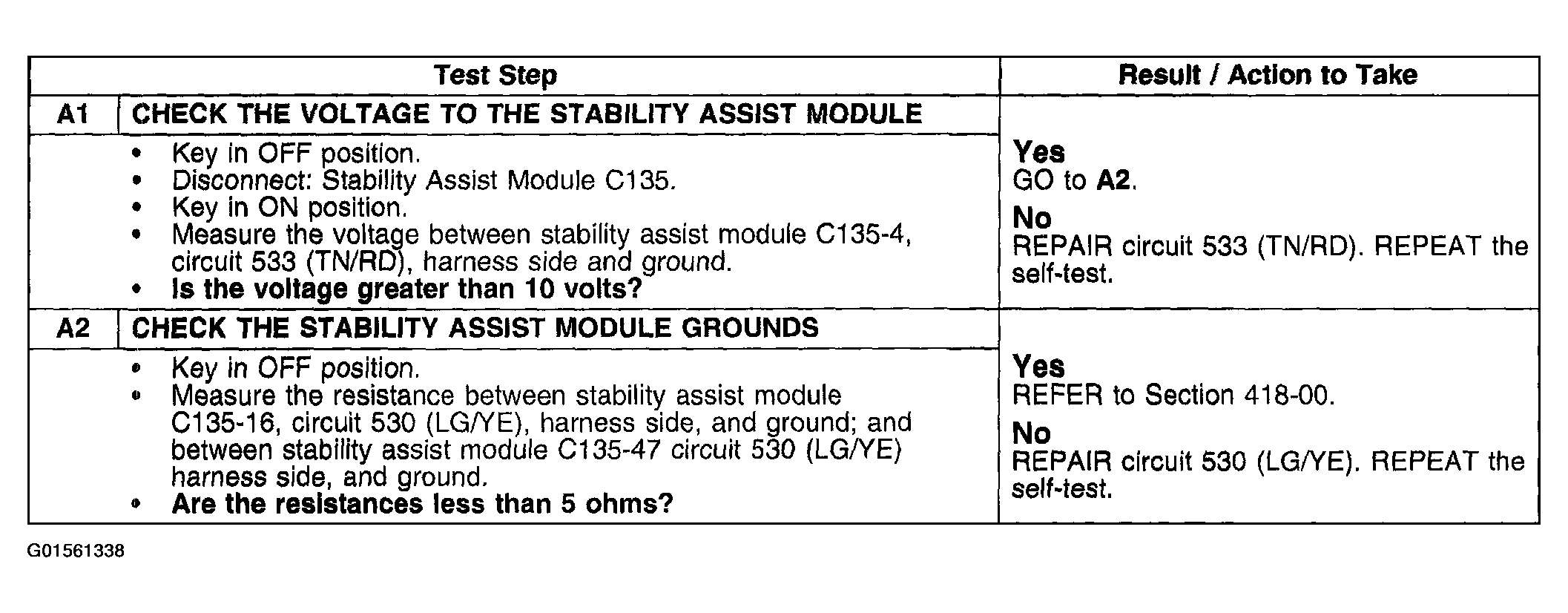

Fig 1: Pinpoint Test A: No Communication With Stability Assist Module
G01561338Courtesy of FORD MOTOR CO.
