Pinpoint Test G: No Communication With The Dual/Electronic Automatic Temperature Control Module

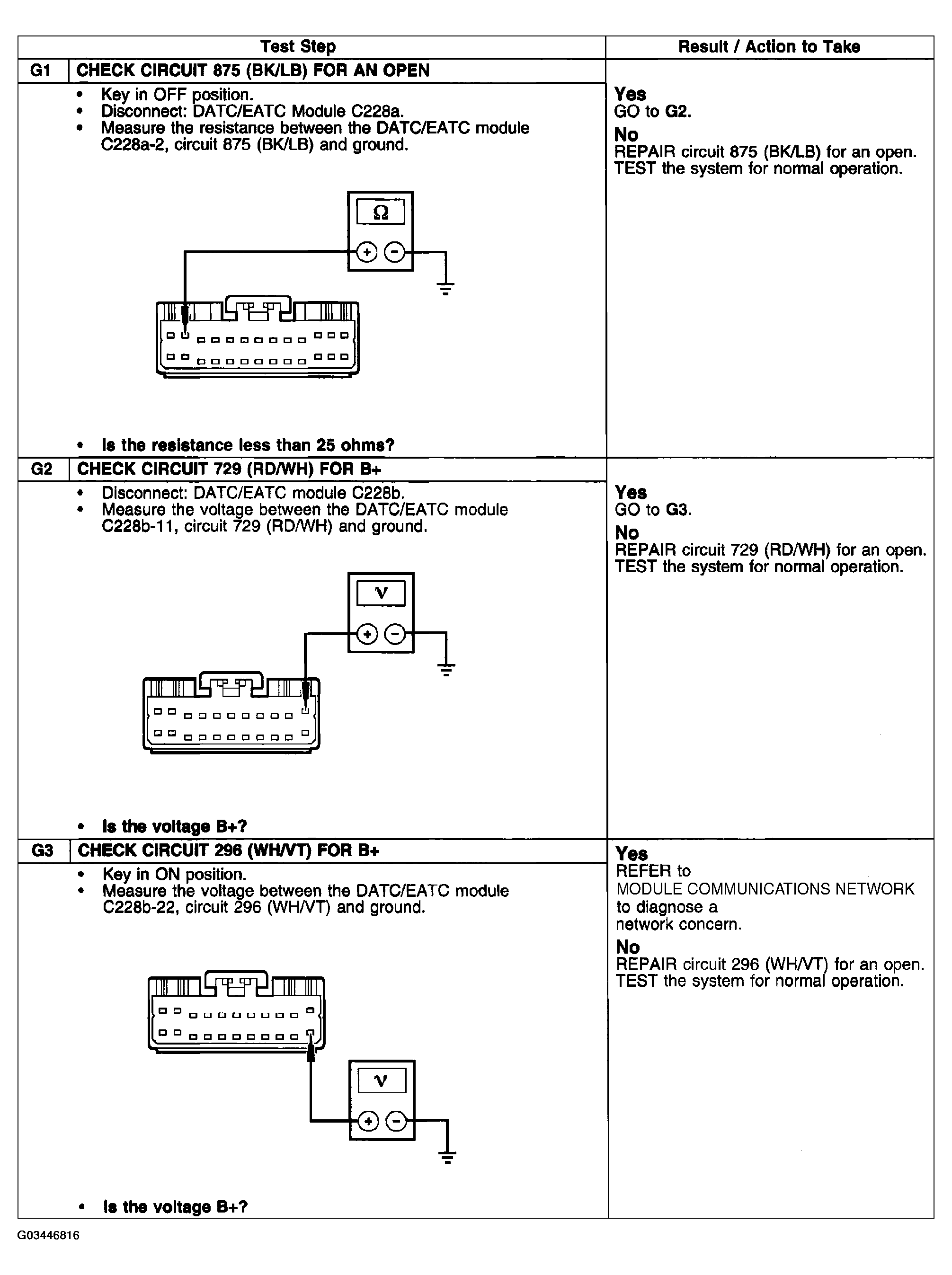

Fig 1: Pinpoint Test G: No Communication With Dual/Electronic Automatic Temperature Control Module Step (G1 To G3)
G03446816Courtesy of FORD MOTOR CO.
