Pinpoint Test A: Electronic Shift Functional Test

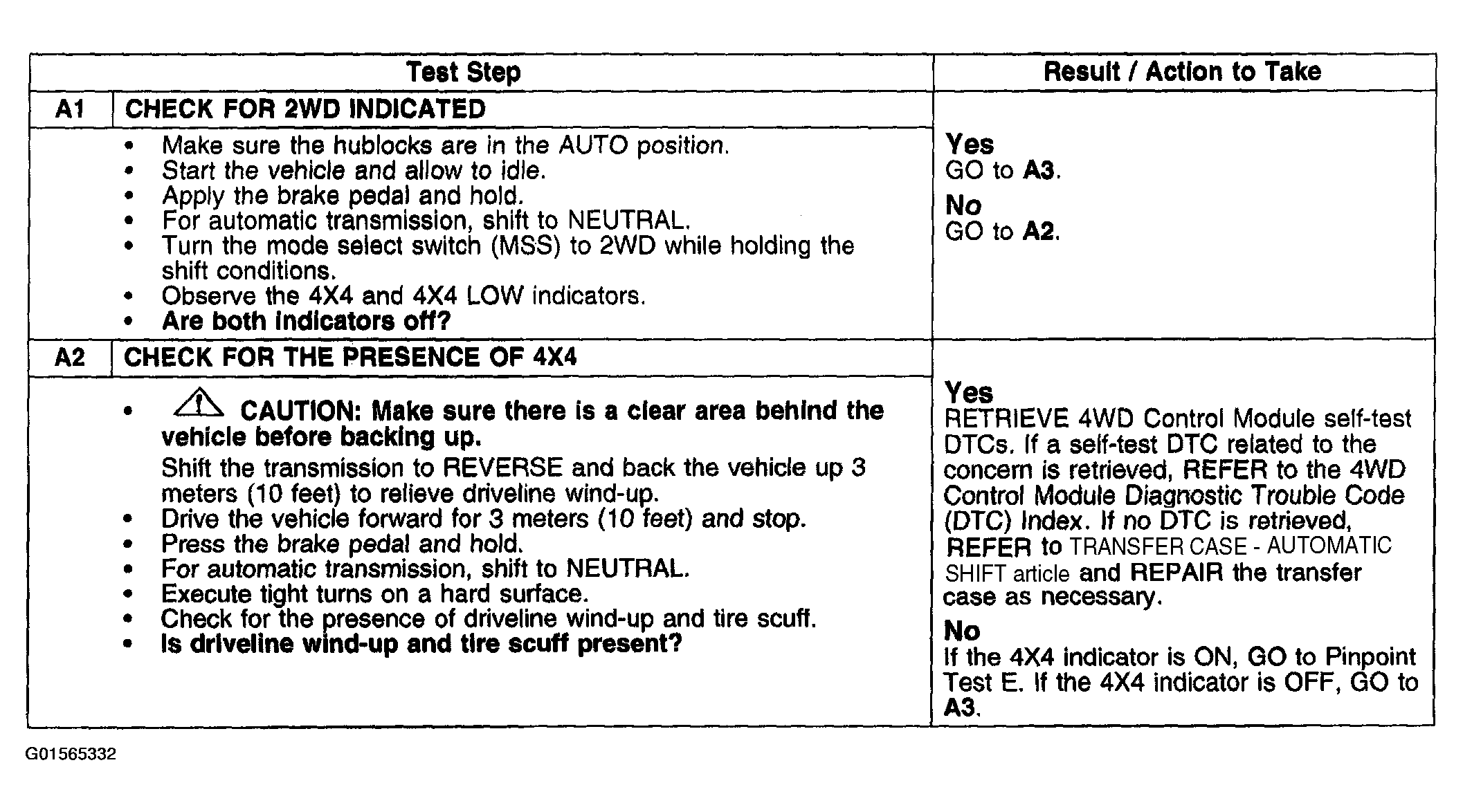

Fig 1: Pinpoint Test A Chart - Electronic Shift Functional Test (A1-A2)

Courtesy of FORD MOTOR CO.

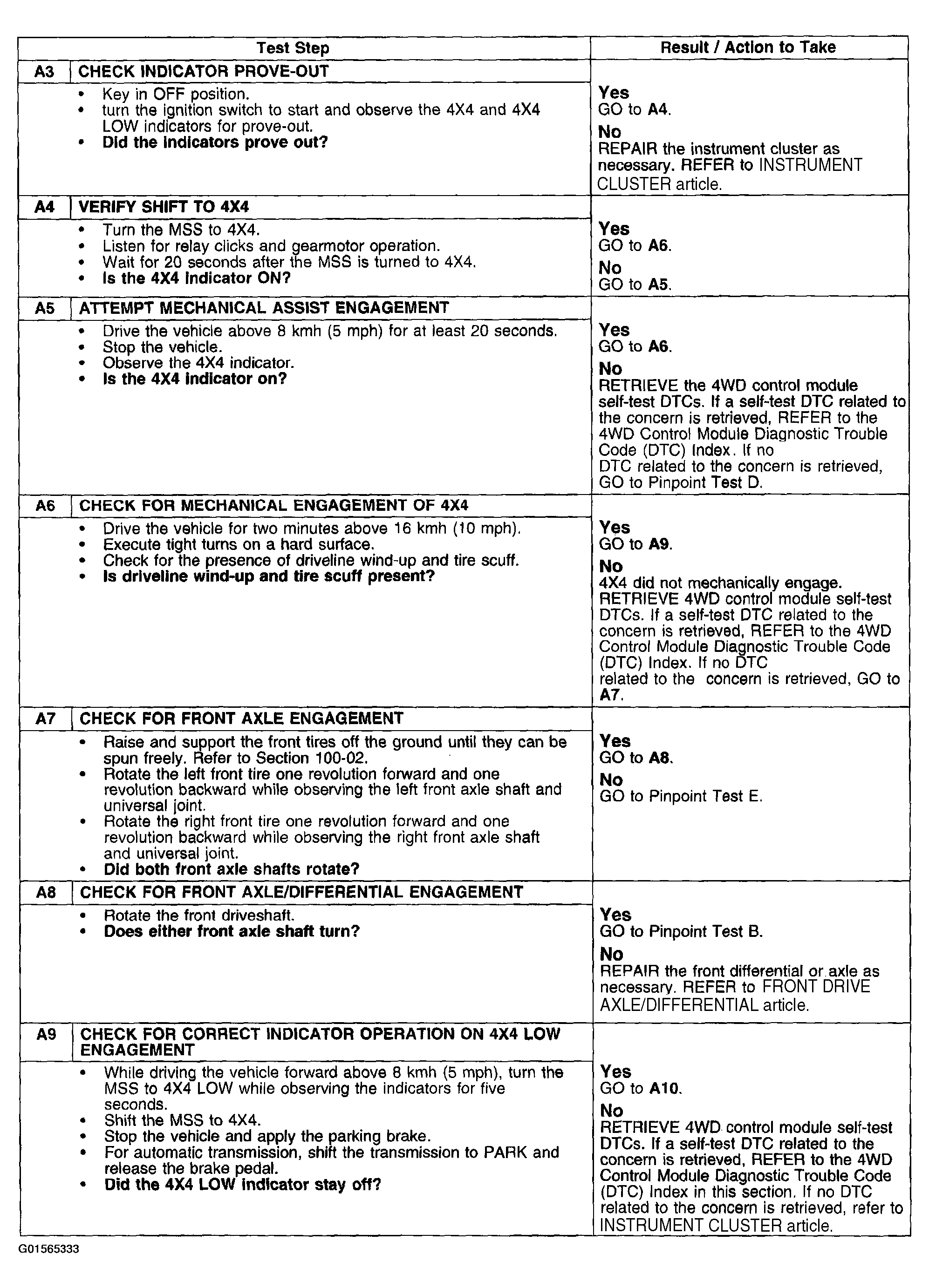

Fig 2: Pinpoint Test A Chart - Electronic Shift Functional Test (A3-A9)

Courtesy of FORD MOTOR CO.

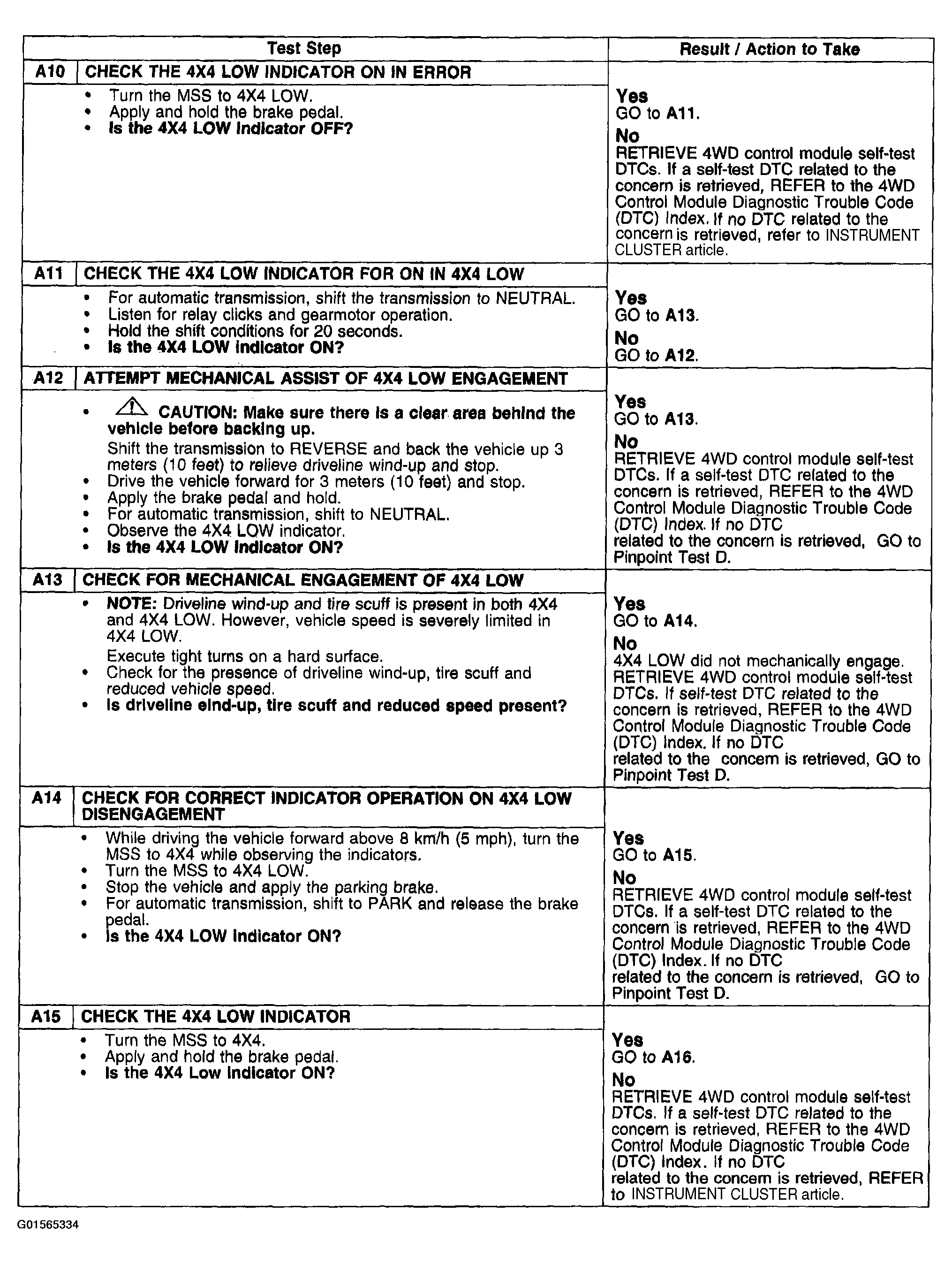

Fig 3: Pinpoint Test A Chart - Electronic Shift Functional Test (A10-A15)

Courtesy of FORD MOTOR CO.

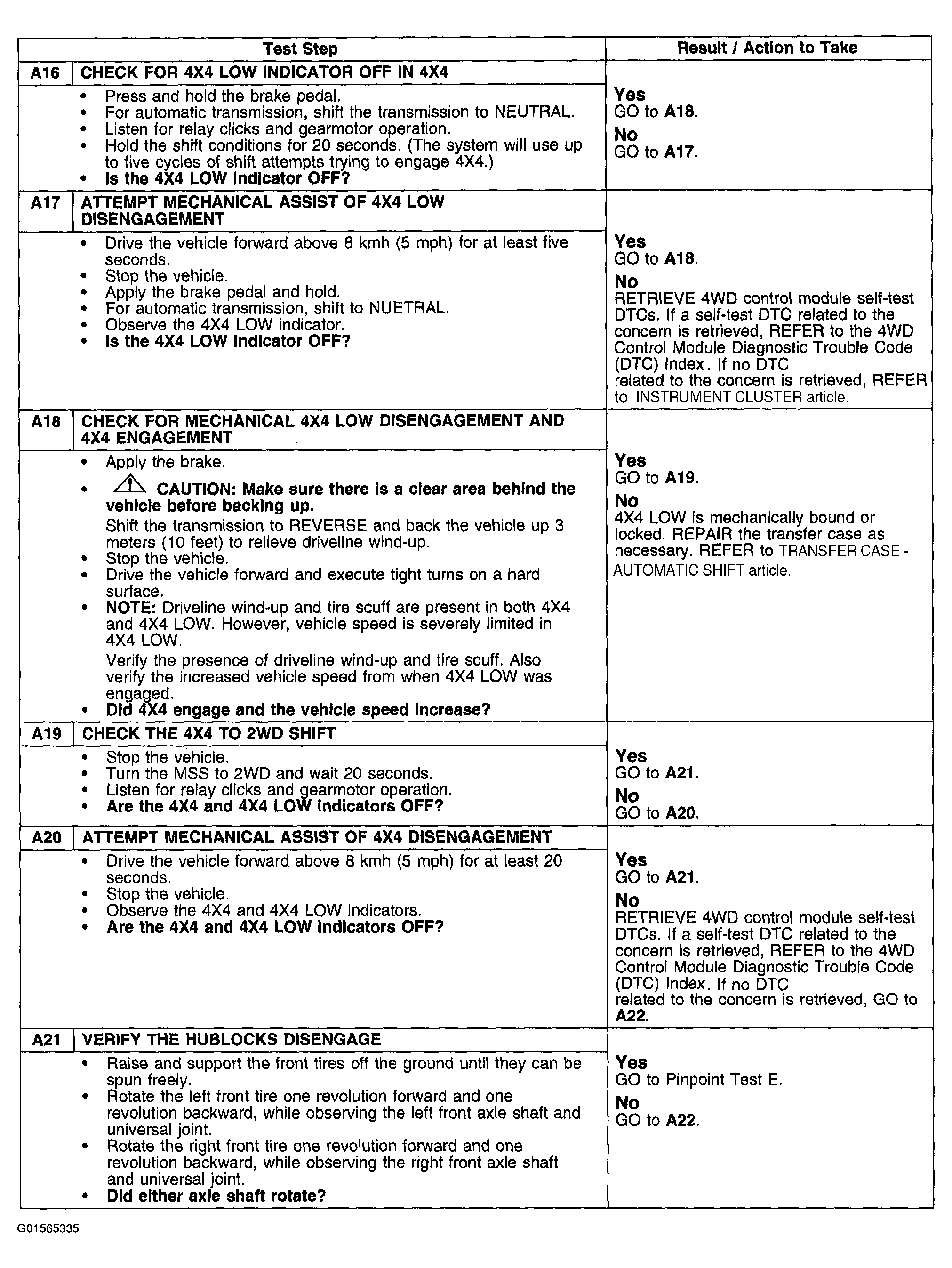

Fig 4: Pinpoint Test A Chart - Electronic Shift Functional Test (A16-A21)

Courtesy of FORD MOTOR CO.

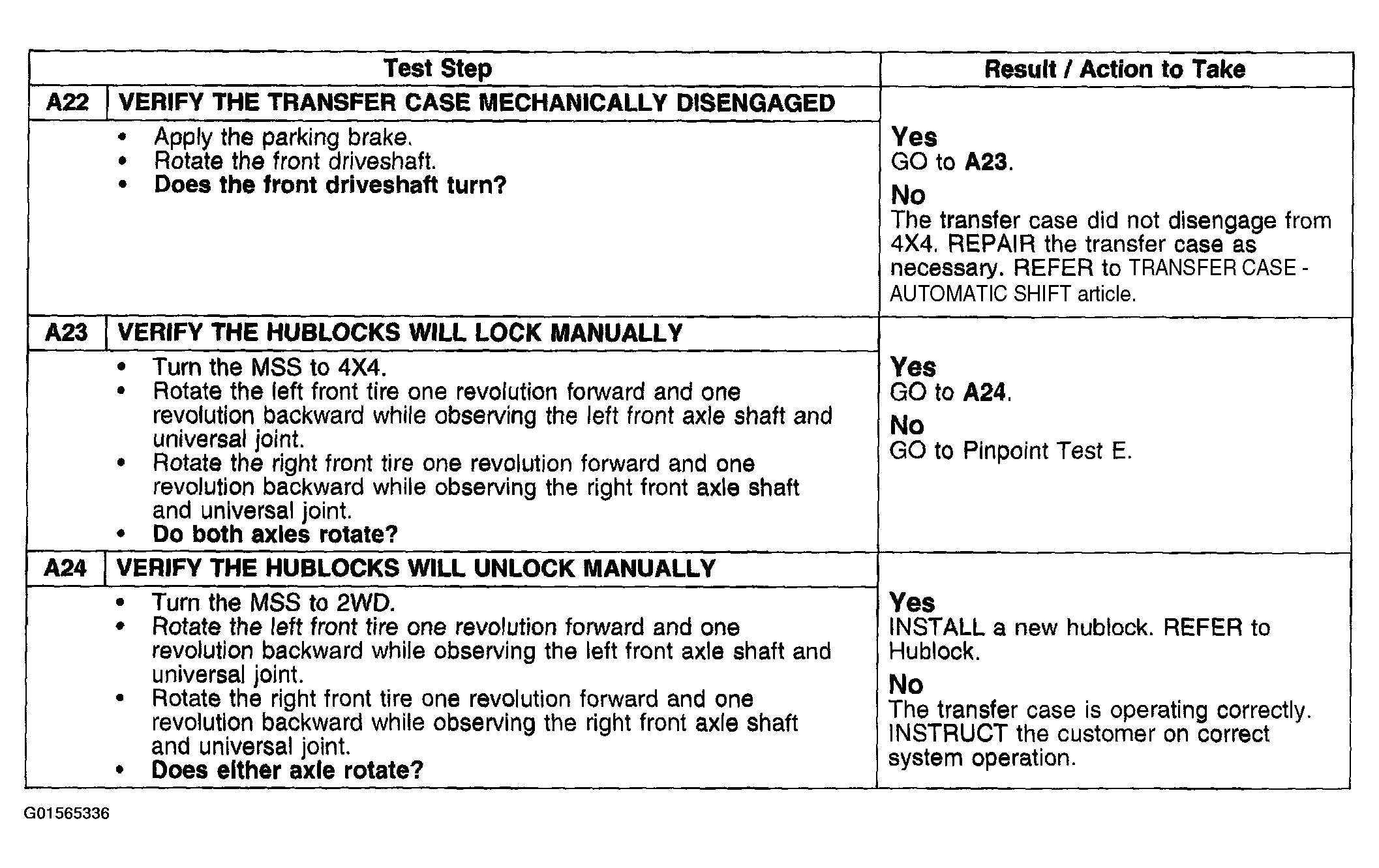

Fig 5: Pinpoint Test A Chart - Electronic Shift Functional Test (A22-A24)

Courtesy of FORD MOTOR CO.
