Band Clutch Application Specifications

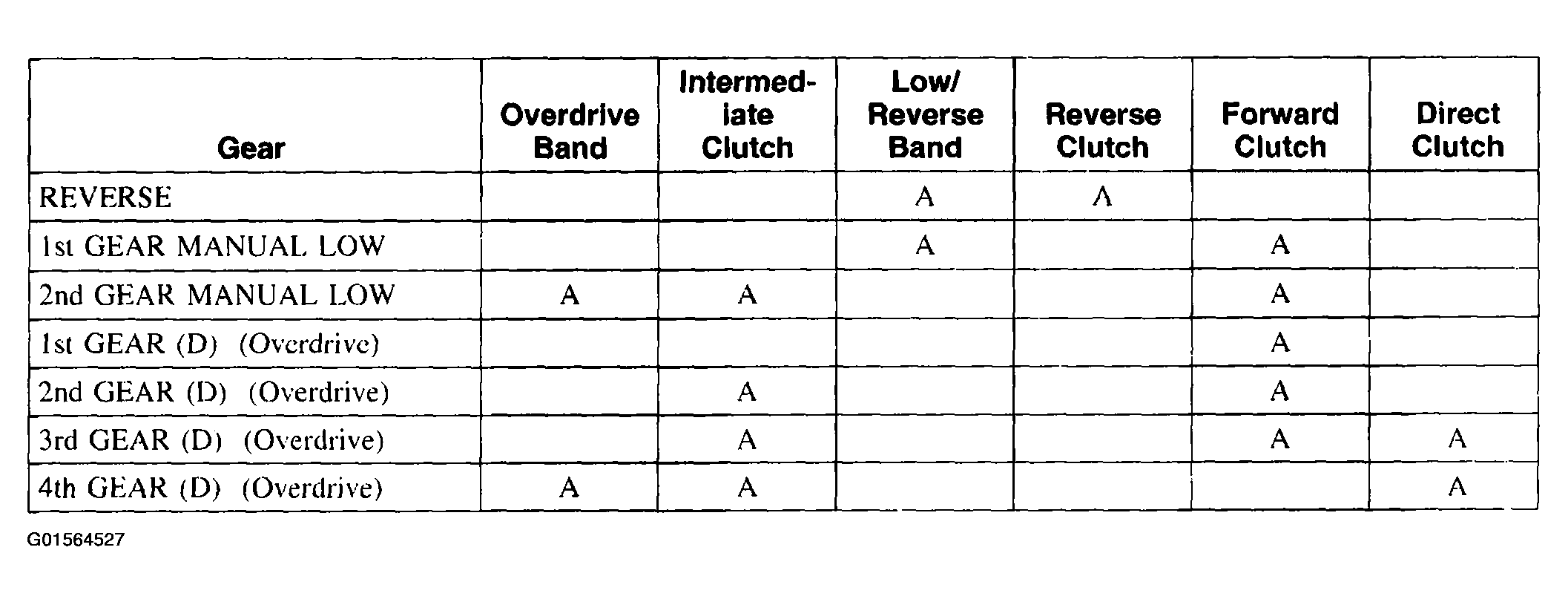

Fig 1: Band/Clutch Application Chart A

Courtesy of FORD MOTOR CO.

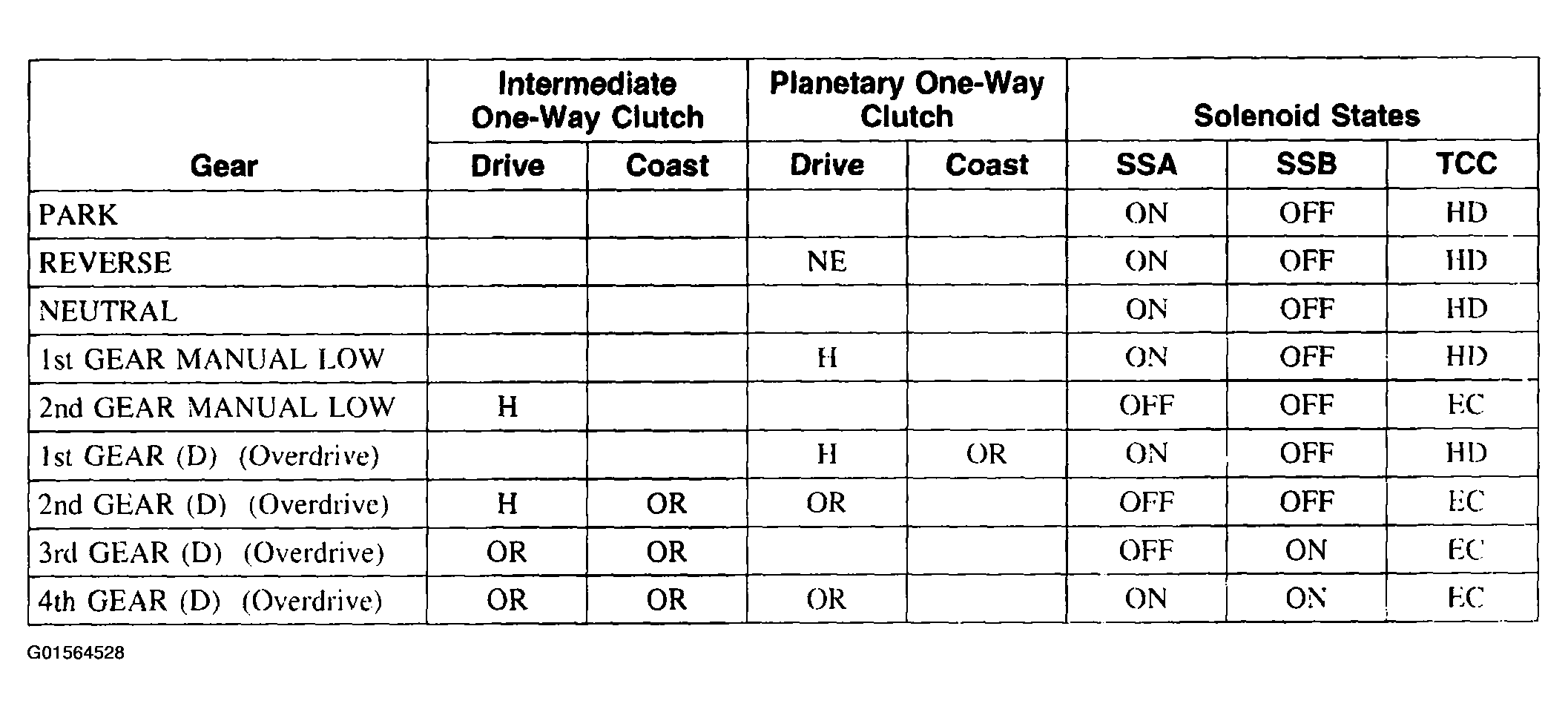

Fig 2: Band/Clutch Application Chart B

Courtesy of FORD MOTOR CO.

HD = Hydraulically Disabled

NE = No Effect

H = Hold

EC = Electronically Controlled

OR = Overrunning
