Plenum Chamber Control Components - DATC

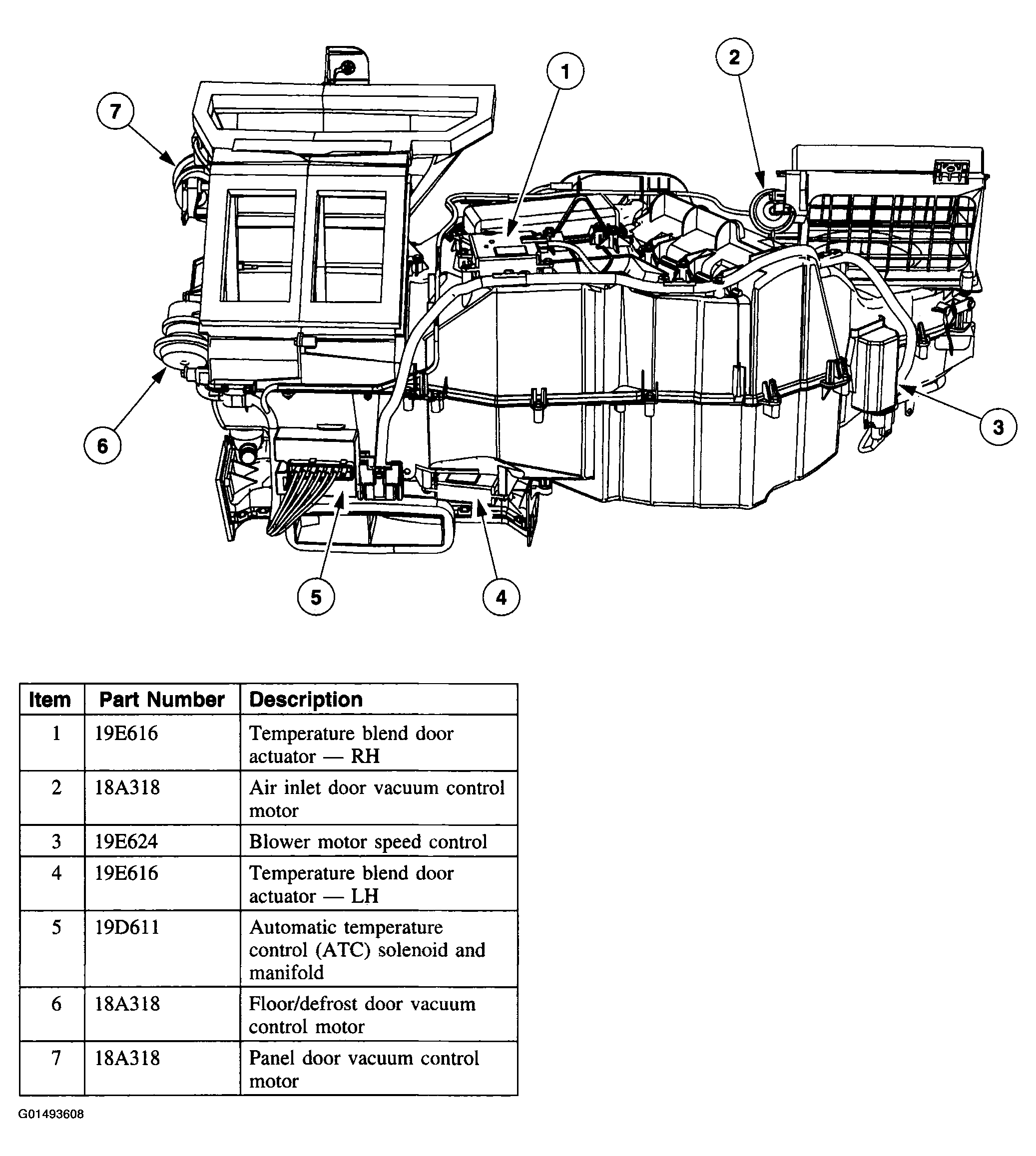

Fig 1: Identifying Plenum Chamber Control Components - DATC
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
