Disassembled Views

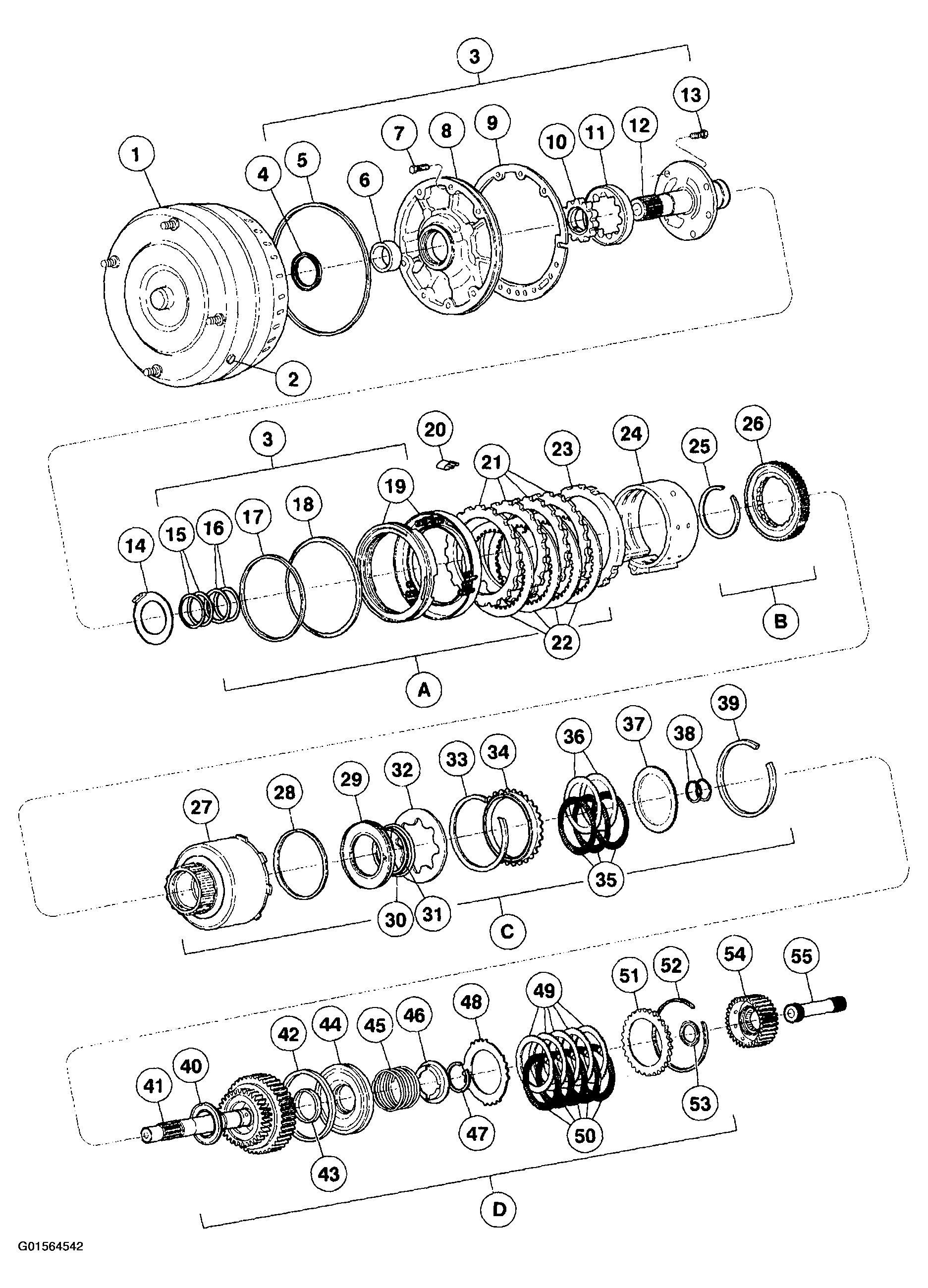

Fig 1: Exploded View Of Automatic Transmission System Components (1 Of 2)
Courtesy of FORD MOTOR CO.

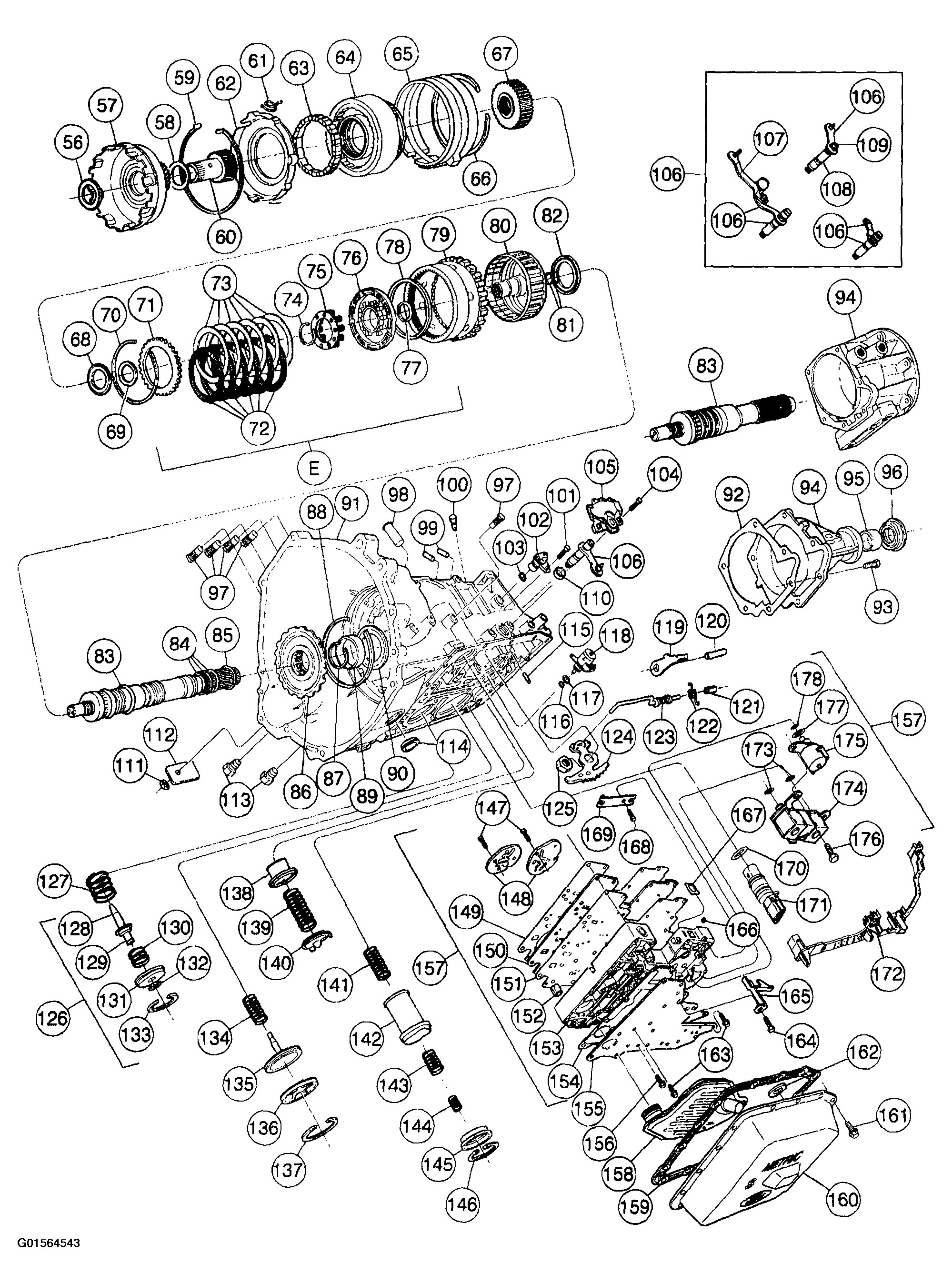

Fig 2: Exploded View Of Automatic Transmission System Components (2 Of 2)
Courtesy of FORD MOTOR CO.

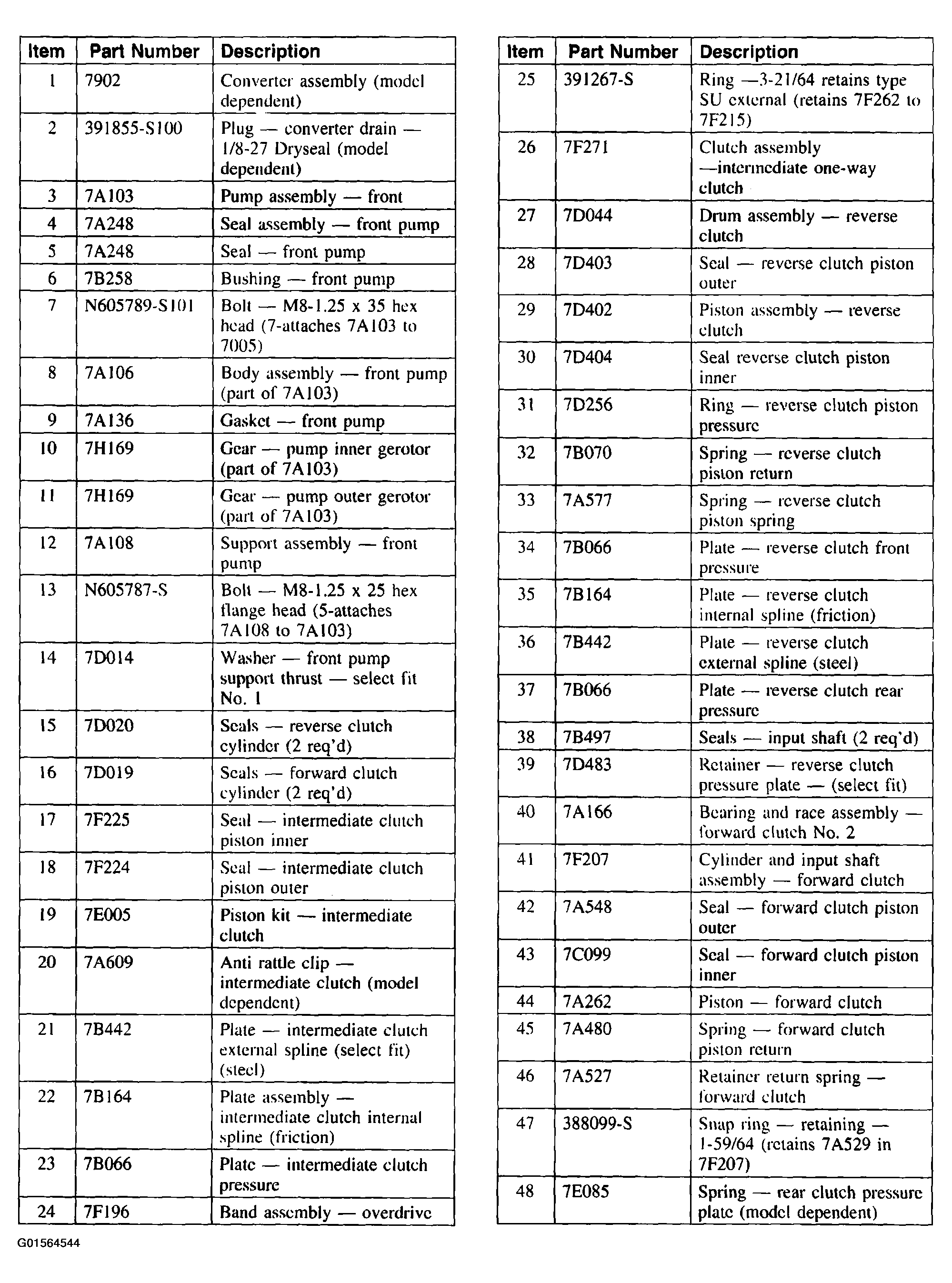

Fig 3: Automatic Transmission System Components Description Chart (1 Of 4)
Courtesy of FORD MOTOR CO.

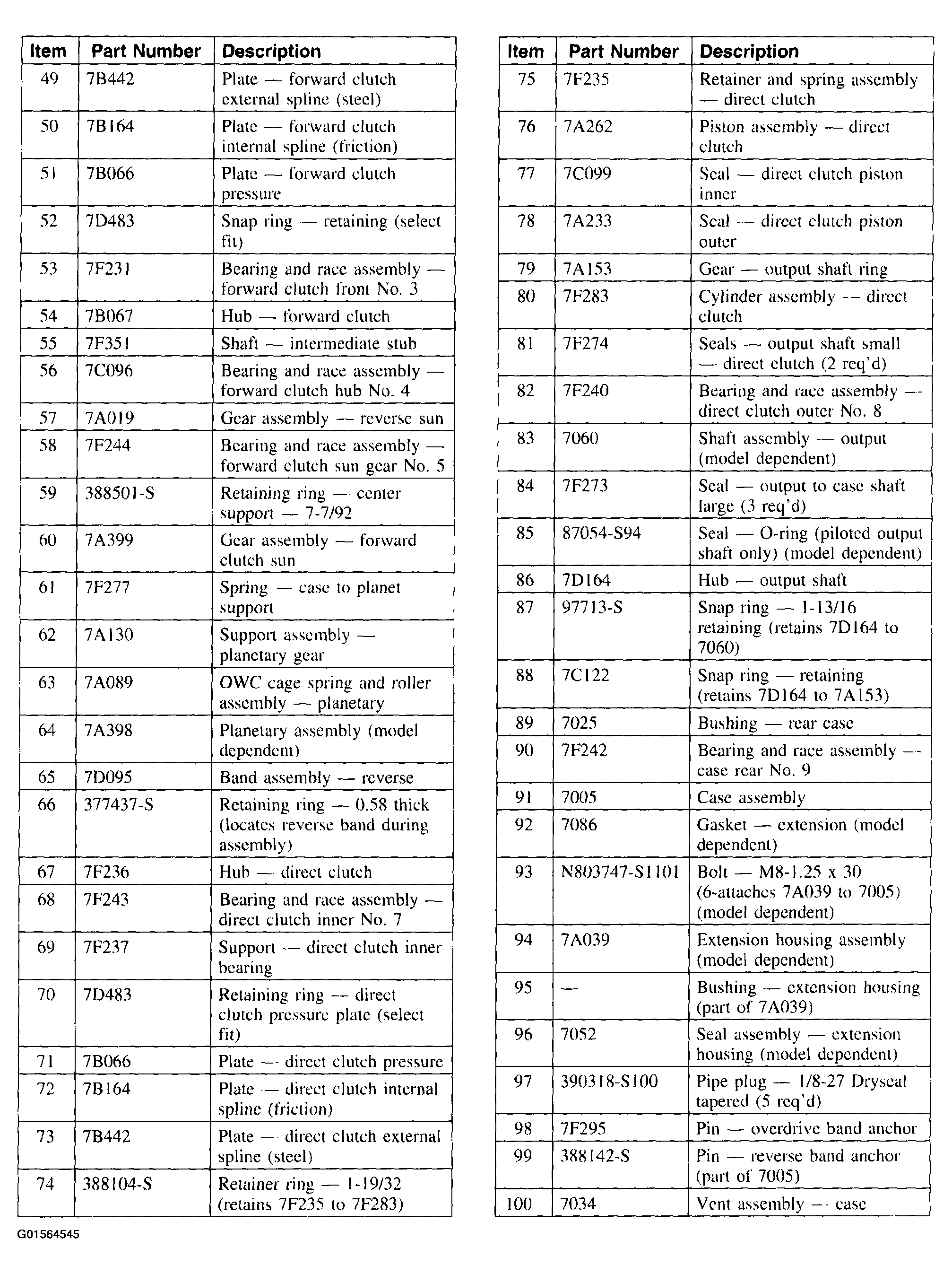

Fig 4: Automatic Transmission System Components Description Chart (2 Of 4)
Courtesy of FORD MOTOR CO.

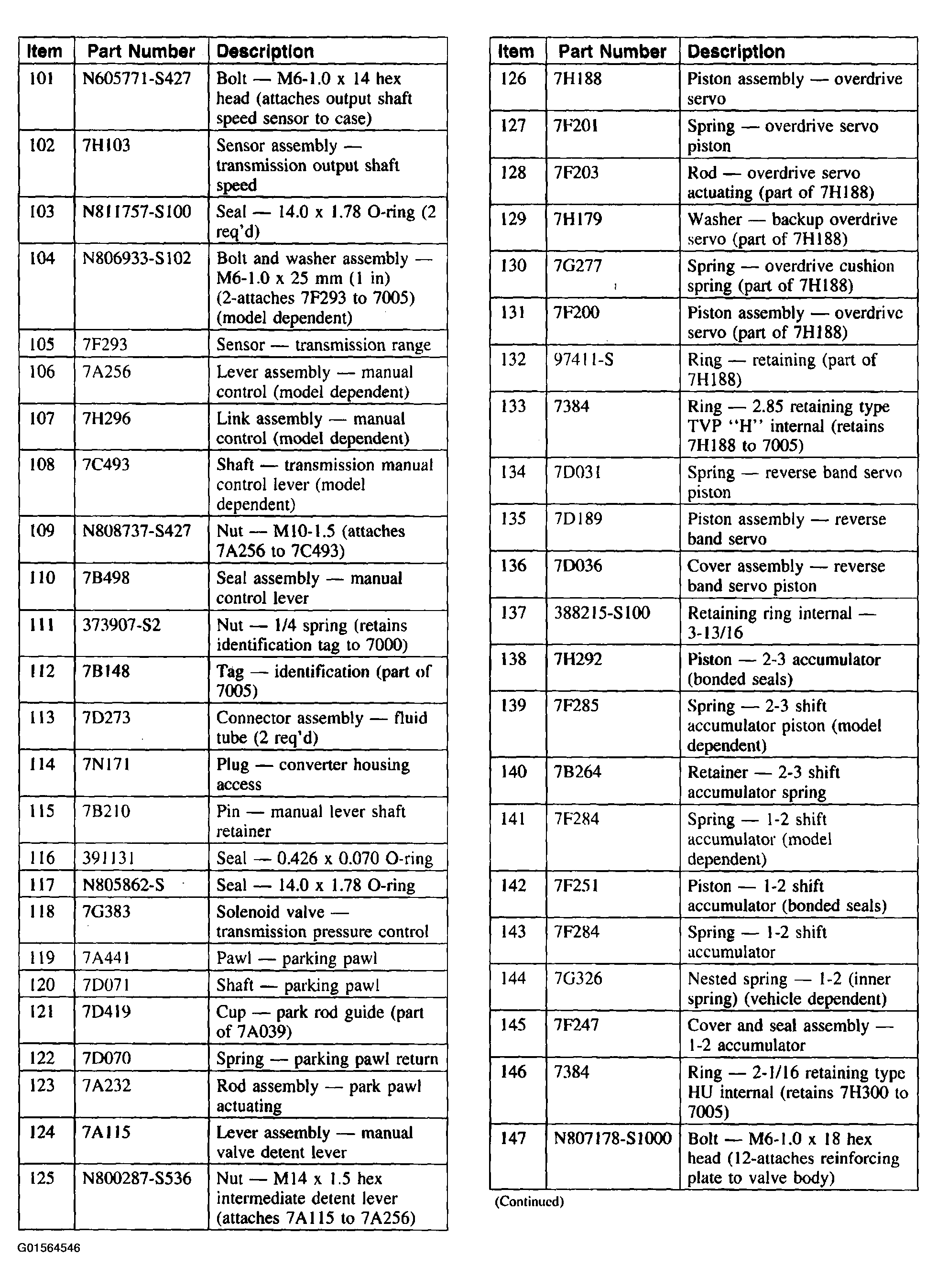

Fig 5: Automatic Transmission System Components Description Chart (3 Of 4)
Courtesy of FORD MOTOR CO.

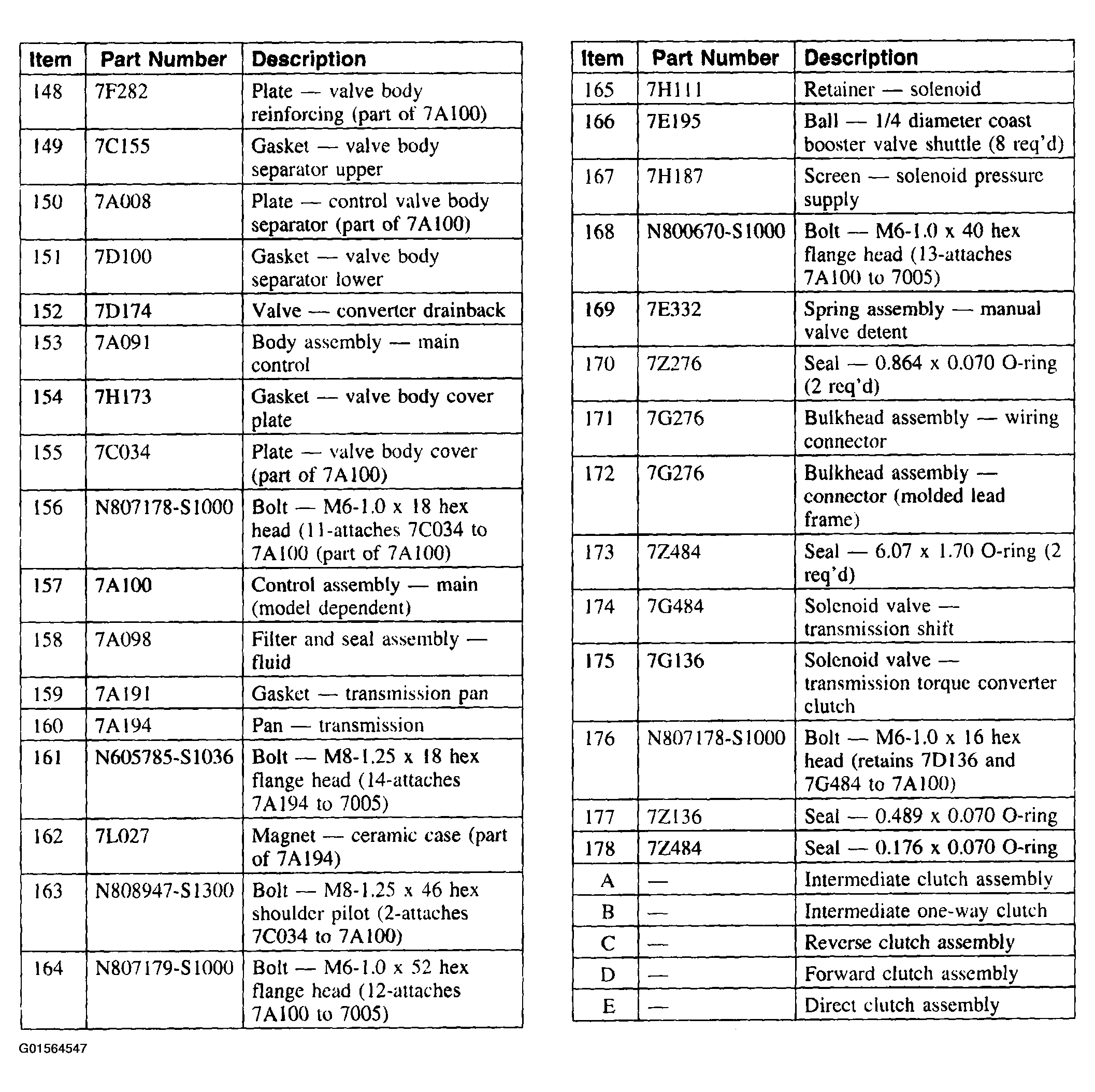

Fig 6: Automatic Transmission System Components Description Chart (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
