Main Control

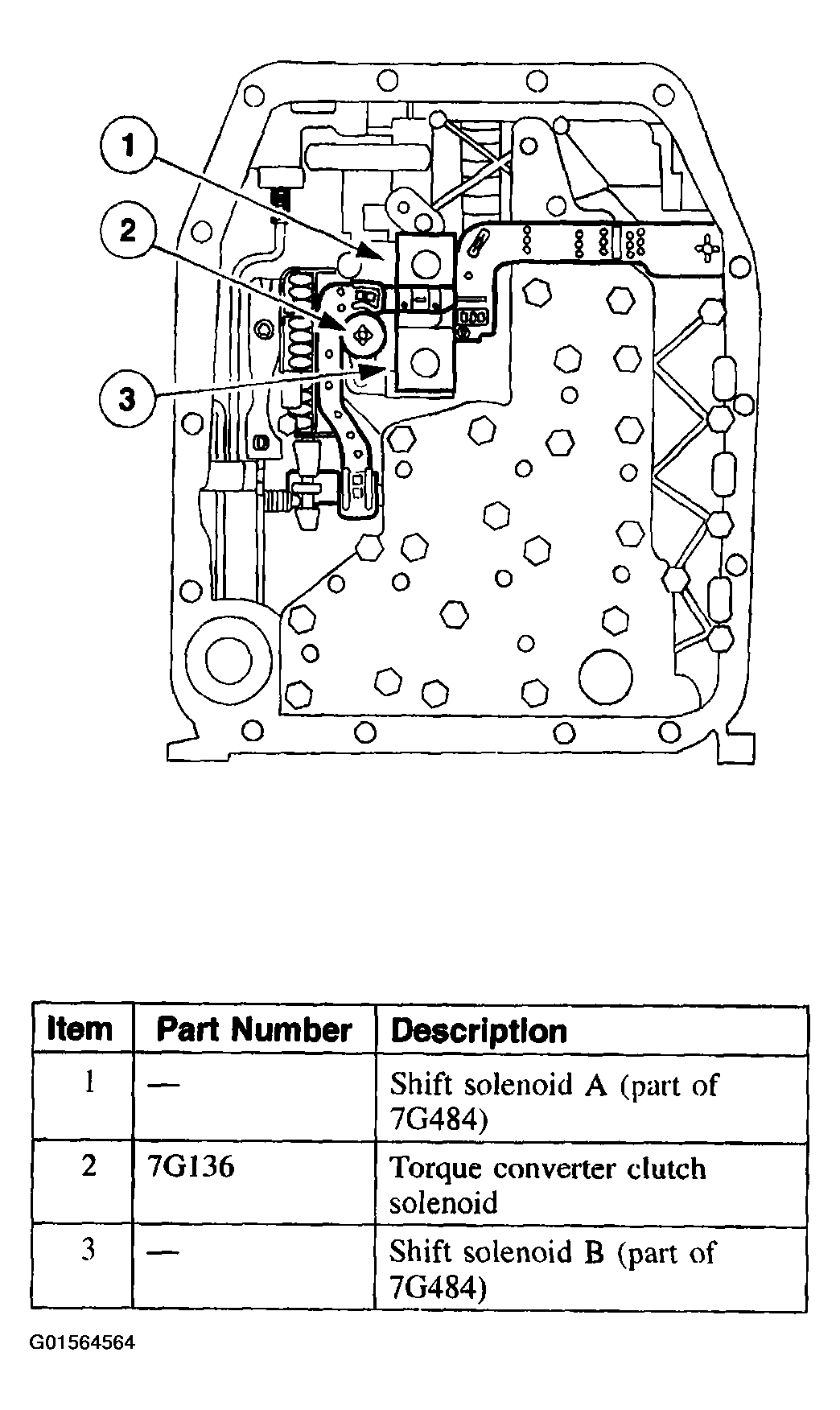

Fig 1: Identifying Main Control And Parts Description Chart

Courtesy of FORD MOTOR CO.

The main control valve body houses three electronic solenoids:

• two shift solenoids
• one torque converter clutch solenoid (TCC solenoid)
