Main Components And Functions

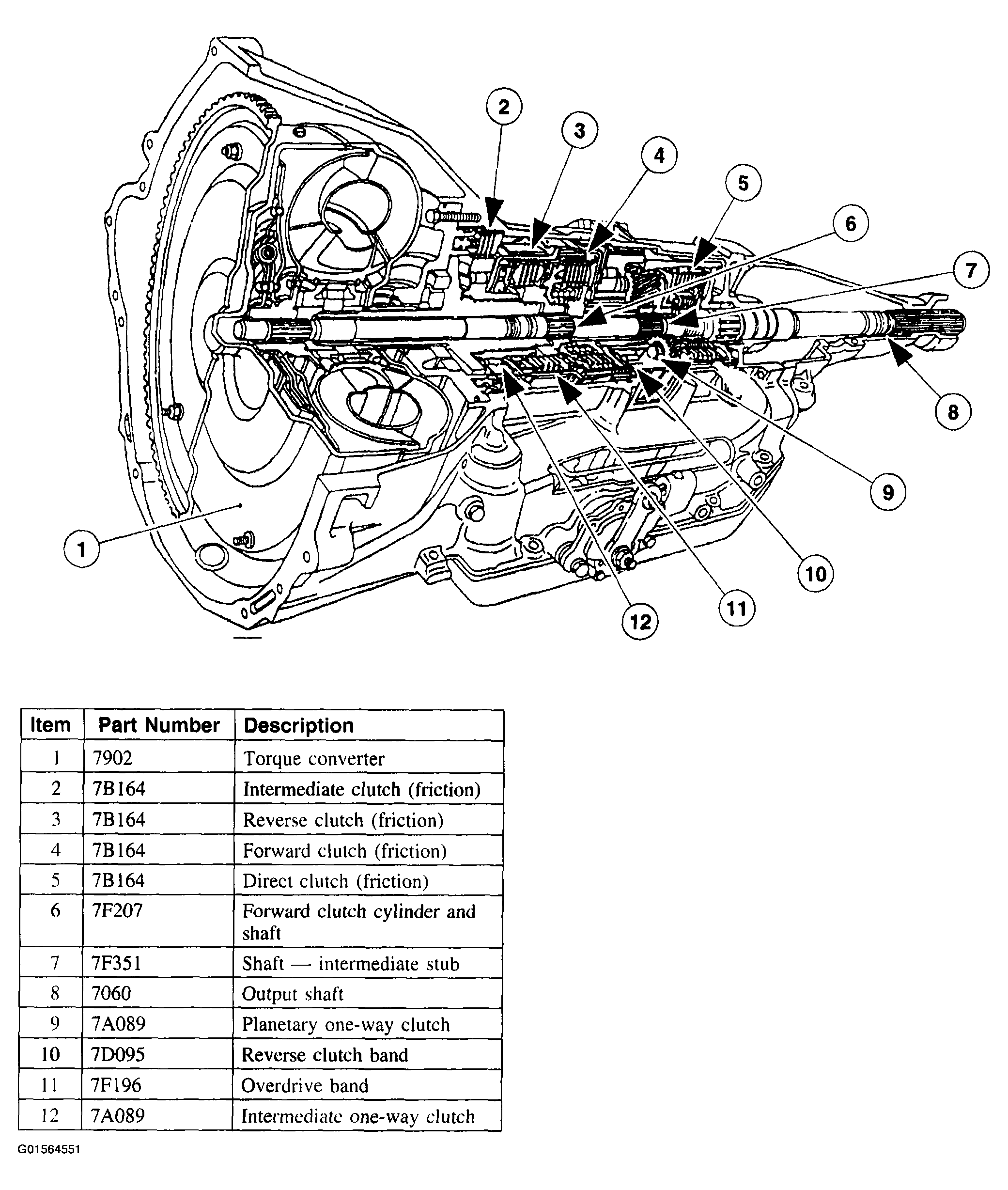

Fig 1: Locating Transmission Main Components (Cross Sectional View) And Item Description Chart
G01564551Courtesy of FORD MOTOR CO.
