Forward Clutch Cylinder: Notes

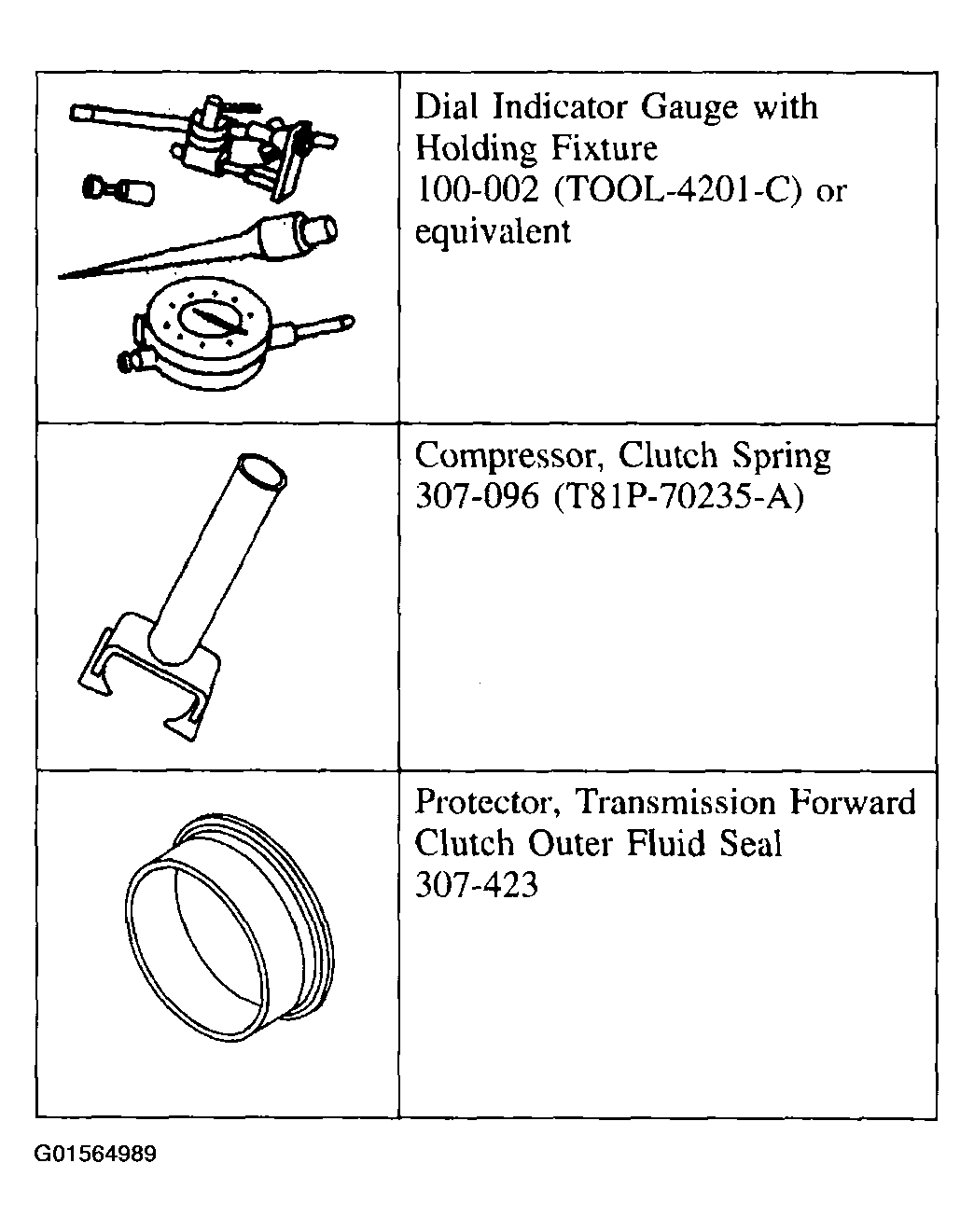

Fig 1: Identifying Special Tools
G01564989Courtesy of FORD MOTOR CO.

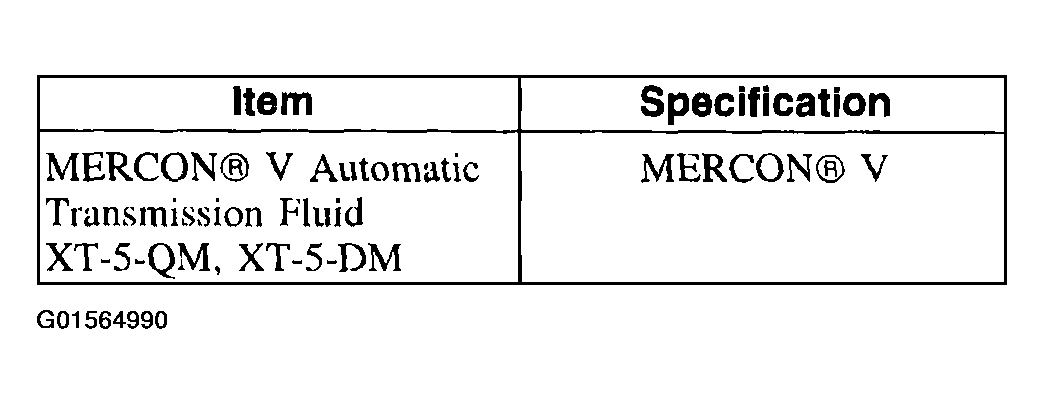

Fig 2: Identifying Material Specifications
G01564990Courtesy of FORD MOTOR CO.

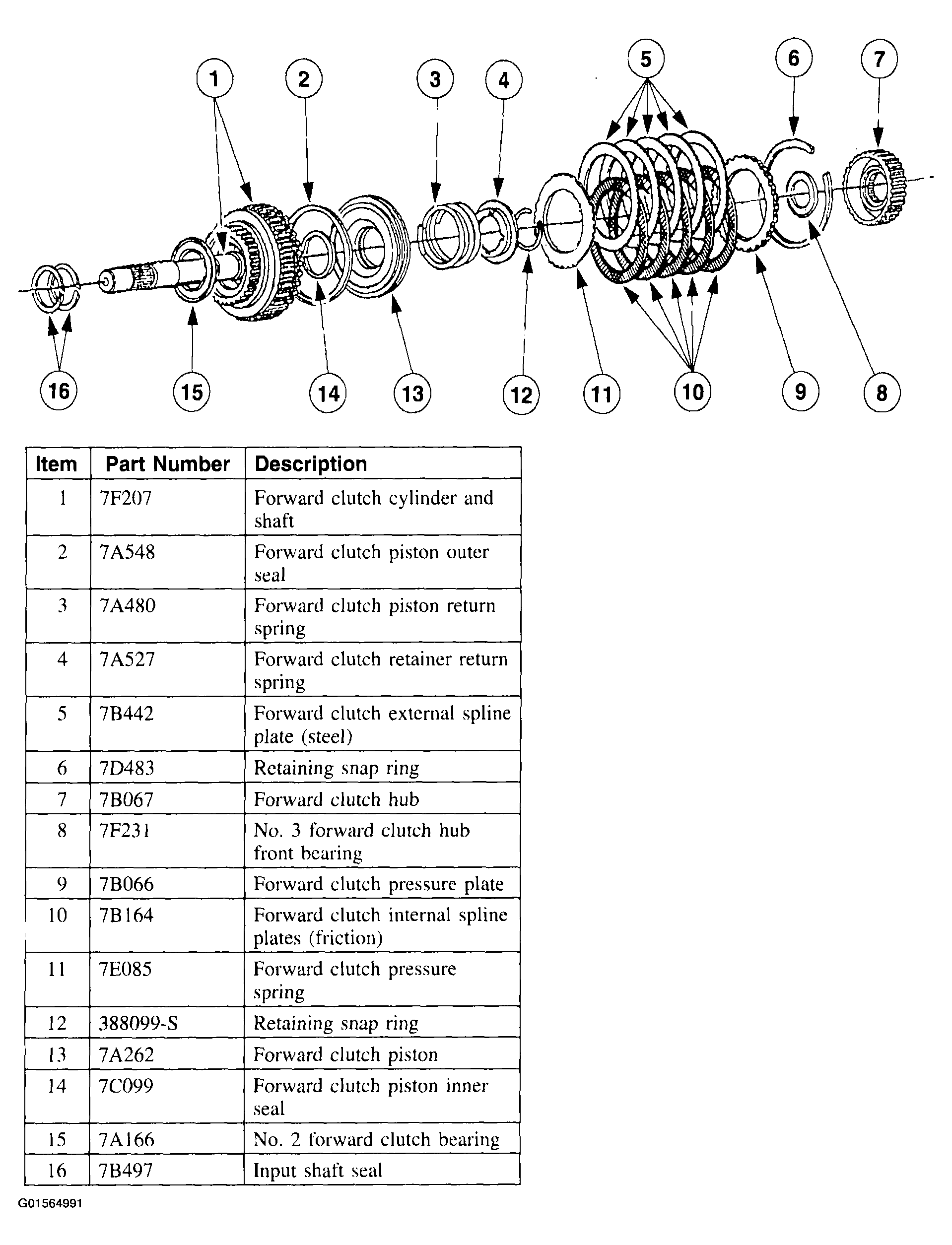

Fig 3: Exploded View Of Forward Clutch Components And Parts Description Chart
G01564991Courtesy of FORD MOTOR CO.
