Planetary Gear Support Assembly And Planetary One-Way Clutch: Notes

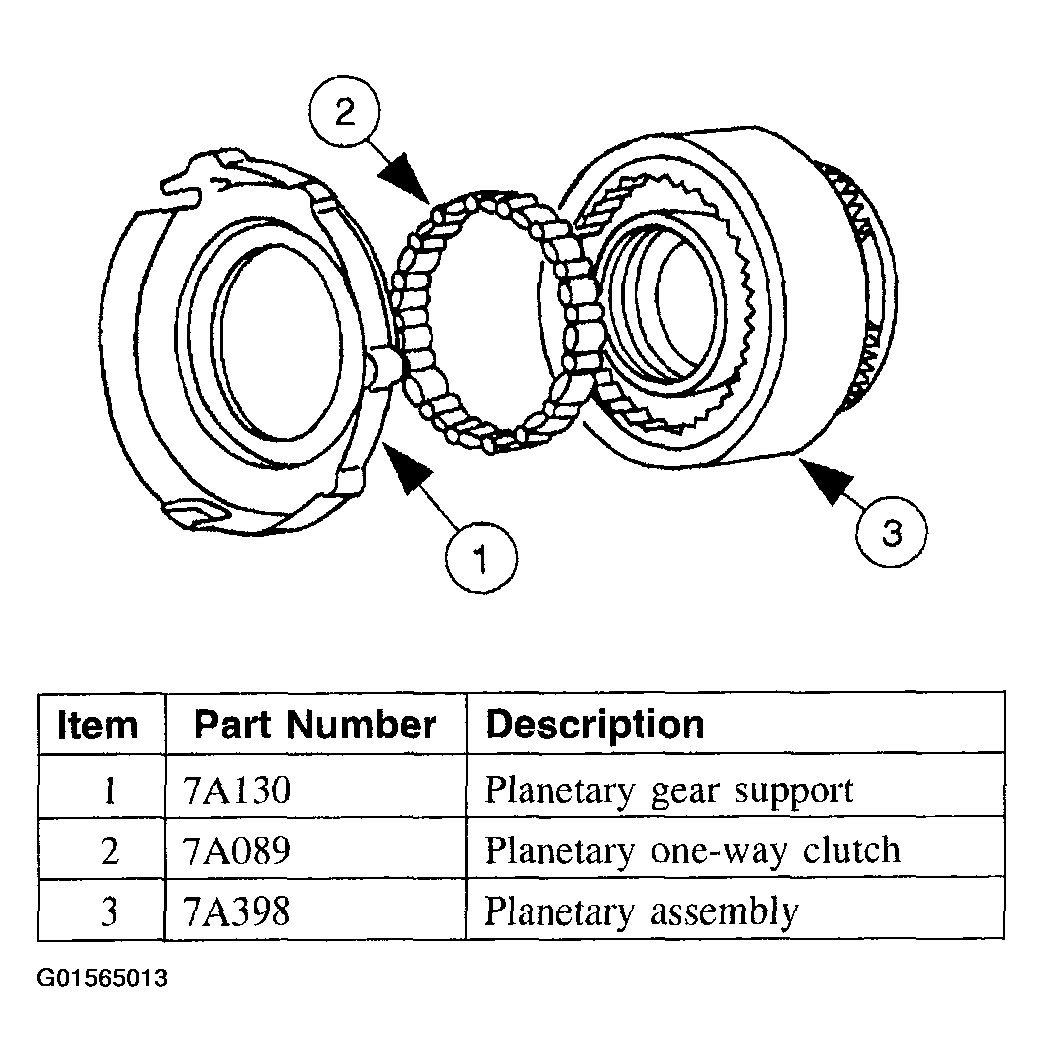

Fig 1: Identifying Planetary Gear Support Assembly And Planetary One-Way Clutch Components And Parts Description Chart
G01565013Courtesy of FORD MOTOR CO.
